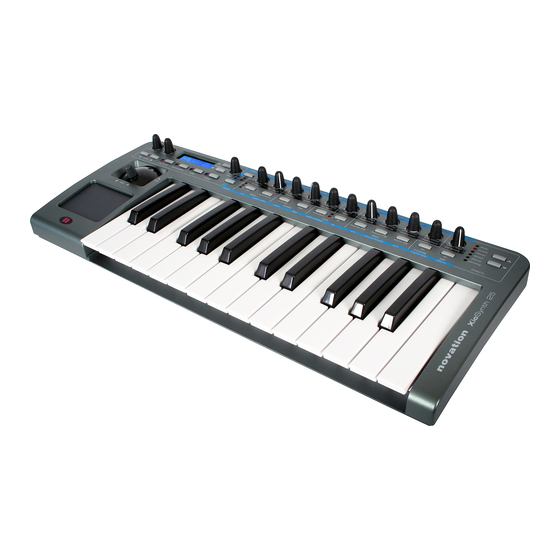

What is the Xio
?
The Xio is all you need with or without a computer to record, synthesize, MIDI control
and process effects for performing or studio use. In one mode, it's a standalone synth
that works separately from the computer if desired (powering from batteries or an
external power supply) or powers over USB when connected, and in another mode it's
a MIDI controller, where its knobs, buttons, Xpression pad and stick can all be used to
tweak software or additional hardware parameters. Furthermore, you can now utilise
the onboard synth whilst MIDI controlling.
In both modes, the keyboard also functions as a 2 In/2 Out USB audio interface,
for streaming audio from the computer directly to connected speakers or an amp,
or for recording a microphone or line signal plugged into the rear panel. Alternatively,
in standalone mode without a computer, the keyboard also works as a miniature mixer,
for amplifying and blending a mic and line signal for recording or playback.
Getting Connected and Powering Up
If working with a computer then the Xio will power over USB, so the only action
to take is to connect the keyboard to the computer using the supplied cable. However,
batteries may want to be inserted if carrying out a mobile session or trying to conserve
laptop power. If this is the case, insert 6 AA-size batteries after removing the panel on
the rear of the keyboard.
An external power supply is also supplied, for an alternative
means of powering the keyboard if not connected over USB.
If using the keyboard in standalone mode, batteries or the
external PSU can be used as a source of power.
When the unit is connected and plugged in, the switch on
the rear of the keyboard should be set into the appropriate
position, as follows:
Xio powering up options
FA0089-02

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xio and is the answer not in the manual?

Questions and answers

Summary of Contents for Novation Xio

  • Page 1 What is the Xio ™ The Xio is all you need with or without a computer to record, synthesize, MIDI control and process effects for performing or studio use. In one mode, it’s a standalone synth that works separately from the computer if desired (powering from batteries or an external power supply) or powers over USB when connected, and in another mode it’s...
  • Page 2: Running Installers

    Running Installers The Xio is class compliant, so no drivers are required for the keyboard to work with PC or Mac. As such, the keyboard can simply be connected over USB for it to work as an audio interface and MIDI controller for your sequencer, without having to run any Installers.
  • Page 3: Playing/Editing The Onboard Synth

    To play the onboard synth using the sequencer, make sure the MIDI track in the sequencer is being sent to the Xio and that it is sending on MIDI channel 16 (the default MIDI channel for the onboard synth – set in the Synth Global Menu).
  • Page 4: Audio Recording And Playback

    Whilst in either mode, the Xio’s audio interfacing capabilities can be utilised. To record/playback audio to/from a sequencer, the Xio simply needs to be connected over USB and then set up as an audio interface within the sequencer preferences. Once done, active speakers or an amp connected to passive speakers can be connected to the Line Outputs on the rear of the Xio.
