Murphy Autostart AS731 Operating Instructions

Autostart AS731/AS732 Generator Controller
Operating Instructions
Please read the following information before operating. Before using this product, it is your responsibility to
ensure that it has been correctly installed by qualified mechanical and electrical technicians.
1. Introduction

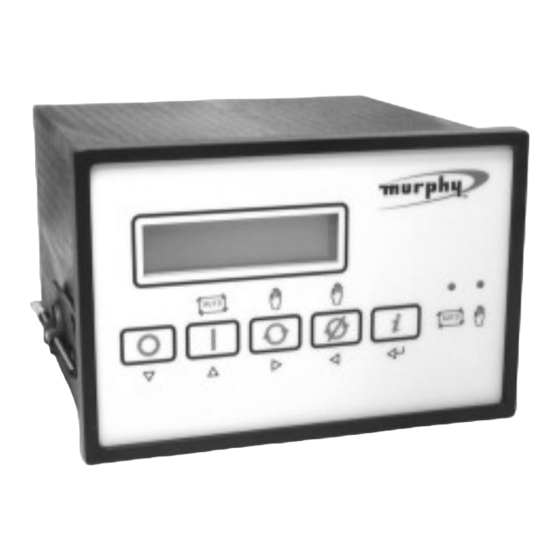

The Autostart AS731 and AS732 are full-function,
programmable controllers for automatic or manual
running of a standby generator. The modules include
comprehensive measurement and display of engine
and generator parameters, with automatic plant
protection and operator warning in the event of faults.
All units are fitted with an RS232 communication link
that allows remote configuration, monitoring and
control using Murphy PC software. AS732 units
additionally have RS485 MODBUS facility, allowing
communications with other AS732 units, or PLC,
SCADA and building management systems.
This document details the user operation of the AS731
and AS732. Further information on the specification,
electrical connection and set up may be found in the
following documents:-
Doc. ref. Title
ms6127 AS731 bulletin and technical spec.
ms6343 AS732 sales bulletin and technical spec.
mi6128 AS731/732 installation A: electrical connection
mi6129 AS731/732 installation B: programming
mi6131 AS731/732 and AS7CN PC comms software
2. Front facia and controls
As shown in the diagram right, the front facia contains a
liquid crystal display (LCD), two mode indicating LEDs
and 5 operator control keys.
2.1 Display
The 2 line by 16 character, backlit LCD provides
continuous information about the system status.
Automatically scrolled messages indicate operating
mode, engine status, generator parameters (e.g. VAC,
Hz, Amps), timer progress and fault conditions.
i
Press the key to manually scroll to additional system
information (see 2.3.4 below).
Examples of LCD messages are given in section 3.
