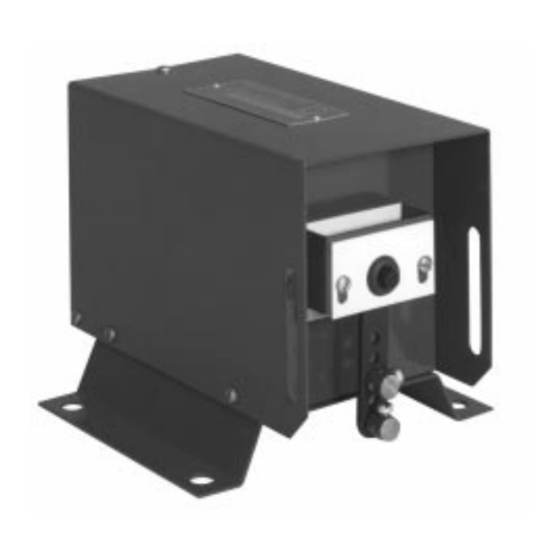

Murphy Engine Throttle Controller AT-67207 Specification Sheet

Engine Throttle Controller
MURPHYMATIC
Description
The AT-67207 is a completely reliable heavy duty device
developed specifically to automatically control engine
speed to meet system demand. Low current, high torque,
solid state switching and electronic clutch make it ideal for
all automatic and semiautomatic engine systems. Used
with the appropriate Murphy SWICHGAGE
pressure, level and load can be maintained. Check with our
engineers for help with other applications where speed
control can improve your system.
Applications
Pressure
• City Water Systems.
• Water Flood Injection.
• Sprinkler Lateral Changes.
• Make-up if a "Gang Pump" stops.
• Multiple Hose-reel Irrigation Systems.
Level
• Water or oil storage tanks.
• Waterflood tanks.
• Sewer disposal systems.
• Flood control catch basins.
Temperature
• Multi-engine cooling systems.
• Air conditioned chilled water systems.
Engine load
Empty or fill reservoirs with a lower horsepower engine—
fast when head is high—slow when head is low.
Fully adjustable stepper kit
Meters signal in adjustable pulses. Prevents surging on
critical applications.
® AT-67207
® , near constant
•
Automatically adjusts
engine speed to meet
demands of: pressure,
level, load and temperature.
•
Speed changes made slowly
and smoothly.
•
Saves fuel, engine wear,
horsepower and labor.
•
Perfect for warm-up and
cool-down on automated
systems.
Specifications
Voltage: 12 VDC or 24 VDC, positive or
negative ground (specify).
Current: 500 mA (1/2 amp).
Torque: 25 inch pounds.
Sealed limit switches: Factory adjusted, controls maxi-
mum travel.
Linkage adjustment on lever arm—5 holes:
Adjusts travel: 1-3/16 in. (30 mm); 1-11/16 in. (43 mm);
2 in. (51 mm); 2-1/4 in. (57 mm) approximately.
Overall Dimensions: 7 in. (178 mm) D x 6 in. (152 mm) W
x 5 in. (127 mm) H.
Net Weight: 5 lb. (2.27 kg)
AT-7231B
Revised 02-98
Catalog Section 40
(00-02-0099)
