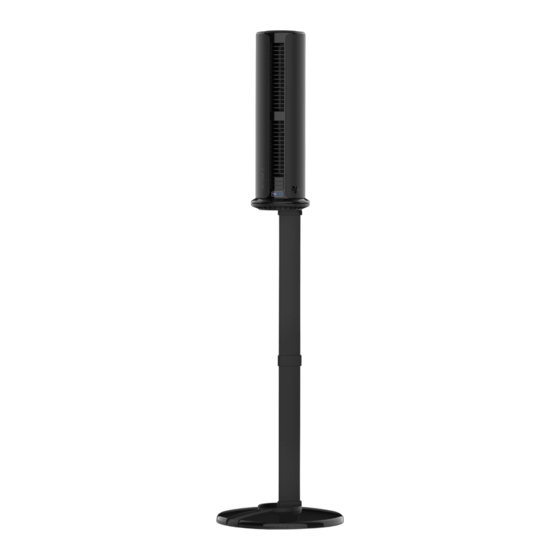

- Page 1 ATOM 2S AE OSCILLATING TOWER WITH STAND OWNER’S GUIDE GUÍA DEL PROPIETARIO DE LA TORRE OSCILANTE CON SOPORTE TOUR OSCILLANTE AVEC SUPPORT GUIDE DU PRO- PRIÉTAIRE vornado.com...
- Page 2 We expect If it is not, this product we will make to be perfect. it right. vornado.com 800.234.0604 help@vornado.com English...
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ..................4 Features ........................10 Getting Started ......................11 How to Use ......................... 16 Getting Connected ..................... 18 Using Alexa ......................... 19 Cleaning ........................21 Storage ........................22 Troubleshooting ......................23 Warranty ........................24 Español p. 26 Français p. -
Page 4: Important Safety Instructions
Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com to view, download and print the most current version of these instructions. INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States. - Page 5 INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following: - Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the product, damage the motor and/ or cause a fire. - No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources.
- Page 6 If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
- Page 7 Refer to the CLEANING instructions provided. - Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center. English...
- Page 8 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Contact Vornado Customer Service or dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 9 20cm between the radiator and your body. Supplier’s FCC Declaration of Conformity Unique Identifier: Vornado Model ATOM 2S AE Responsible Party: Vornado Air LLC Mailing Address : 415 E. 13th St., Andover, KS 67002 Contact: www.vornado.com...
-
Page 10: Features
FEATURES FINGER FRIENDLY DESIGN Resists curious fingers. GESTURAL TOUCH-SENSITIVE CONTROLS Simple controls with a sleek aesthetic. MULTIPLE SPEEDS 4 speed settings for every comfort level. ADJUSTABLE OSCILLATION 90°/180°/270°/360° or infinite oscillating airflow. DC MOTOR Quiet and energy efficient. AUTO DIMMING DISPLAY Reduces light pollution. -
Page 11: Getting Started
GETTING STARTED STAND ASSEMBLY Screwdriver required. 1. Assemble one base plate (A) to the base mount (B). Press together until flush. English... - Page 12 2. Using (5) five screws provided, secure 3. Repeat on other side so that all (10) the base plate (A) to the base mount ten screws are installed. (B). 12 English...
- Page 13 GETTING STARTED STAND ASSEMBLY 4. Insert collar plug (C) into the top of the lower post (D) attached to the stand assembly. 5. Then insert the upper post (E) onto the collar plug. English...
- Page 14 GETTING STARTED STAND ASSEMBLY 6. Attach your ATOM 2S AE on to the mount tray (F) using the (3) three captive screws. 7. Insert the DC power adapter cord connector (G) into DC receiver (H) located at the back of the product.
- Page 15 8. Feed the power cord into the recess on the back side of the stand. Plug the power cord into a power outlet. Your ATOM 2S AE is now fully assembled and ready for use. NOTE: Be sure to place one hand on top and one hand on bottom of stand when moving the product.
-
Page 16: How To Use
HOW TO USE 1. Insert power cord plug into port SPEED 2 SPEED 3 that extends from the bottom of the SPEED 1 SPEED 4 product. Plug the power cord into a power outlet. 2. Touch ( ) to power ON or OFF. Your circulator returns to last saved memory setting. - Page 17 HOW TO USE OSCILLATION 5. Tap and swipe your finger along the control panel perimeter to set the desired oscillation direction and angle. The oscillation path and direction of airflow is indicated by the blue LEDs as shown on the display. Tip: To activate infinite 360 oscillation, swipe finger along control panel perimeter in full circle and overlap where you started.
-
Page 18: Getting Connected
3. Once successfully connected, a message will appear in the Amazon Alexa app and the power button on your ATOM 2S AE will be illuminated blue. Your fan is ready to use. FACTORY RESET: If for any reason, there is a problem with your product or you wish to disconnect the product from your network you can reset it to factory settings. -
Page 19: Using Alexa
USING ALEXA Once connected to Amazon Alexa, your ATOM 2S AE can be controlled via your voice with any Alexa Echo device or the Alexa App on your phone. To control your product, use simple voice controls like: “Alexa, turn ON / OFF <<fan name>>.”... - Page 20 USING ALEXA You can also use the Amazon Alexa app as a remote control for your ATOM 2S AE. See app for details. You can unplug fan from wall to immediately disconnect from Alexa device control. Follow FACTORY RESET instruc- tions (page 18) to permanently disconnect device from net- work, if needed.
-
Page 21: Cleaning
CLEANING Because your ATOM 2S AE moves a substantial amount of air, it will need regular cleaning. The fan has no user serviceable parts inside and cannot be opened for cleaning. Never clean the product in any manner other than instructed in this owner's guide. -
Page 22: Storage
STORAGE During the off-season or after extended periods of non-use, you may choose to store your circulator. To ensure long life of the product, it is recommended to store your circulator by following these instructions: Cleaning is recommended before storage. 1. -
Page 23: Troubleshooting
GFCI has tripped. Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. -
Page 24: Warranty
Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact-us. After receiving the RA form, ship your Product to: Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. - Page 25 Vornado product to a country not intended for use will void all warranties. Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties.
-
Page 26: Español
Vornado Air, LLC 415 East 13th Street, Andover, Kansas 67002 800.234.0604 | vornado.com Amazon, Echo, Alexa, and all related logos are CL3-0936 R-, V00 trademarks of Amazon.com, Inc. or its affiliates.
