Adding a Scan Address Range
To add an address range to the Broadcast Address list:
1 Click Insert to bring up the Add/Edit Broadcast Address dialog box,
then click the Scan address range button.
2 Enter a valid broadcast IP address in the Address field.
3 Enter the number of IP addresses to scan sequentially in the Number of
addresses field.
4 Enter an optional description string in the Description field.
5 Click OK. Your address range will appear in the Broadcast address list
with the number of addresses to scan displayed in parentheses.
The Proxy Basics

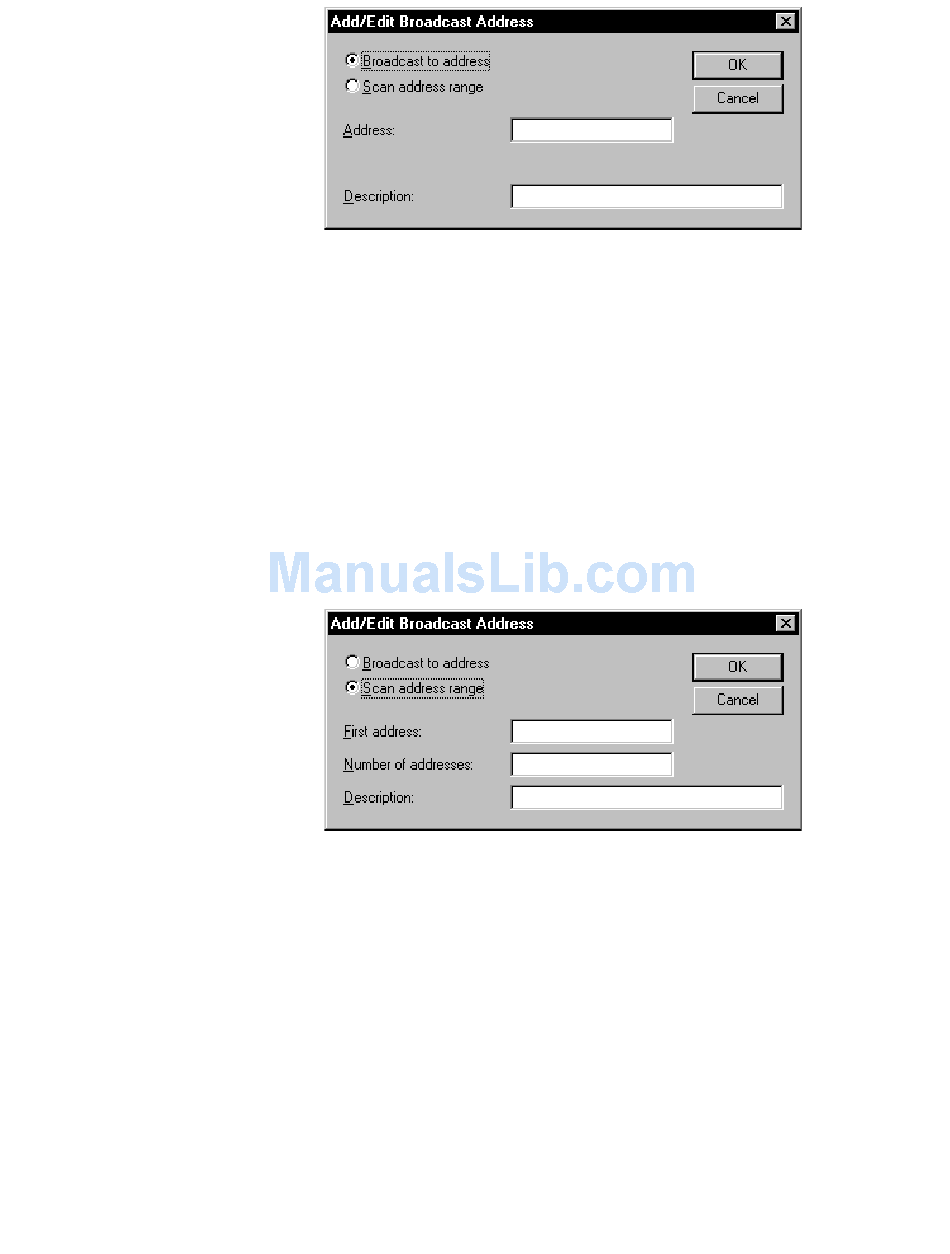

Figure 2-5: Adding an IP broadcast address
Figure 2-6: Adding an IP scan address range
