SLIM
assembly instructions
www.mazzivo.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIM and is the answer not in the manual?

Questions and answers

Summary of Contents for mazzivo SLIM

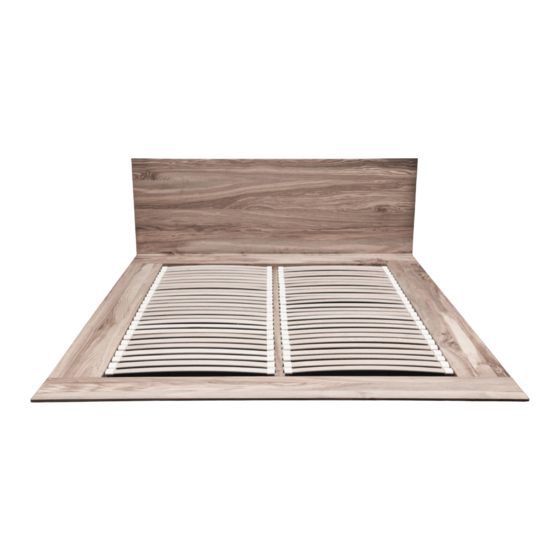

  • Page 1 SLIM assembly instructions www.mazzivo.pl...
  • Page 2 SLIM assembly instructions To assemble the bed, you will need the following: a battery-powered screwdriver, a cross-head screwdriver, an 8mm Allen wrench, a hammer - two adults. Bed frame: Headboard (1) - 1 pc Side panels (2,3) - 2 pcs...
  • Page 3 SLIM assembly instructions 1. Assembly of eccentrics (A) to boxes of ele- ments of the bed frame, the arrows indicate the outer edge 2. Assembly of mandrels in the headboard (1) and the footrest (4) 3. Assembly of pegs (G) in the headboard (1) and the footrest (4) 4.
  • Page 4 SLIM assembly instructions 5. Tightening the eccentric with a screwdri- ver. 6. Connecting the legs with the central board (5). 7. Assembly of the central board (5) 8. Connecting the footboard (4) to the side panels (2,3) and the board (5), tightening the eccentric with a screwdriver.
  • Page 5 SLIM assembly instructions 11. Screwing the spax screws in the fittings that fix the bars (6,7) 12. Assembly of legs (8) in the headboard (1) When this is done, the bed frame can be put on the legs. www.mazzivo.pl...
  • Page 6 SLIM assembly instructions A silent sleep system assembly instructions 1. Putting caps of the frame on the pegs. 2. Inserting the boards of the frame into the caps, as in the example shown in the pictu- res. www.mazzivo.pl...
