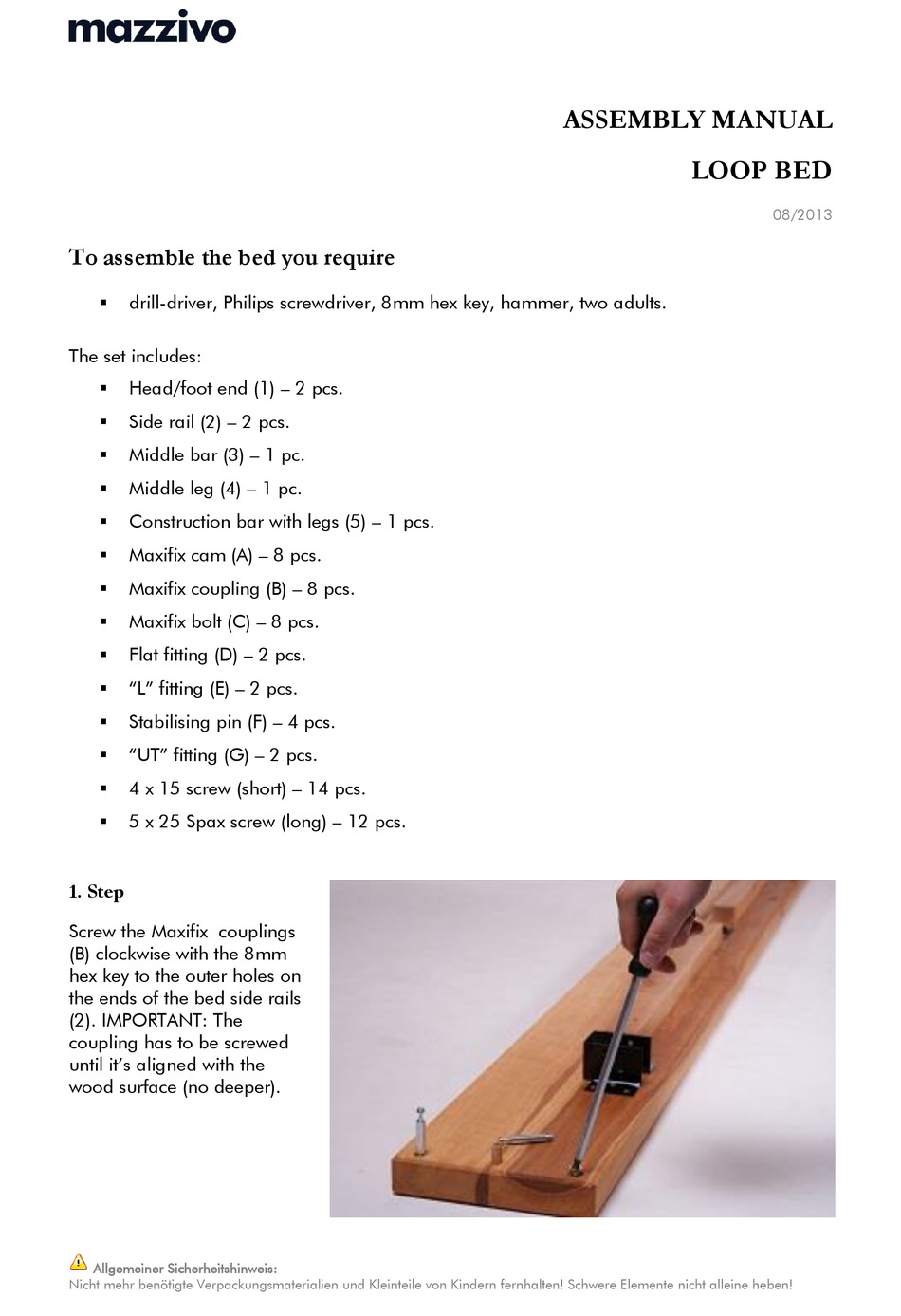

mazzivo LOOP BED Assembly Manual

To assemble the bed you require

drill-driver, Philips screwdriver, 8mm hex key, hammer, two adults.


The set includes:

Head/foot end (1) – 2 pcs.

Side rail (2) – 2 pcs.

Middle bar (3) – 1 pc.

Middle leg (4) – 1 pc.

Construction bar with legs (5) – 1 pcs.

Maxifix cam (A) – 8 pcs.

Maxifix coupling (B) – 8 pcs.

Maxifix bolt (C) – 8 pcs.

Flat fitting (D) – 2 pcs.

"L" fitting (E) – 2 pcs.

Stabilising pin (F) – 4 pcs.

"UT" fitting (G) – 2 pcs.

4 x 15 screw (short) – 14 pcs.

5 x 25 Spax screw (long) – 12 pcs.

1. Step
Screw the Maxifix couplings
(B) clockwise with the 8mm
hex key to the outer holes on
the ends of the bed side rails
(2). IMPORTANT: The
coupling has to be screwed
until it's aligned with the
wood surface (no deeper).
Allgemeiner Sicherheitshinweis:
Nicht mehr benötigte Verpackungsmaterialien und Kleinteile von Kindern fernhalten! Schwere Elemente nicht alleine heben!
ASSEMBLY MANUAL
LOOP BED
08/2013
