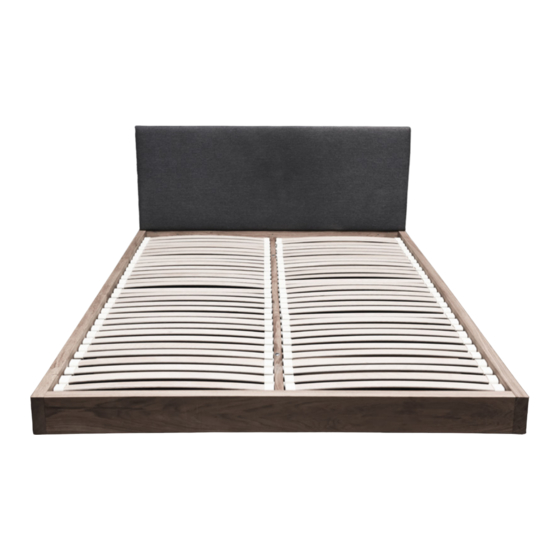

- Page 1 SMOOTH assembly instructions www.mazzivo.pl...
- Page 2 SMOOTH assembly instructions To assemble the bed, you will need the following: a battery-powered screwdriver, a cross-head screwdriver, an 8mm Allen wrench, a hammer - two adults. Bed frame: Headboard (1) - 1 pc Footrest (2) - 1 pc Side panels (3,4) - 2 pcs...
- Page 3 SMOOTH assembly instructions 1. Assembly of legs to the bars (6,7) with hex socket screws (J) 2. Assembly of eccentrics (A) to boxes of ele- ments of the bed frame, the arrows indicate the outer edge 3. Assembly of pegs (G) and mandrels in the side panels of the bed (3,4) 4.
- Page 4 SMOOTH assembly instructions 5. Assembly of the central board (5) 6. Connecting the footboard (2) to the side panels (3,4) and the board (5) 7. Tightening of all connecting elements 8. Assembly of bars (6,7) www.mazzivo.pl...
- Page 5 SMOOTH assembly instructions 9. Screwing the board (5) with the bars (6,7) 10. Screwing the spax screws in the fittings that fix the bars (6,7) When this is done, the bed frame can be put on the legs. www.mazzivo.pl...
- Page 6 SMOOTH assembly instructions A silent sleep system assembly instructions 1. Putting caps of the frame on the pegs. 2. Inserting the boards of the frame into the caps, as in the example shown in the pictu- res. www.mazzivo.pl...
