Reese

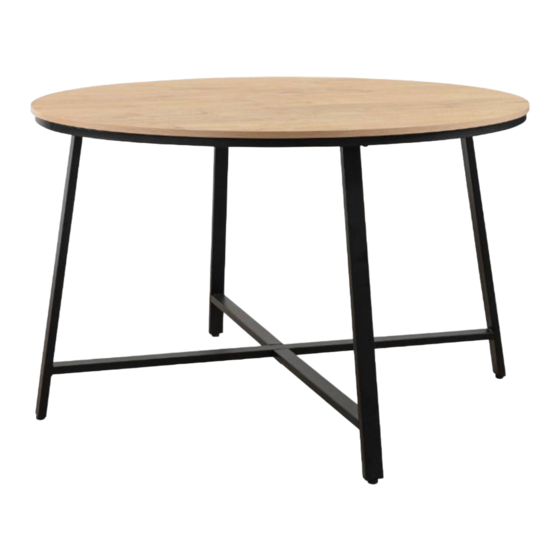

Dining Table
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
30mm
12mm
screw x12
screw x14
mocka.co.nz I mocka.com.au
C
D
E
foot 4
x
plate 2 x
washer 4 x
Phillips screwdriver required
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over
in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend that all furniture is anchored
to a wall. We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials
may require different fixing devices from those supplied.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Reese
Summary of Contents for Mocka Reese
- Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. 30mm 12mm foot 4 plate 2 x washer 4 x screw x12 screw x14 Phillips screwdriver required mocka.co.nz I mocka.com.au...
- Page 2 Reese Dining Table Attach frame [3] & [4] with 2× plate (D), secure with Insert 4× foot (C) into frame [3] & [4]. 14× screw (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
- Page 3 Reese Dining Table Attach frame [2] into panel [1] with 4× screw (E) Attach frame [3] and [4] to panel [1] with 8× and 4× screw (A). Tighten with a screwdriver. screw (A). Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
- Page 4 Reese Dining Table Lift the completed unit into place, do not drag. You`re done, enjoy! mocka.co.nz I mocka.com.au...
