Emerson FRANSEL REGAL 3 Instruction Manual

Instruction Manual
NTAREG30406
June 2004 - Rev. 03
DIRECT-OPERATED REGULATOR
SUMMARY
INTRODUCTION .................................................................
CHARACTERISTICS ...........................................................
LABELLING ..........................................................................
DESCRIPTION .....................................................................
SPARE PARTS .....................................................................
DIMENSIONS AND WEIGHTS .............................................
OPERATION .........................................................................
RELIEF VALVE ADJUSTMENT ............................................
INSTALLATION ....................................................................
COMMISSIONING ................................................................
MAINTENANCE ...................................................................

INTRODUCTION

The REGAL 3 is a direct-operated, spring set point pressure regulator,
used for supplying industries and commercial businesses.
As an option, it can be equipped with a slam shut type VSX2 or OS2
which permits the gas flow to be cut off rapidly and totally in the case of
under or over outlet regulator pressure.
As a standard feature for outlet pressure settings inferior or equal to
180 mbar, a relief valve is provided.
On request, this relief valve may be disconnected and replaced by a
dampener.
Upon request, for pressures 180 mbar <Pa <= 1100 mbar, the REGAL 3
can be equipped with a relief valve.
This relief valve can be factory adjusted.
DECLARATION OF CONFORMITY REGAL 3
Manufacturer:
Address:
Equipment:
Conformity Assessment Module:
The undersigned declare that the design, manufacture and inspection of this equipment are in conformity with the Pressure Equipment Directive 97/23/EC (PED)
Name:
Date:
www.emersonprocess.com/regulators
1
2
2
3
3
3
4
4
5
6
7
An Non-PED version of the Regal 3 is also available.
FRANCEL
Z.A. La Croix Saint Mathieu, 28320 GALLARDON
REGAL 3
Module A
Function:
Signature:
1

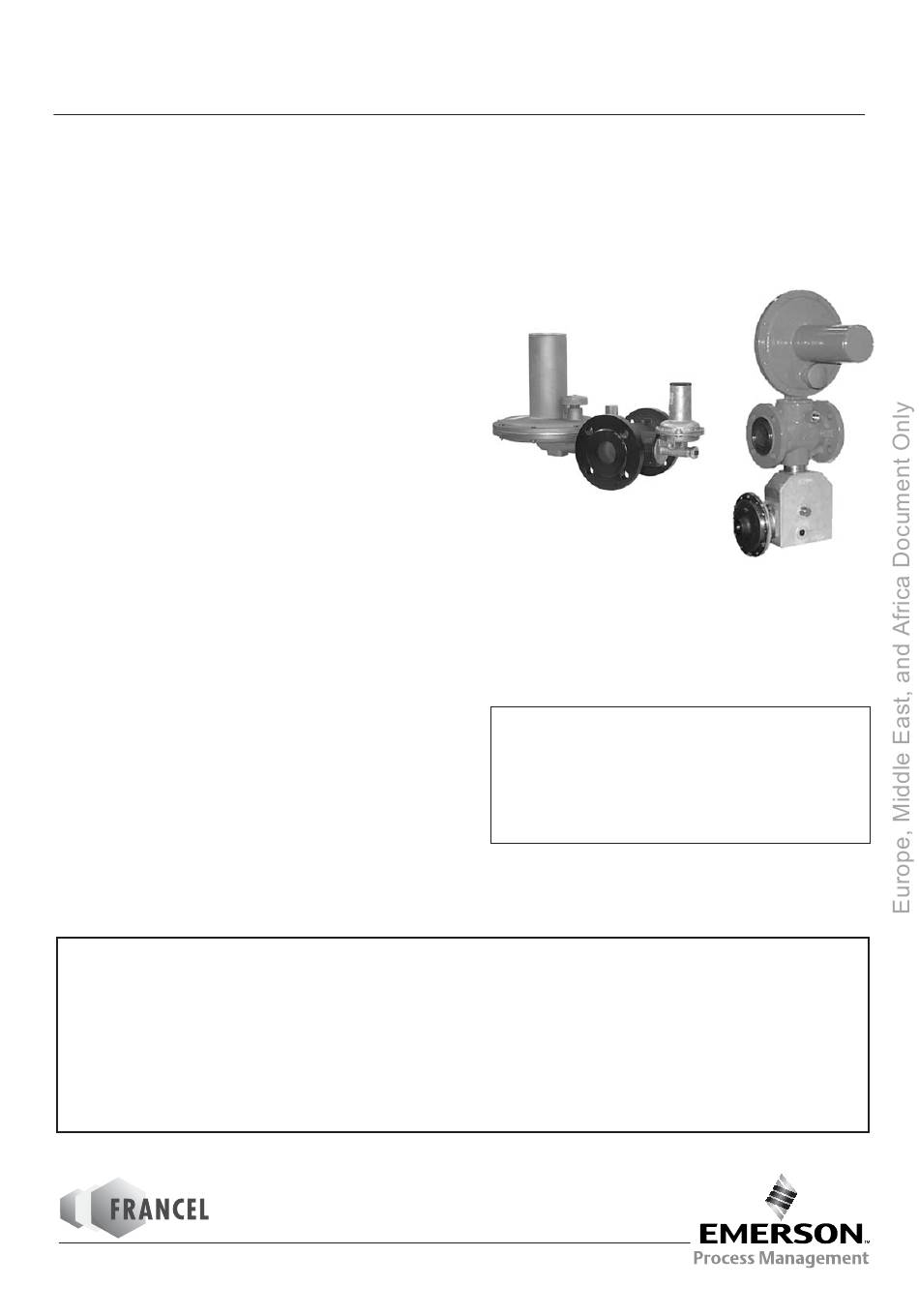

Type Regal 3/VSX2
The REGAL 3 is in conformity with the Pressure Equipment Directive
PED 97/23/EC and is classified under category I.
Equipment and pipeline situated on the outlet side of the regulator are
either;
- not subject to the PED (Pa <= 0.5 bar), or
- subject to (Pa > 0.5 bar) : in which case they should come
under category 1 maximum.
Identification no.:
Company stamp:
REGAL 3
Type Regal 3/OS2
