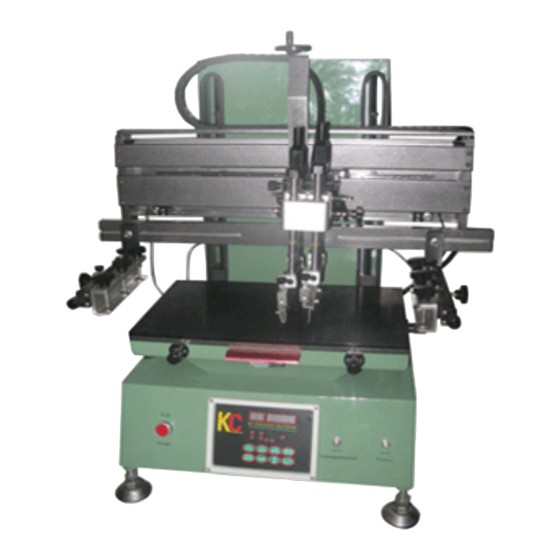

ST-3050PV 吸气式平面丝印机
Plane Screen Printer with vacuum working table
使 用 说 明 书
Operation Instruction
东莞市高宝印刷机械科技有限公司
1-18
Dongguan KC Printing Machine Limited
Website: Http://www.dg-padprinter.com
Online contact
Skype: yingsuhuakelven QQ: 726986799
Email:
cjscbsf@126.com
13592766499@VIP.163.com
Advertisement
Summary of Contents for KC ST-3050PV
- Page 1 ST-3050PV 吸气式平面丝印机 Plane Screen Printer with vacuum working table 使 用 说 明 书 Operation Instruction 东莞市高宝印刷机械科技有限公司 1-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
-
Page 2: Brief Introduction
IC Programmed controller to translate and edit the action programmed, which is compatible with the imported cylinder , to make every action faster and more accurate, enhancing the productivity and printing quality to the maximum. 东莞市高宝印刷机械科技有限公司 2-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com... - Page 3 There are two mode to operator this machine, “Mode”, Display “0”-Semi-auto mode 0 半自动，在此模式下，按一次（启动/停）键，丝印机完成一个印刷循环后停止 This machine run only one Circulate when press one time the Key : RUN/STOP 1 全自动，在此模式下，按一次（启动/停）键，丝印机会一直不停的印刷，直到再按一次（启动/停）键，机器才会停 东莞市高宝印刷机械科技有限公司 3-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
- Page 4 Please set the speed according to your requirement. 设 设 置 置 （ （ ） ） 键 键 机器可选功能，除非客户指定安装，标准机型不具备此功能.但凡客户选择安装此功能时，机器的电气部分会加装 东莞市高宝印刷机械科技有限公司 4-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
- Page 5 The printing head begin to covering ink and printing. If the printing stop at the right side, Under the semi-auto state, Press the key of “ Start”, after one printing circulation, the printing head will stop at 东莞市高宝印刷机械科技有限公司 5-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 6 Please check if the fuse broken, there are two fuse on electron circuit board and power insert seat, if fuse broken, Left side sensor Right side sensor 左端传感器 右端传感器 Table sensor 下端传感器 东莞市高宝印刷机械科技有限公司 6-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
- Page 7 Shut of the power supply, Keep pressing the blue button on solenoid valve, If the solenoid valve no action, Please replace it. Please measure the Resistivity of coil about 50 OHM. 3.机器动作不正常 Abnormal run action 机器运行中，没完成印刷循环，在一半突然回位，时不时出现此类情况，并不是每次都是这样，有两种情况： a，线路板程序错乱， b，外部电磁干扰，移动机器位置到车间的另一位置测试效果。 东莞市高宝印刷机械科技有限公司 7-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
-
Page 8: Circuit Diagram
Squeegee rise and ink flooding drop Squeegee and blade move from left to right Screen frame rising Squeegee and blade move from right to left Circuit diagram 东莞市高宝印刷机械科技有限公司 8-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com... - Page 9 When repair the circuit board , please notice the Electrode characteristic of Solenoid valve coil and input switch. Please do not connect inversely cathode and anode 2.保险管 A 断开后，线路板的数码管不显示，下面的 LED 灯有显示，保险管 B 断开后，线路板的数码管有显示，LED 东莞市高宝印刷机械科技有限公司 9-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 10 ST – 3050PV controlled by high precision liner rail screen plate up-down, rubber squeegee left-right can reach 0.03 mm. Suitable for high precision of the print. 东莞市高宝印刷机械科技有限公司 10-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 11 ST-3050PV 有两种类型的工作台，一种是吸气式的工作台，主要用来印刷纸张和薄膜，另一种是 T 型槽式的丝印 机，主要用来印刷注塑产品。 There are two kinds of working table; one is vacuum working table for printing paper and film. The other is T-Type working table for injection products. 东莞市高宝印刷机械科技有限公司 11-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com...
- Page 12 胶刮水平调节件 调节胶刮及回墨刮与网版的前后水平位置 Adjust the level of rubber blade and ink blooding Adjustment screw 网框压紧旋扭 压紧网版，保持印刷精度 Make the screen plate tighten Compact Knob 东莞市高宝印刷机械科技有限公司 12-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
- Page 13 Members, we will give you some advice on how to choose it. Please Check the display of the pressure gauge, adjust the pressure to 4~5 Bar (the standard pressure). 东莞市高宝印刷机械科技有限公司 13-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 14 There are different size rubber squeegee, we suggest you use the size 45*7mm or 50*9mm . Please cut it to the lengthe only longer than printing design with knife Adjust the stroke of squeegee. 东莞市高宝印刷机械科技有限公司 14-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 15 , start the 2-3mm machine and make a one circle run, check the printing quality, Please adjust the pressure till clearly words 东莞市高宝印刷机械科技有限公司 15-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
- Page 16 4. Check whether the shape of the squeegee is compatible with the characteristic of the material printed (Square 东莞市高宝印刷机械科技有限公司 16-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 17 4) Loose the screw of right side locating block and push the rubber squeegee to the right position so that the rubber squeegee can cover full design. 5) Fixture the screw. 东莞市高宝印刷机械科技有限公司 17-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com...
- Page 18 东莞市高宝印刷机械科技有限公司 18-18 Dongguan KC Printing Machine Limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email: cjscbsf@126.com 13592766499@VIP.163.com...
