Summary of Contents for UPPAbaby ALTA

  • Page 3: Table Of Contents

    Product Information Using the ALTA Registration Booster Assembly Certification Active Response Headrest Adjustment Lifetime Warranty SecureFit Lap Belt Positioner Install Using Lower Anchors Warnings + General Safety Information Release from Lower Anchors Storing Lower Anchors Child Usage Requirements Use Without Lower Anchors...

  • Page 4: Product Information

    276 Weymouth Street, Rockland, MA 02370 or call (844) 823-3132 or register online at: https://uppababy.com/register/carseat. For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153), or go online to https://nhtsa.gov.

  • Page 5: Lifetime Warranty

    UPPAbaby retailer. The “lifetime” of the product is defined as the period of use by the registrant for use with his/her children up to 10 years from date of manufacture. For complete UPPAbaby Warranty refer to page 37.

  • Page 6: Warnings + General Safety Information

    WARNINGS + GENERAL SAFETY INFORMATION WARNING DEATH OR SERIOUS INJURY CAN OCCUR According to accident statistics, children are statistically safer when properly restrained in the rear seating positions than in the front seating positions, whether there are airbags, advanced airbags or no airbags at all. To ensure your child’s safety refer to approved seating positions on page 11 in this manual or your Vehicle’s Owner Manual.
  • Page 7 WARNINGS + GENERAL SAFETY INFORMATION NEVER place this Child Restraint on a front seat with an airbag. DEATH OR SERIOUS INJURY can occur. An airbag can strike a rear-facing infant restraint with enough force to crack the shell and seriously injure or kill an infant. The back seat is the safest place for children 12 and under.
  • Page 8 • NEVER use any non-regulated products with this Child Restraint including any accessories, pads, or products supplied by other manufacturers, unless approved and tested by UPPAbaby. Items not tested with this restraint could injure your child. • DO NOT remove or cover up any of the warning labels or other labels on this...
  • Page 9 WARNINGS + GENERAL SAFETY INFORMATION • ALWAYS check all surfaces of restraint before securing your child. In warm weather, Child Restraints can become very hot and may result in burns to your child. Park in the shade or where sun does not directly hit the Child Restraint.
  • Page 10 WARNINGS + GENERAL SAFETY INFORMATION • NEVER place the shoulder belt under the child’s arms. • Failure to follow these warnings could cause serious injury or death to your child. • NEVER use this Child Restraint on an aircraft. This restraint is NOT certified for use in aircraft, because aircraft do not have shoulder belts.

  • Page 11: Child Usage Requirements

    CHILD USAGE REQUIREMENTS This Child Restraint is for use by children who meet BOTH requirements below: WEIGHT: 40 – 100 lbs (18.1 kg – 45.4 kg) HEIGHT: 38 – 57 in (96.5 – 144.8 cm) • DO NOT use this booster beyond the expiration date or if the child outgrows either the weight or height requirements.

  • Page 12: Vehicle Compatibility

    VEHICLE COMPATIBILITY – Overview of Vehicle Seat Belt Systems WARNING DEATH OR SERIOUS INJURY CAN OCCUR CHECK YOUR VEHICLE INSTRUCTION BOOK for information regarding your vehicle seat belt system(s). Not all vehicle seat belts work with this Child Restraint. • Use only the vehicle’s lap and shoulder belt system when restraining the child in this Child Restraint.
  • Page 13 VEHICLE COMPATIBILITY – Overview of Vehicle Seat Belt Systems PLEASE READ THE FOLLOWING INFORMATION BEFORE INSTALLING THIS CHILD RESTRAINT! Check Your Vehicle’s Owner Manual Vehicle seat belts differ from vehicle to vehicle. This booster is compatible with most vehicle seat belt systems and can ONLY be used with three-point (lap-shoulder) vehicle seat belts.

  • Page 14: Lower Anchors And Tether For Children (Latch)

    VEHICLE COMPATIBILITY – Lower Anchors and Tether for Children (LATCH) The lower anchor system helps to anchor the booster seat in the car for stability and to prevent it from becoming a projectile when not occupied in the event of a crash. This booster can be installed with lap shoulder belts in a vehicle that contains lower anchors.

  • Page 15: Vehicle Head Restraint

    VEHICLE COMPATIBILITY – Vehicle Head Restraint The back of the booster seat MUST fit tightly against the back of the vehicle seat. If the vehicle head restraint cannot be adjusted or removed, a different seating position or different booster seat should be used. IMPORTANT: If you remove your vehicle head restraint, be sure to stow in a secure place;...

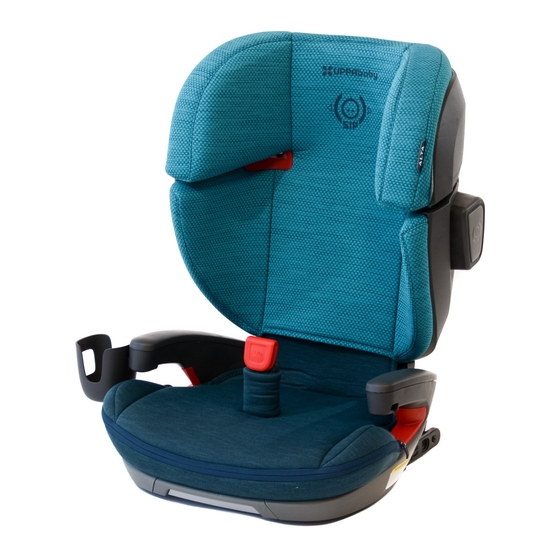

  • Page 16: Product Overview

    PRODUCT OVERVIEW...
  • Page 17 PRODUCT OVERVIEW A SecureFit Shoulder Belt Guide B Upper Seat Cover C Side Impact Pods D Armrests E Cup Holder Attachment F Lower Seat Cover G SecureFit Lap Belt Guide H Lower Anchor Connector Release/ Red to Green Indicator I Rigid Lower Anchor Connect J Energy Response Headrest K SecureFit Lap Belt Positioner L Lap Belt Positioner Cover...

  • Page 18: Using The Alta

    USING THE ALTA – Booster Assembly IMPORTANT: This product is NOT to be used without a backrest, and the backrest should never be separated from the base. 1 Lay the Booster Seat Bottom on floor facing up. 2 Attach the Backrest to the...
  • Page 19 USING THE ALTA – Booster Assembly...

  • Page 20: Active Response Headrest Adjustment

    USING THE ALTA – Active Response Headrest Adjustment ADJUSTING THE HEADREST The Headrest can be adjusted for best fit to your child and optimized protection. NOTE: The headrest can be adjusted with the child in the seat. 1 Squeeze grey button at top of seat.

  • Page 21: Securefit Lap Belt Positioner

    USING THE ALTA – SecureFit Lap Belt Positioner IMPORTANT: The lap portion of the belt should rest on the top of the child’s thighs and NOT across the child’s abdomen. We strongly recommend using the Lap Belt Positioner. The Lap Belt Positioner holds the lap part of the vehicle belt in place for proper belt positioning.
  • Page 22 USING THE ALTA – SecureFit Lap Belt Positioner ADJUSTING THE LAP BELT POSITIONER NOTE: You may have to open the Lap Belt Positioner Soft Cover to access the buckle and strap. 1 Pull down on the strap to tighten. 2 Pull up on the bottom of the buckle to loosen.

  • Page 23: Install Using Lower Anchors

    USING THE ALTA – Install Using Lower Anchors Lower Anchors can be used to prevent the booster from becoming a projectile in the car when not in use. The Lower Anchor system does not restrain your child. You must use the lap-shoulder belt to properly secure your child.
  • Page 24 USING THE ALTA – Install Using Lower Anchors NOTE: Before installing the booster, pull the Rigid Lower Anchor Connectors to ensure they are fully extended from the housing. 3 Place the booster on the vehicle seat. Push the Rigid Lower Anchor Connectors onto BOTH Lower Anchors until you hear a click.

  • Page 25: Release From Lower Anchors

    USING THE ALTA – Release from Lower Anchors TO RELEASE FROM LOWER ANCHORS To release the booster from the Lower Anchors pull back on the Lower Anchor Connector Release located on the side of each Rigid Lower Anchor Connector and remove the booster from the vehicle seat.

  • Page 26: Storing Lower Anchors

    USING THE ALTA – Storing Lower Anchors TO STORE RIGID LOWER ANCHOR CONNECTORS 1 Rotate both Rigid Lower Anchor Connectors back towards seat. 2 While pulling the Lower Anchor Release at the front of booster, simultaneously push the Lower Anchor Housing back towards the booster until it locks into place.

  • Page 27: Use Without Lower Anchors

    USING THE ALTA – Use Without Lower Anchors TO INSTALL WITHOUT USING LOWER ANCHORS With Rigid Lower Anchor Connectors stored, place the booster on the vehicle seat with the backrest flush with the vehicle seat back. IMPORTANT: NEVER leave Child Restraint unsecured in your vehicle even when it is unoccupied.

  • Page 28: Securing The Child

    USING THE ALTA – Securing the Child SECURING THE CHILD IN THE BOOSTER 1 With the booster correctly positioned in the vehicle and the Headrest in the proper position, route the Vehicle Shoulder Belt across the child’s chest and through the...
  • Page 29 USING THE ALTA – Securing the Child REMOVING VEHICLE SEAT BELT 1 Grasp vehicle belt on both ends RED SHOULDER BELT GUIDE. 2 Keeping vehicle belt completely flat, pull side to side under the small curve of the RED SHOULDER BELT GUIDE.

  • Page 30: Additional Information

    Attaching/Removing Lap Belt Positioner Cover ADDITIONAL INFORMATION ATTACHING/REMOVING THE LAP BELT POSITIONER SOFT COVER 1 Position the Soft Cover and the Lap Belt Positioner as shown. Insert both tabs on the Soft Cover into the cutout in the Seat Cover. 2 Fold the Lap Belt Positioner forward onto the Soft Cover.

  • Page 31: Remove And Install Seat Cover

    Remove and Install Seat Cover The Seat Cover can be removed for cleaning - See the CLEANING AND MAINTENANCE section (page 36) for more details. TO REMOVE THE SEAT COVER 1 Locate the pull tab for the Seat Cover zipper. Unzip the zipper to release the Seat Cover from the outside edge of the Booster.
  • Page 32 Remove and Install Seat Cover 3 Pull the back of the Seat Cover out from behind the Headrest. 4 Pull the Seat Cover over the Lap Belt Positioner and remove from the booster. TO INSTALL THE SEAT COVER 1 Place the Seat Cover on the Booster. 2 Pull the Lap Belt Positioner through the slot in the Seat Cover.

  • Page 33: Remove And Install Headrest Cover

    Remove and Install Headrest Cover The Headrest Cover can be removed for cleaning - See the CLEANING AND MAINTENANCE section (page 36) for more details. TO REMOVE THE HEADREST COVER 1 Pull on the lower edge of the Headrest Cover to remove the fabric from the slot that runs around the outside of the Booster.
  • Page 34 Remove and Install Headrest Cover 3 Continue to pull the top of the Headrest Cover fabric down to release the elastic straps from both of the plastic hooks in the Booster. 4 Remove the Headrest Cover from the Booster. TO INSTALL THE HEADREST 1 Locate the fabric key stored inside the pocket in the seat fabric.
  • Page 35 Remove and Install Headrest Cover 2 Hook the elastic straps on the Headrest Cover around both of the plastic hooks located at the top of the Booster seat back. Pull both elastic straps up and through the cutouts in the foam. 3 Use the fabric key to push the top of the Headrest Cover into the slot at the top of the Booster.
  • Page 36 Remove and Install Headrest Cover 4 Push the Headrest Cover into the slot on the outside of the side bolster using the fabric key. Repeat for the other side. 5 Push the Headrest Cover into the slot on the side of the Booster using the fabric key. Repeat for the other side.

  • Page 37: Cup Holder Use

    Cup Holder Use TO ATTACH THE CUP HOLDER Push cup holder stem into designated slot in side of the booster armrest. TO REMOVE THE CUP HOLDER Pull firmly. NOTE: Cup holder can be installed on either side of booster. WARNING: DO NOT place glass, metal containers or hard sharp objects in cup holder as they could become a projectile in a crash and cause serious injury.

  • Page 38: Cleaning And Maintenance

    CLEANING AND MAINTENANCE CLEANING FABRICS - Fabrics include: seat, headrest and lap belt positioner covers Dry flat and away from direct Machine wash in cold water on gentle cycle DO NOT iron or dry clean. with mild detergent. DO NOT bleach. sunlight before re-use or storage.

  • Page 39: Warranty

    10 years from date of manufacture. Your UPPAbaby product is warranted to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and in compliance with the operating instructions.
  • Page 40 • Products Involved in an accident. UPPAbaby reserves the right to determine if warranty terms and conditions have been met. For warranty service: In the US and CA please contact UPPAbaby customer service (844) 823-3132 and visit uppababy.com/support to send an email.
  • Page 44 All rights reserved. © 2022 UPPAbaby. UPPAbaby and all associated logos are trademarks. All product specifications are correct at time of print. UPPAbaby reserves the right to change anything at any time without prior notice. Color representation is as close as print processes allow. Not all colors available at all retailers. UbMAN031-V10...
