BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY POLARIS RZR TWO SPEAKER AUDIO SYSTEM PLUS BLUETOOTH AUDIO RECEIVER Congratulations on your purchase of a POWERSPORTS product. -
Page 4: Package Contents

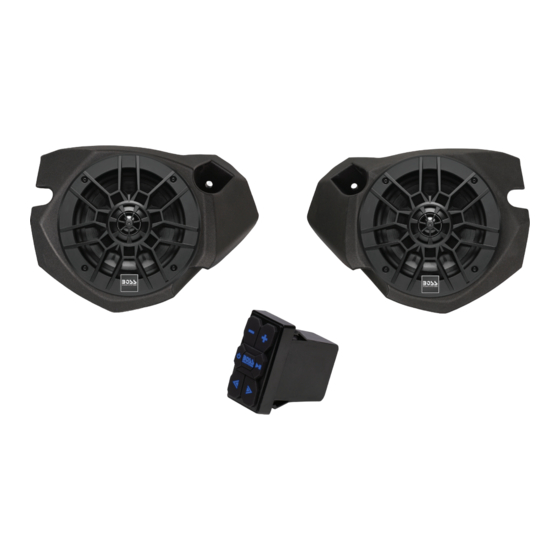

BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM Package Contents RZR-FSA BPS1RS • 2x Speakers (amplifier built in the left speaker) • 1x Bluetooth audio receiver • 4x Mounting screws (M5x27mm) • 1x Spare Mini fuse (15A) - Page 5 BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM Audio receiver (BPS1RS) RZR-FSA speakers Left Right (amplified) : Connect the “MAIN OUT” sockets of the audio receiver to the “LINE IN” plugs (red/white) of the left speaker.
-
Page 6: Mounting Overview
POLARIS RZR TWO SPEAKER AUDIO SYSTEM Mounting Overview The BPRZR2S is designed specifically for the Polaris RZR. Bluetooth audio receiver BPS1RS is designed for the rocker switch locations on the RZR dash. The RZR-FSA front internally amplified speaker pods are specific to the Polaris RZR footwell. - Page 7 BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM Remove the top dash panel and upper storage compartment to access the dash cavity for installation of the BPS1RS and RZR-FSA. Note: The disassembly instructions below are based on RZR with upper storage compartment.
-
Page 8: Audio Receiver (Bps1Rs) Installation
“GROUND-” wire (black) out of the firewall through the firewall grommet. Then connect the two wires to the bus bar, the red wire to the positive terminal and the black wire to the negative terminal. Note: For BPRZR2S installation, only power and ground harnesses will be routed out of the dash cavity through the firewall. - Page 9 BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM a. Find the one T40 Torx screw two inches above the passenger footrest (as illustrated below), and remove it as a mounting screw for the speaker.
- Page 10 BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM Install the left/amplified speaker near the footwell on the driver side. Repeat the right speaker installation steps to the driver side. Remove one T40 torx screw and refasten it through the bracket pre-attached to the bottom of the speaker.
-
Page 11: Feature Operation
BPRZR2S IPX6 RATED 200 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR TWO SPEAKER AUDIO SYSTEM Installation of the audio receiver and speakers is complete now. Then reconnect the nagative terminal of the vehicle battery and function test the installation. Finally, reassemble the panels and dash of your RZR.
