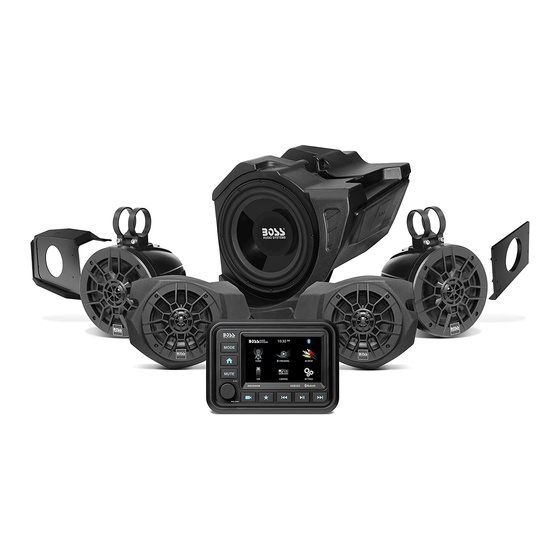

- Page 1 BPRZR5 INSTALLATION MANUAL IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY COMPLETE POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM 5” (127 mm) BLUETOOTH TOUCHSCREEN DIGITAL MEDIA PLAYER ® (4) 100 WATT 6.5” (165 mm) AMPLIFIED FULL RANGE SPEAKERS (1) 600 WATT 10” (254 mm) AMPLIFIED SUBWOOFER ENCLOSURE...
-
Page 2: Table Of Contents
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Congratulations on your purchase of a POWERSPORTS product. -
Page 3: Delivery Content
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Delivery content MGV550B RZR-FSA • Marine Gauge Digital Media AM/FM Receiver (1) • 6.5” Amplified speakers (2) • Rubber Cover (1) • M5x27mm mounting screws (4) •... -
Page 4: Disassembly
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Disassembly Remove all seats from the vehicle and disconnect the negative battery terminal. Disengage the twist locks to the hood and set it aside. - Page 5 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Gently pull the left and right side of the main dash face to disengage the body clips, remove the main dash face. Remove the two 10mm screws from the glovebox and dismount the glovebox from the chassis.
- Page 6 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT When removing the center console from a four-seat machine, disconnect the 12V socket found at the passenger rear of the center console. - 5 -...
-
Page 7: Wiring Overview
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Wiring overview - 6 -... - Page 8 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Item Description/specifications MGV550B Audio source unit • Power, ground, and accessory wire connect to the bus bar for power. MGV550B power harness • Connect the Molex to the MGV550B to power the (not shown in diagram) MGV550B.
-
Page 9: Rzr-10A Subwoofer Enclosure Installation
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT RZR-10A Subwoofer enclosure installation Place the RZR-10A subwoofer enclosure into the passenger footwell of the machine. Route the wiring harness around the chassis being mindful that the wiring will not be pinched or damaged when the RZR- 10A is mounted. - Page 10 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Fasten the lower portion of the RZR-10A to the firewall of the machine with two of the provided #2 phillips screws. Feed the power and ground cables from the RZR-10A through the firewall grommet (Depending on model year, some tape may have to be removed from the grommet).
- Page 11 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Gently pull the slack of power and ground wire through the grommet to the outside of the vehicle. Feed the power and ground down the exterior of the firewall along the factory wiring harnesses.
-
Page 12: Rzr-Fsa Front Speaker Enclosure Installation
The power and ground will end at the battery. Remove the fuse from the fuse holder. Do not connect the RZR-10A to power until the BPRZR5 installation has been completed. Note: The wire lengths were designed with four seat machines in mind. Any extra wire on a two machine can be neatly coiled zip-tied in a safe location at the end of installation. - Page 13 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Refasten the T40 Torx screw through the lower bracket of the RZR-FSA. Using two of the provided #2 phillips screws, secure the inner two mounting points of the RZR-FSA to the firewall.
- Page 14 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Repeat passenger RZR-FSA installation steps to the driver side. Remove one T40 torx screw, connect the passenger input signal cable to the output signal cable on the driver side pod.
- Page 15 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Feed the power and ground of the RZR-FSA through the grommet and out of the firewall. DO NOT feed the RCA and amp turn on wire through the grommet. They will be staying in the dash cavity.
-
Page 16: Rzr-62A Rear Speaker Enclosure Installation
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT RZR-62A Rear Speaker enclosure installation Mount the main RZR-62A to the driver side rear of the roll cage in sure preferred location. Take blind spots into consideration when mounting the RZR-62A to help ensure safety and visibility when out of the trail. - Page 17 Two screws can be unbolted to loosen the metal After loosening two bolted screws and then twist BPRZR5 base of mounting band to adjust the mounting the metal base to determine the optimal location angle. Making sure to put all components of the for your speakers onto the roll cage of your RZR.
- Page 18 The power and ground will stop at the battery. The RCA inputs and remote turn on wire will continue down the center of the vehicle. Remove the fuse from the RZR-62A fuse holder. Do not connect to power until the end of the BPRZR5 installation.
-
Page 19: Mgv550B Source Unit Connection
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT MGV550B Source Unit connection Feed all the RCA inputs and remote turn on wires through the grommet then into the dash cavity in which the source unit is located. - Page 20 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Feed the power, ground and accessory power wires of the MGV550B power harness from the dash cavity out of the grommet to the bus bar for power. Then connect the power and ground accessory power to the bus bar.
- Page 21 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Connect all three blue remote wires to the three remote outputs of the MGV550B power harness respectively. Replace the 12V socket with MUSB35, then tape off the power and ground to the 12V socket to prevent electrical short.
-
Page 22: Mgv550B Source Unit Installation
BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Install the source unit in your dash (see section “MGV550B Source Unit installation). Then make your final connections to the MGV550B. MGV550B Source Unit installation With the supplied source unit mounting kit (BPRZRD/BPRZR5D), you can install the MGV550B source unit in the place where the factory dash pocket sits. - Page 23 BPRZR5 IPX6 RATED 1000 WATTS TRUE PLUG-N-PLAY INSTALLATION MANUAL POLARIS RZR XP1000 5 SPEAKER AUDIO SYSTEM KIT Lower dash mounting Locate the lower dash pocket and remove the lower dash pocket panel from your RZR. Fasten both the lower dash mount panel and the metal brace plate to the lower dash pocket panel of your RZR.
- Page 24 Tech Support: www.bossaudio.com/support 0821 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.
