Boss Audio Systems MR62B Installation Instructions

Thank you for purchasing a BOSS Audio Systems product. Please read through these
instructions carefully so you will know how to install this product properly.
Package contents
• 2x Speakers (with fixed grill)
• 8x Mounting screws and clip nuts
Specifications
• 2-way speaker, full range
Woofer: 6.5" (165 mm),
polypropylene cone, resin treated cloth surround
Tweeter: 13 mm, dome
• Output power: max 200 W
Speaker dimensions
A
A.
Overall diameter: 7.60" (193 mm)
B.
Mounting hole diameter: 5.59" (142 mm)
B
Installation Instructions
• 2x EVA gaskets
• Cutout template and warranty
• Nominal impedance: 4 Ω
• Frequency response: 80 Hz-20 kHz
• System sensitivity: 90 dB (1 watt/1 meter)
• Outdoor use. Water resistant, but never
submerge.
D
C.
Mounting depth: 2.625" (67 mm)
D.
Grill protrusion: 1.02" (26 mm)
E. Outer motor diameter: 4.49" (114 mm)
- 1 -
MR62B/MR62W

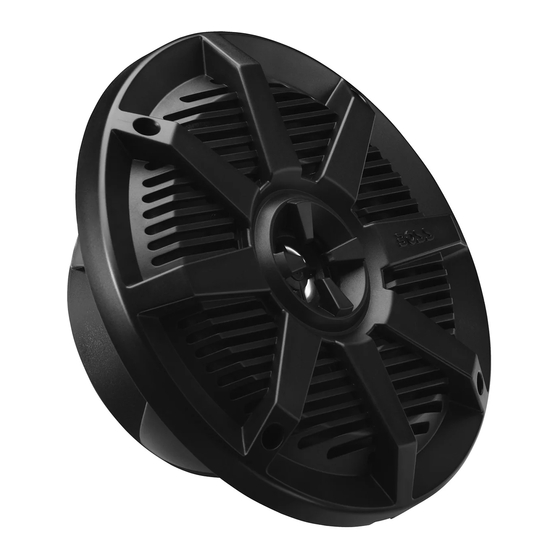

6.5" (165 mm) Marine
2-Way Full Range Speakers (1 Pair)
E
C
