Page 1: User Manual

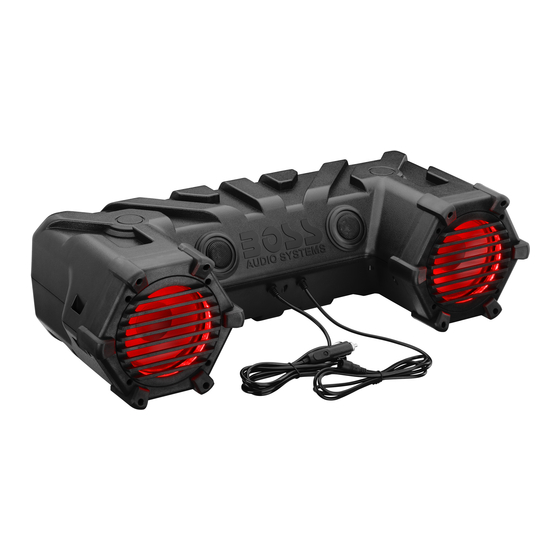

USER MANUAL QUICK START GUIDE ATV30BRGB MODE SPEED SPEE SPEE SPEE SPEE SPEED SPEED SPEE SPEE SPEE SPEE SPEED DEMO DEMO – – – – – COLOR COLOR MODE BRIGHT BRIGHT – – – – – – COLOR COLOR BRIGHT BRIGHT –... -
Page 2: This Package Contains
Thank you for purchasing this ATV30BRGB All-Terrain Sound System Please read through these instructions carefully so you will know how to operate your model properly. in a safe place for future reference. THIS PACKAGE CONTAINS 1 - Bluetooth Multi-Function Controller... -
Page 3: Fcc Compliance Statement
INFORMATION TO THE USER FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. -
Page 4: Before You Start
BOSS AUDIO SYSTEMS Service Center ATV30BRGB can be powered from a vehicles cigarette lighter / auxiliary power port, or hard wired directly to the battery through an optional relay / accessory switch... -
Page 5: Getting Started
GETTING STARTED GETTING TO KNOW YOUR ATV30BRGB MULTIFUNCTION CONTROLLER (MFC) MFC - MULTIFUNCTION CONTROLLER BLUETOOTH INDICATOR LED - BLUE COLOR POWER INDICATOR LED - RED COLOR 3.5mm AUX-INPUT PREVIOUS TRACK / Press and hold for VOL - PLAY/PAUSE / Press and hold for POWER ON... - Page 6 GETTING STARTED GETTING TO KNOW YOUR ATV30BRGB LED RF CONTROLLER USING THE REMOTE CONTROL RF controller range: Up to 25ft (LoS) Do not obstruct the RF remote with metal Always keep away from small children Do not store in direct sunlight...
-
Page 7: Bluetooth Operation
“ATV30BRGB” will now be displayed e. If prompted, enter passcode: “0000” ATV30BRGB is not seen, repeat the above steps to refresh the “Device List” 4) When the connection is successful, you are now ready to stream music from your favorite... - Page 8 “ATV30BRGB” will display under AVAILABLE DEVICES d. Choose the “ATV30BRGB” to reconnect 4) If the device is out of range from the ATV30BRGB, it will disconnect automatically: a. To reconnect once device is back in range, press the Play/Pause button once b.
-
Page 9: Streaming Music
STREAMING MUSIC MULTIFUNCTION CONTROLLER BLUETOOTH OPERATION 1) Press the PLAY/PAUSE once to start playing music or press the PLAY button from your device touch screen 2) To skip songs or advance, press the NEXT TRACK button PREVIOUS TRACK button VOLUME CONTROL 4) To raise the volume Press and Hold the VOL + 5) To lower the volume Press and Hold the... -
Page 10: Your Device
AUX-INPUT ATV30BRGB can play audio from any device YOUR DEVICE MULTIFUNCTION CONTROLLER AUX-IN OPERATION 1) Power on the ATV30BRGB by pressing and holding down the PLAY/PAUSE multi- 2) Disconnect any paired Bluetooth Bluetooth in your devices Settings Menu AUX-IN cable located on right side of the MFC to your... -
Page 11: Before Installing This Product
BEFORE INSTALLING THIS PRODUCT To avoid potential shorts in the electrical tery cable before installation. Use this unit ing only. Failure to do so may result in a this product. To avoid short-circuiting, cover any disconnected leads with insulating tape. It is especially important to insulate any unused wires, which if left uncovered may cause a short circuit. -
Page 12: Multi-Function Controller Mounting
MULTI-FUNCTION CONTROLLER MOUNTING MULTI-FUNCTION CONTROLLER UNIT LOCK NUT ALLEN HEAD BOLT Z-BRACKET SNAP LOCK NUT BRACKET WASHER ALLEN HEAD HANDLEBAR BOLT CLAMP LEFT RIGHT RUBBER SHIM FOR ILLUSTRATION PURPOSES FOR ILLUSTRATION PURPOSES YOUR VEHICLE MAY VARY YOUR VEHICLE MAY VARY TOOLS NEEDED: - 12mm Socket, Wrench or Pliers - 6mm Allen Wrench... -
Page 13: Wire Diagram
WIRE DIAGRAM INSERT Align arrows Mini-DIN Connector Fuse is located inside the power adaptor QUICK RELEASE INSERT Turn counter clockwise to open POWER ADAPTOR (INCLUDED) POWER ADAPTOR Replace with 15A AGC Fuse type only OPTIONAL DIRECT BATTERY WIRING CIRCUIT Recommended 12 ~ 14ga Wire (not included) Normally open switch Fuse and fuse holder... - Page 14 BLUETOOTH ENABLED | ALL-TERRAIN SOUND SYSTEM ® WITH RF RGB LED REMOTE CONTROLLER BOSS Audio Systems www.bossaudio.com | 805-751-4853 Tech Support: www.bossaudio.com/technical-support iPod / iPhone are trademarks of Apple Inc. registered in the U.S. and other countries Android is a trademarks of Google Inc. registered in the U.S. and other countries.
