Assembly (Swivel Rockers)
4

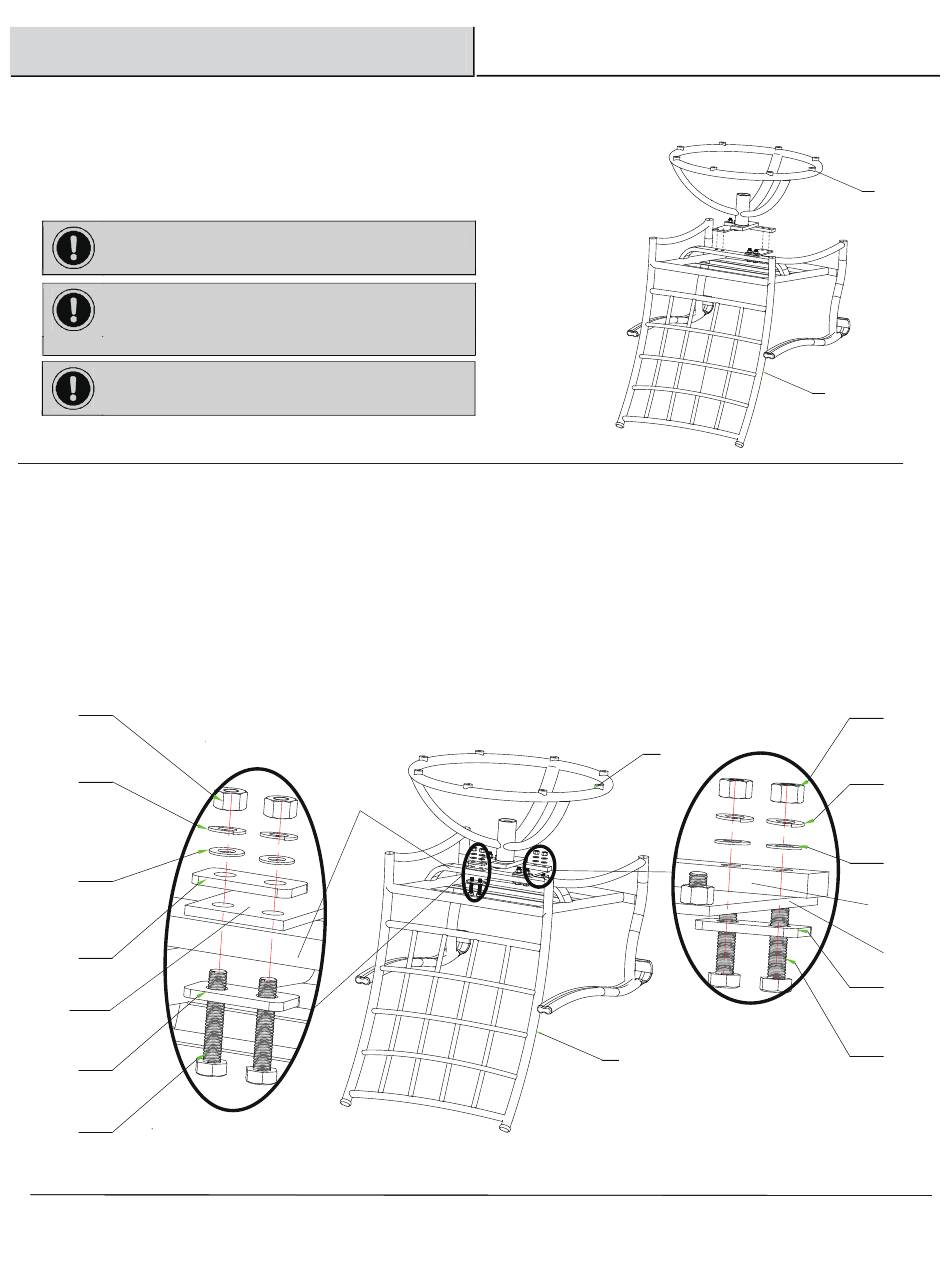

Aligning the chair base to the chair seat
□
Place the chair seat (E) upside down on a smooth surface.
□
Align the chair base (F) to the chair seat (E).
IMPORTANT: You may need to loosen pre-installed bolt s IMPORTANT: You may need to loosen the pre-installed
bolts to ensure the chair seat (E) and chair base (F) will line up. to ensure chair seat (A) and chair base (B) will line up.
IMPORTANT :
T-rocker (4) of the chair base (F), another is pre-installed on
the U-bar (5) of the chair seat (E) to show the proper way
to assemble.
IMPORTANT: It is critical to follow the correct assembly for
the stability and safety of the chair.
5
Attaching the chair base
□
On one side attach the steel plate (3) to the U-bar (5) of the chair seat (E) with two bolts (II) and one washer plate (EE)
from below the U-bar (5), and with two washers (FF), two lock washers (GG) and two nuts (HH) from above the steel plate (3)
using two spanners (MM). (Fig.1)
□
On the other side attach the steel plate (3) to the T-rocker (4) of the chair base (F), with two bolts (JJ) and one washer plate (EE)
from below the steel plate (3), and with two washers (FF), two lock washers (GG) and two nuts (HH) from above the T-rocker (4)
using two spanners (MM). (Fig.2)
□
Completely tighten all bolts (II and JJ) and pre-installed bolts when all bolts and nuts are in place.
Completely tighten all nus (HH) and pre-installed nuts .
HH
GG
FF
EE
3
EE
II
n O e steel plate (3) is pre-installed on the
5
Fig. 1
E
6
E
F
Fig. 2
F
HH
GG
FF
4
3
EE
JJ
