Item #1006 660 364
Model #YJAF-819C-NCS
USE AND CARE GUIDE

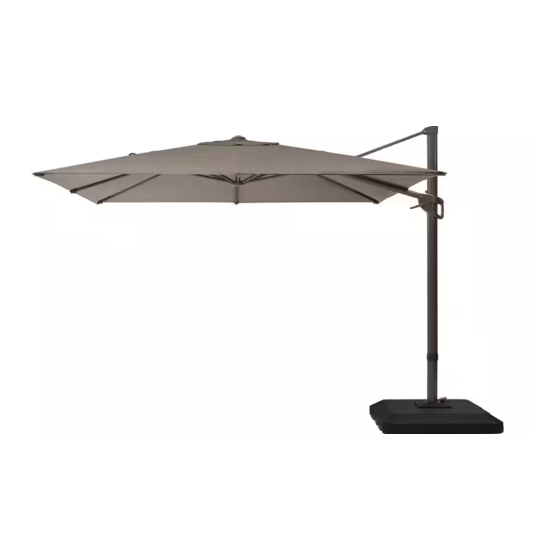

10 FT X 10 FT SQUARE OFFSET UMBRELLA
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this umbrella. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection YJAF-819C-NCS
Summary of Contents for Home Decorators Collection YJAF-819C-NCS
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this umbrella. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly................3 Safety Information ..............2 Planning Assembly..............3 Product Caution ..............2 Hardware Included..............3 Safety Warnings ..............2 Package Contents..............4 Warranty ..............Assembly.................5 What is Covered..............2 Operation................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Part Description... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Lower bracket Upper bracket Base tube Lower umbrella pole Crank Umbrella shade Pedal Turn plate Side base Middle base Upper base cover Lower base cover... -
Page 5: Assembly
Assembly Pouring Sand and Water into the Bases Open the side bases (I) and the middle bases (J) in the counterclockwise direction. Pour sand and water into the side bases (I) and the middle bases (J). Close the side bases (I) and the middle bases (J) in the clockwise direction. NOTE: Place the bases in the area where the umbrella is to be used. - Page 6 Assembly (continued) Attaching the Brackets Attach the upper bracket (B) onto the lower bracket (A).
- Page 7 Assembly (continued) Attaching the Turn Plate to the Brackets and the Base Tube to the Turn Plate Attach the pedal (G) to the turn plate (H) using M6x10 bolt (AA) and the M6 hex wrench (FF). Pull out the lower umbrella pole (D) from the base tube (C). Attach the turn plate (H) to the brackets (A and B) using M10x25 combination bolts (DD) and the M10 hex wrench (EE).
- Page 8 Assembly (continued) Attaching the Middle Bases to the Brackets Attach the middle bases (J) onto the brackets (A and B).
- Page 9 Assembly (continued) Attaching the Side Bases to the Brackets Attach the side bases (I) to the brackets (A and B). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 10 Assembly (continued) Inserting the Lower Base Cover, Upper Base Cover and Lower Umbrella Pole into the Base Tube Insert the lower base cover (L) into the base tube (C). Insert the upper base cover (K) into the base tube (C). Insert the lower umbrella pole (D) into the base tube (C).
- Page 11 Assembly (continued) Inserting the Umbrella Shade into the Base Tube Insert the umbrella shade (F) into the base tube (C) using one M6x15 bolt (BB) and M6 hex wrench (FF). Fully tighten all the bolts at this step. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
-
Page 12: Operation
Operation Attaching the Crank to the Handle and opening the Umbrella Attach the crank (E) to the handle. Shake the umbrella fabric before opening the umbrella. Slowly turn the crank (E) clockwise to open the umbrella, press the button on the handle, hold the handle and push the umbrella shade to the desired position. - Page 13 Operation (continued) Rotating the Umbrella Hold t he pedal (G) with one foot and rotate the umbrella pole. (The umbrella can rotate up to 360 degrees). 360° HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 14 Operation (continued) Adjusting the Umbrella If you need to adjust the umbrella shade position, press the button on the handle and push up or push down to desired position. BUTTON...
- Page 15 Operation (continued) Closing the Umbrella Slowl y turn the crank (E) in a counterclockwise direction to close the umbrella. Hold the umbrella handle, and press the button on the handle, and push the umbrella shade downward. Tie th e umbrella to the umbrella pole with the Velcro belt when not in use, as shown below.
-
Page 16: Care And Cleaning
Operation (continued) Attaching and Detaching the Crank Attach the crank (E) without using the tap as shown in figure 1. To detach the crank (E), just take the crank out. Attach the crank (E) to the handle as shown in figure 2. Attach the crank (E) by aligning the tap with the hole on the crank (E) until it snaps into place. - Page 17 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
