Item #7630110289
Model # 151-100-7D
USE AND CARE GUIDE
Gabriel 7pc Cushioned Dining Set
(4-Dining Chairs and 2-Swivel Rockers)
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8.00 a.m. - 6.00 p.m., EST, Monday - Friday
1-800-245-2217
HOMEDECORATORS.COM
THANK YOU
7
e strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection.
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection Gabriel 151-100-7D
Summary of Contents for Home Decorators Collection Gabriel 151-100-7D

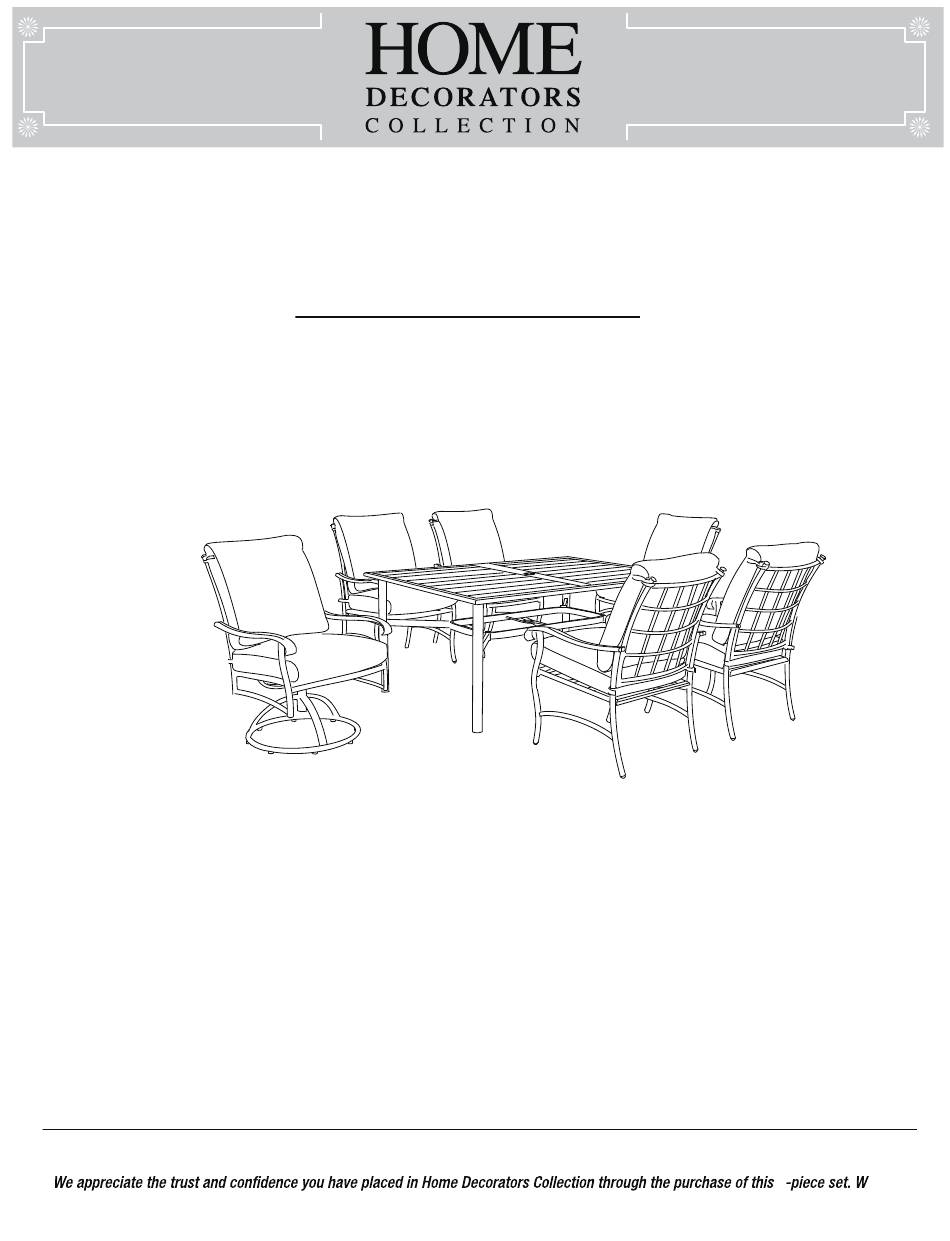

- Page 1 8.00 a.m. - 6.00 p.m., EST, Monday - Friday 1-800-245-2217 HOMEDECORATORS.COM THANK YOU e strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection.
-
Page 2: Table Of Contents
Table of Contents Pre-Assembly ............3 Table of Contents............2 Planning Assembly ..............3 Safety Information............2 Hardware Included..............3 Warranty ..............2 Package Contents ..............4 One Year Frame and Fabric Limited Warranty......2 Assembly ..............5 ..............2 What Is Covered ..............2 What Is Not Covered Care Instructions .. -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take two people about 45 minutes to complete the assembly process. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Bolt cap (M6) Washer plate Washer (M6) Washer Bolt (M6x18) Lock washer Hex wrench Bolt (M8x42) -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Right armrest Chair seat (with metal plate) Left armrest Chair base (with metal plate) Seat panel Seat cushion Back panel Back cushion... -
Page 5: Assembly
Assembly (Dining Chairs) Attaching armrests to the back panel □ Attach the armrests (A) and (B) to the back panel (D) with washers (BB) and bolts (CC) using the hex wrench (DD). Do not fully tighten bolts until the end of step 2. □... - Page 6 Assembly (Swivel Rockers) Aligning the chair base to the chair seat □ Place the chair seat (E) upside down on a smooth surface. □ Align the chair base (F) to the chair seat (E). IMPORTANT: You may need to loosen pre-installed bolt s IMPORTANT: You may need to loosen the pre-installed bolts to ensure the chair seat (E) and chair base (F) will line up.
- Page 7 Assembly (continued) Attaching the bolt caps □ Cover all bolts (II and JJ) and pre-installed bolts with bolts caps (LL). □ Cover all nuts (HH) and pre-installed nuts with nut caps (KK). II/JJ Turning over the chair □ Turn over the chair and check the stability. □...
- Page 8 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8.00 a.m. – 6.00 p.m., EST, Monday-Friday 1-800-245-2217 HOMEDECORATORS.COM Retain this manual for future use.
