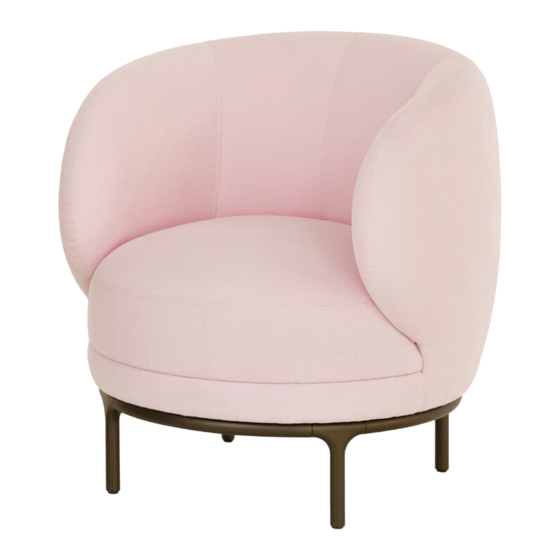

Wittmann Vuelta Armchair rotatable mounting plate Assembly Instructions

Vuelta Armchair rotatable mounting plate
Assembly instructions

Assembly of the Vuelta rotating mounting plate:

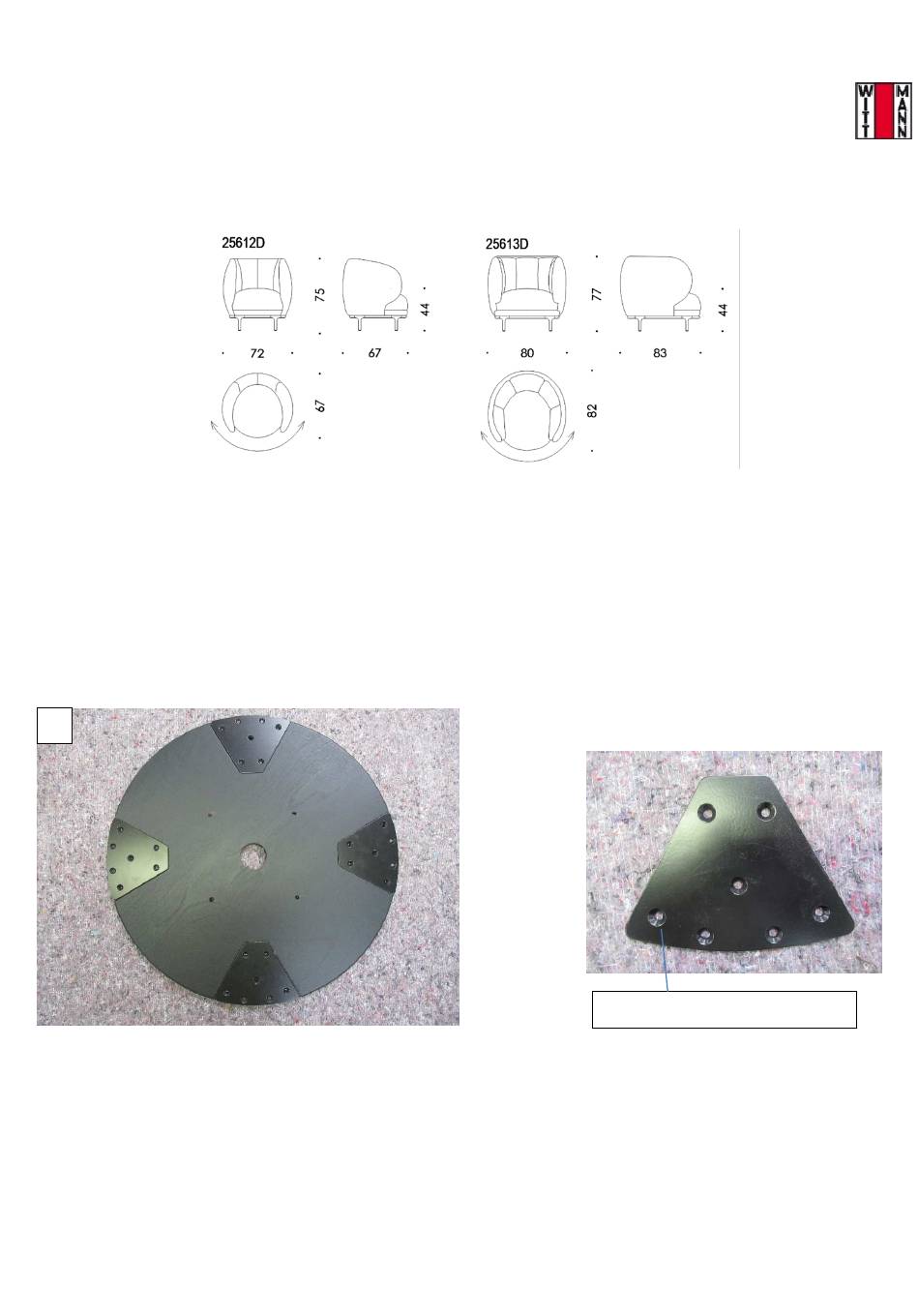

- Place the mounting plate with the cut-outs parts facing upwards (1)
- Place 4 black metal brackets into the cutouts an attach the metal brackets to mounting plate with the
16 screws M6x20mm (2)
- Turn the mounting plate upside down (3)
- Prepare feet – as shown on picture (4)
- Put 12 the washers in the drilled holes in the feet (5)
- Prepare bows – as shown on pictures (6)
- Mounting of the feet and bows according to photos 8 - 11
1
Countersinking upwards
