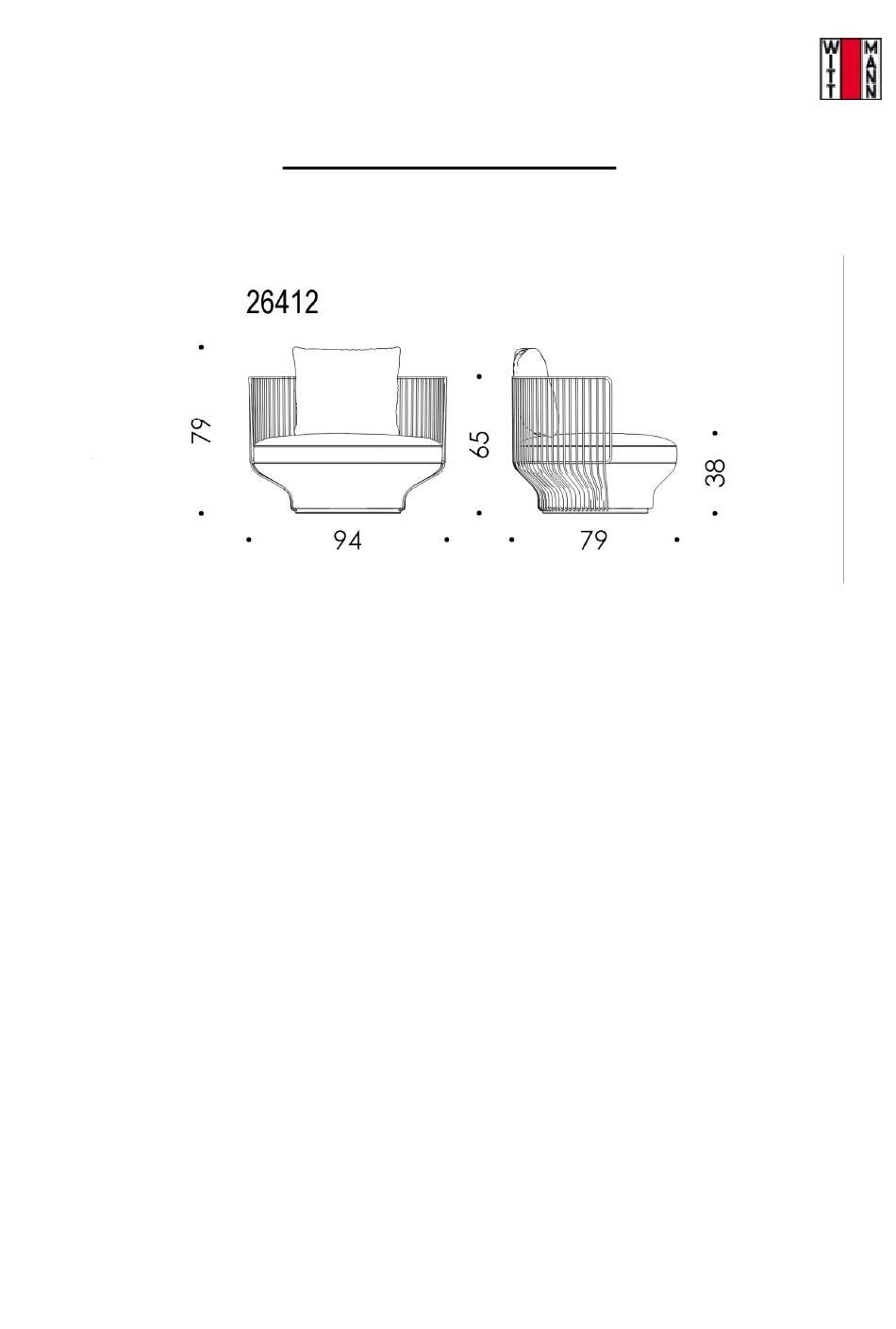

Wittmann Paradise Bird 26412 Assembly Instruction

Paradise Bird backrest frame
Assembly instructions for replacing the Paradise Bird backrest frame:
1. Turn the armchair upside down carefully.
2. Loosen the fastening screws from the turntable with a hexagonal wrench.
3. Remove the turntable and loosen the screws from the backrest frame.
4. Put the armchair back in ist upright position
5. Remove the upper part of the seat. Carefully lift the upper part of the seat to
loosen the dowel connection that connects the upper part of the seat to the base
part. Use a flat tool (flat-head screwdriver) for this purpose.
6. Loosen the screws of the backrest frame on the upper side of the seat base.
7. You can now replace the backrest frame.
8. The assembly is done in the reverse order.
Assembly instruction for:
Wittmann Möbelwerkstätten GmbH
