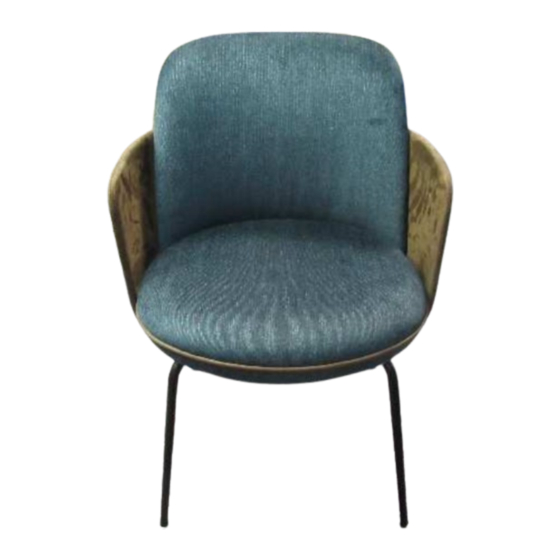

Wittmann Merwyn 29364 Assembly Instructions

Merwyn chair - Armrest shell assembly instructions

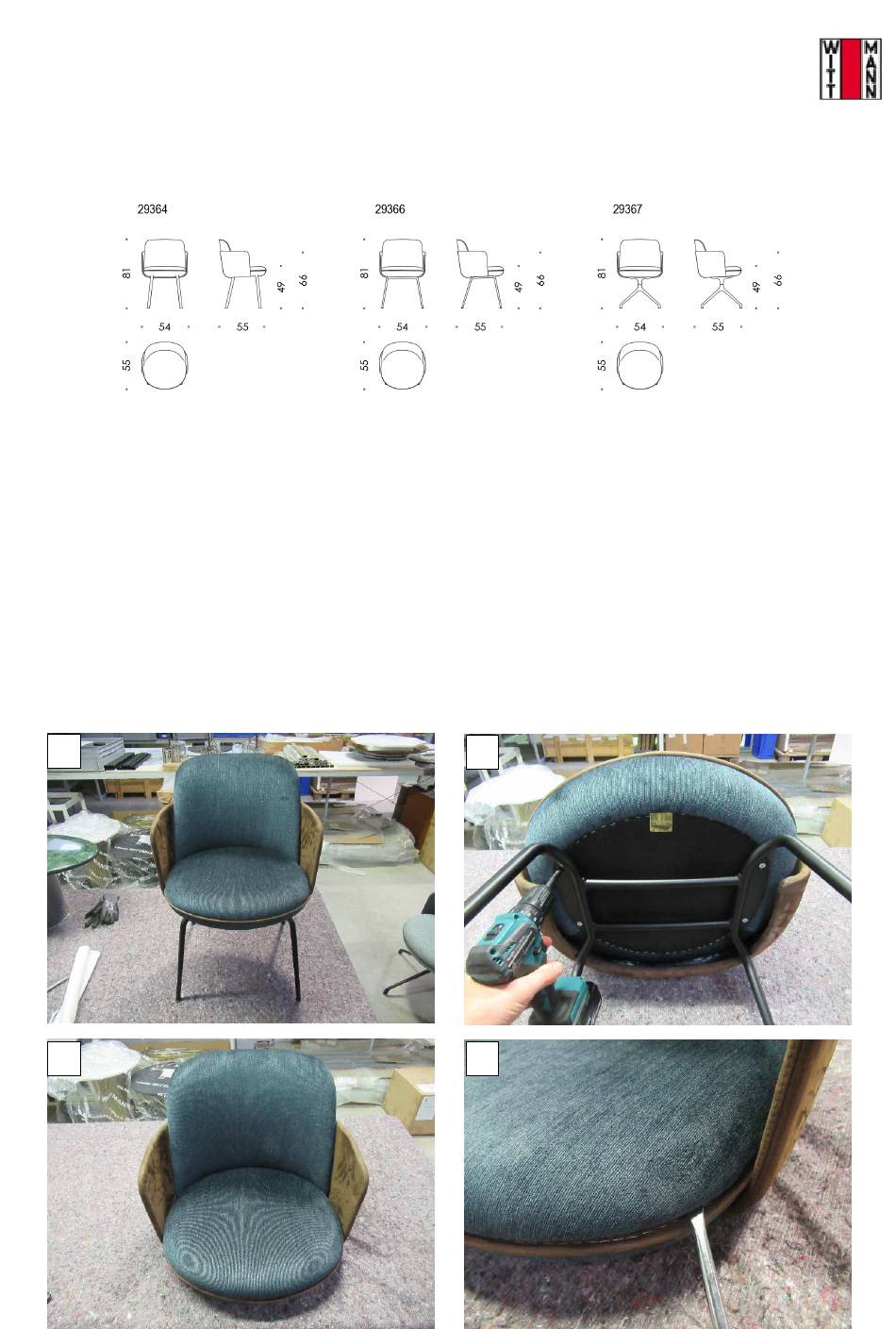

1) Place the chair on a soft and clean surface.
2) Lay the chair on it's back and remove the base frame by taken out the screws.
3) Put the chair in it's upright position.
4) Remove the upper part from the seat by levering it (carefully using a clean screwdriver.
caution: make sure the piping or dowels do not get damaged).
5) Remove the seat cushion.
6) Take out the screws and nut backrest shell.
7) Carefully slightly spread the backrest shell and simultaneously pull out the seat.
8) Take out the grub screws of the backrest shell at the two front threaded sockets
9) The assembly is carried out in reverse order
1
3
Merwyn Chair

Backrest assembly instructions

Wittmann Möbelwerkstätten GmbH
2
4
