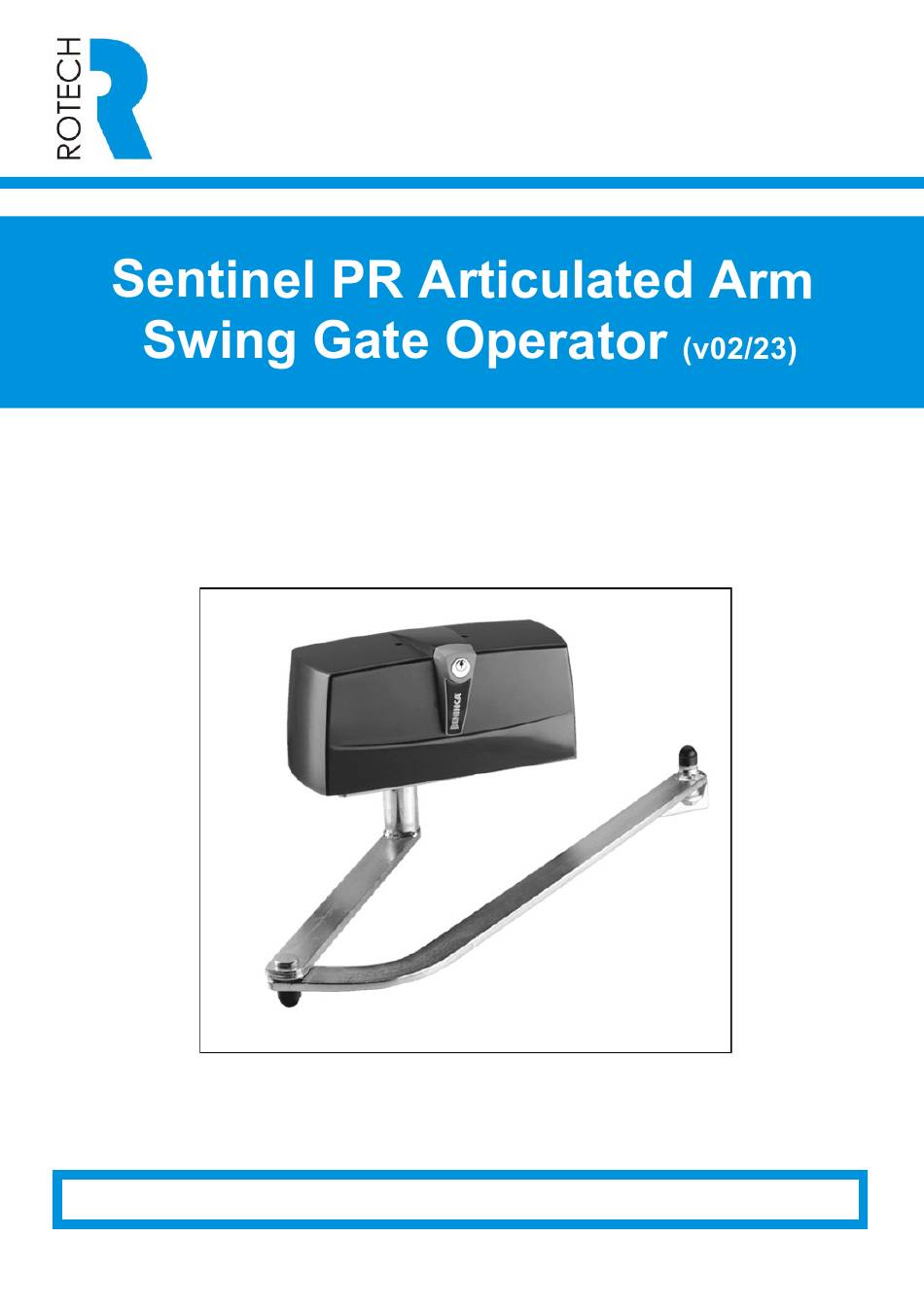

- Page 1 Vehicle Access Control Pedestrian Access Control Safety & Security Equipment t: +61 07 3205 1123 www.rotech.com.au e: info@rotech.com.au Installation Instructions Please read these instructions fully before installing...
- Page 2 Technical data PR.45E PR.45EL PR.45ER PR.45E24 Power supply 230 Vac 50/60 Hz Motor feed 230 Vac 24 Vdc Power drawn 390 W 325 W 390 W 215 W Current drawn 1,75 A 1,75 A 1,45 A Torque 325 Nm 300 Nm...
- Page 3 Delay. Anticipate. Fig.2 Fig.3...
- Page 4 Wire release art. DU.MS45. Cover. Washer 9x24 UNI 6593. S Register. Washer M8 DIN 6798E. Clamp. Screw M8x10 UNI 5739. Handle with plate. Fig.4 Connecting rod Screw M6x10 UNI 5927 Screw M6x16 UNI 5931 Washer Ø6.6x18 UNI 6953 Pin for connecting rod Bracket Lever DU.E2...
- Page 5 Fig.5 Max 130° opening. *160 *181 * When opening it’s necessary that the arm has at least the signaled space. Fig.6...
- Page 6 Fig.7 Fig.8...
- Page 7 N.B.: The power cables must be kept separated from the auxiliary cables. PR.45E / L / R 4x1,5mm PR.45E24 2x1,5mm + 3x0,5mm Legend: 1 Motoreducer PREMIER 2 Photo-electric cells FTC/FTM 3 Key selector CH (external) or digital keyboard 4 Flash-light LAMP...
-
Page 8: General Features
As regards the torque adjustments and the operating modes, please read instructions given in the control unit manual. To adjust the limit switches (Fig. 3) The PR.45E unit is equipped with built-in limit switches for both opening and closing phases. Proceed as follows: • Release the actuator (see paragraph “Release by hand”) •... - Page 9 • Tighten the fixing screws of the cams. Note: The PR.45E /R/L (230Vac) models feature a thrust of some seconds on the stoppers without damaging the gear motor. If required, it is therefore possible to select the timed operation, thus excluding the limit switches.
- Page 10 PR.45E - PR.45EL Code Description Pos. 9686355 Cover 9686129 Plate 9686158 Limit stop cam 9686168 Shaft 9686170 Gear 9686169 Gasket 9686132 Output shaft 9686354 Blister 9686011 Gear 9686356 Release lever 9686357 Plate 9686358 Bracket 9686131 Motor cup 9686133 Motor cup...
- Page 11 Cod. PR.45ER Code Description Pos. 9686355 Cover 9686129 Plate 9686158 Limit stop cam 9686134 Shaft 9686959 Gear 9686169 Gasket 9686132 Output shaft 9686354 Blister 9686011 Gear 9686356 Release lever 9686131 Motor cup 9686357 Plate 9686358 Bracket...
- Page 12 PR.45E Code Description Pos. 9686355 Cover 9686129 Plate 9686158 Limit stop cam 9686170 Gear 9686169 Gasket 9686132 Output shaft 9686354 Blister 9686011 Gear 9686356 Release lever 9686167 Motor 9686357 Plate 9686358 Bracket...
-
Page 13: Maintenance
PREMIER User’s handbook Customized key C Lever L Safety rules • Do not stand in the movement area of the door. • Do not let children play with controls and near the door. • Should operating faults occur, do not attempt to repair the fault but call a qualified technician. Manual and emergency operation To manually open or close the door in case of power failure or faults, two solutions are possible: •... -
Page 14: Ec Declaration Of Conformity
89/336/EEC, according to the following harmonised regulations: EN 61000-6-2:2005, EN 61000-6-3:2007. Herewith declares that: the operator for hinged gates model PR.45E - PR.45EL - PR.45ER. is complying with provisions set forth by the following other EC Directive: - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004, on the harmonisation of the laws of Member States relating to electromagnetic compatibility and which cancels Directive 89/336/EEC, according to the following harmonised regulations: EN 61000-6-2:2005, EN 61000-6-3:2007.
