Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................

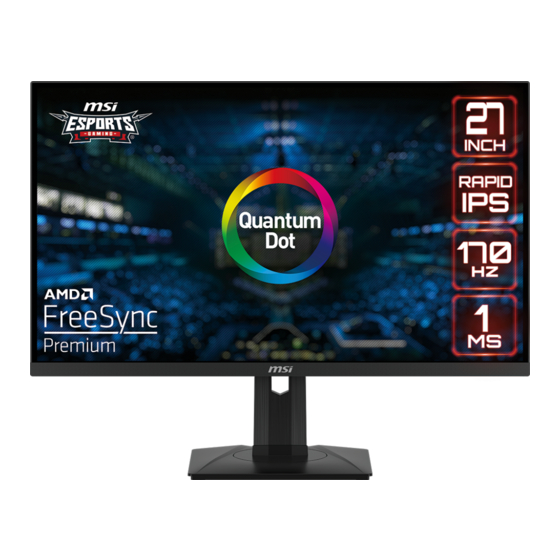

Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor G274QPF-QD Documentation Quick Start Guide Stand with Screw(s) Stand Base with Screw(s) Accessories...
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4.
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ ∙ Please slightly tilt the monitor backwards before pivoting it. -5° 20° 130mm 45°...
Page 7
Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button & Navi Key Cable Routing Hole Power Jack Headphone Jack HDMI™...
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5.
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙...
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision ∙ MPRT ∙ Low Blue Light ∙ HDCR ∙ Brightness ∙ Contrast ∙ Color Temperature ∙ PIP/PBP ∙ OSD Menus...
Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode Premium Color ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode type. Racing Night Vision ∙...
Page 12
1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the OK Button to confirm and Right Top apply your Refresh Rate Location. ∙ This monitor follows and works at the Left Bottom Operating System’s preset Screen Right...
1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status » MPRT Set to OFF Set to Auto » Screen Size 1:1 (adjustable) Set to OFF » PIP/PBP (adjustable) Professional 1st Level Menu...
1st Level Menu 2nd Level Menu Description MPRT ∙ Activating MPRT will affect: Affected Function Function Status » Response Time Unable to select » Brightness » Adaptive-Sync Set to OFF » HDCR Set to Auto » Screen Size 1:1 (adjustable) Set to OFF »...
1st Level Menu 2nd/3rd Level Menu Description Color Cool ∙ Use Up or Down Button to select and Temperature preview mode effects. Normal ∙ Press the OK Button to confirm and apply your mode type. Warm Customization R (0-100) G (0-100) B (0-100) Screen Size Auto...
PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ∙ PIP (Picture in Picture) allows users to simultaneously display multiple Source HDMI™ 1 video sources on one screen. One HDMI™ 2 program is displayed on the full screen at the same time as one or more other programs are displayed in Type C inset windows.
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Screen Assistance Alarm Clock Input Source PIP/PBP Mode Refresh Rate Info. On Screen Night Vision Setting 1st Level Menu 2nd Level Menu...
Page 18
1st Level Menu 2nd Level Menu Description Transparency ∙ Users can adjust Transparency in any mode. OSD Time Out 5~30s ∙ Users can adjust OSD Time Out in any mode. Power Button ∙ When set to OFF, users can press the power button to turn off the monitor.
Specifications Monitor G274QPF-QD Size 27 inch Curvature Flat Panel Type Rapid IPS Resolution 2560 x 1440 Aspect Ratio 16:9 Brightness ∙ SDR: 300 nits (typ.) ∙ HDR Peak: 400 nits Contrast Ratio 1000:1 Refresh Rate 170Hz (Default: 165Hz) Response Time ∙...
Page 20
Monitor G274QPF-QD Kensington Lock VESA Mounting ∙ Plate Type: 75 x 75 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 613.49 x 532.08 x 196.48 mm Weight 6.0 Kg (Net)
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
Page 24
California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
Page 27
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
