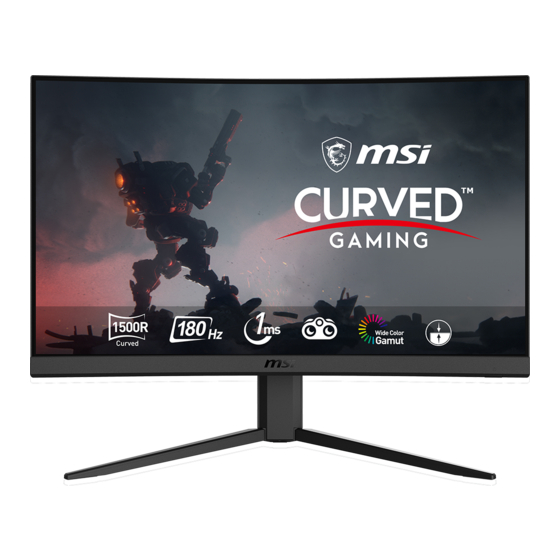

MSI G24C4 E2 User Manual
  1. Manuals
  2. Brands
  3. MSI Manuals
  4. Monitor
  5. G24C4 E2
  6. User manual
MSI G24C4 E2 User Manual

MSI G24C4 E2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G Series
LCD Monitor
G24C4 E2 (3BA0)
G24C6 E2 (3BA0)
G24C6P E2 (3BA0)
User Guide

Advertisement

Table of Contents
loading

Related Manuals for MSI G24C4 E2

Summary of Contents for MSI G24C4 E2

  • Page 1 G Series LCD Monitor G24C4 E2 (3BA0) G24C6 E2 (3BA0) G24C6P E2 (3BA0) User Guide...

  • Page 2: Table Of Contents

    Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 7 Monitor Overview ....................9 Connecting the Monitor to PC ................13 OSD Setup ........................15 Navi Key ........................ 15 Hot Key ........................17 OSD Menus........................

  • Page 3: Getting Started

    This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor G24C4 E2, G24C6 E2 G24C6P E2 Documentation Quick Start Guide Stand with Screw(s)

  • Page 4: Installing The Monitor Stand

    3. Connect the base to the stand and tighten the base screw to secure the base. 4. Align and push the stand cover towards the monitor groove until it locks in place. 5. Make sure the stand assembly is properly installed before setting the monitor upright. G24C4 E2...
  • Page 5 G24C6 E2...
  • Page 6 G24C6P E2 ⚠ Important Place the monitor on a soft, protected surface to avoid scratching the display panel. ∙ Do not use any sharp objects on the panel. ∙ This product comes with NO protective film to be removed by the user! Any ∙...

  • Page 7: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. G24C4 E2 -5° 20° G24C6 E2 -5° 20°...
  • Page 8 G24C6P E2 -5° 20° 130 mm...

  • Page 9: Monitor Overview

    Monitor Overview G24C4 E2...
  • Page 10 G24C6 E2...
  • Page 11 G24C6P E2...
  • Page 12 Power Button & Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Navi Key Kensington Lock Power Jack HDMI™...

  • Page 13: Connecting The Monitor To Pc

    4. Connect the external power supply to the monitor power jack. (Figure B) 5. Plug the power cord into the electrical outlet. (Figure C) 6. Turn on the monitor. (Figure D) 7. Power on the computer and the monitor will auto detect the signal source. G24C4 E2...
  • Page 14 G24C6 E2 G24C6P E2...

  • Page 15: Osd Setup

    This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. G24C4 E2...
  • Page 16 G24C6 E2 G24C6P E2...

  • Page 17: Hot Key

    Up/ Down/ Left/ Right: ∙ selecting function menus and items ∙ adjusting function values ∙ entering into/exiting from function menus Press (OK): ∙ launching the On-Screen Display (OSD) ∙ entering submenus ∙ confirming a selection or setting Hot Key ∙ Users may enter into preset function menus by moving the Navi Key up, down, left or right when the OSD menu is inactive.

  • Page 18: Osd Menus

    OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ Use Up or Down Button to select and preview mode effects. ∙ Press the OK Button to confirm and apply your mode type. Racing Night Vision ∙...
  • Page 19 1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the OK Button to confirm and apply your Refresh Right Top Rate Location. Left Bottom ∙ This monitor follows and works at the Operating System’s preset Screen Refresh Rate.

  • Page 20: Professional

    Professional 1st Level Menu 2nd Level Menu Description Pro Mode User ∙ Use Up or Down Button to select and preview mode effects. Anti-Blue ∙ Press the OK Button to confirm and apply your mode type. Movie Office sRGB Low Blue Light ∙...

  • Page 21: Input Source

    1st Level Menu 2nd/3rd Level Menu Description Color Temperature Cool ∙ Use Up or Down Button to select and preview mode effects. Normal ∙ Press the OK Button to confirm and apply Warm your mode type. ∙ Users can adjust Color Temperature in Customization R (0-100) Customization mode.

  • Page 22: Setting

    Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the OK Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own Français language setting will override the factory. When users set Reset to Yes, Language will not be Deutsch changed.

  • Page 23: Specifications

    Specifications Model G24C4 E2 G24C6 E2 G24C6P E2 Size 23.6 inch Curvature 1500R Panel Type Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightness 250 nits (typ.) Contrast Ratio 3000:1 Refresh Rate 180 Hz 1ms (MPRT) Response Time 4ms (GTG) ∙...
  • Page 24 Model G24C4 E2 G24C6 E2 G24C6P E2 ∙ Temperature: 0℃ to 40℃ Operating ∙ Humidity: 20% to 90%, non-condensng ∙ Altitude: 0 ~ 5000m Environment ∙ Temperature: -20℃ to 60℃ Storage ∙ Humidity: 10% to 90%, non-condensing * Based on CIE1976 test standards.

  • Page 25: Preset Display Modes

    Preset Display Modes ⚠ Important All information is subject to change without prior notice. G24C4 E2, G24C6 E2, G24C6P E2 Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024...

  • Page 26: Troubleshooting

    Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.

  • Page 27: Safety Instructions

    ∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
  • Page 28 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.

  • Page 29: Tüv Rheinland Certification

    TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.

  • Page 30: Regulatory Notices

    1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
  • Page 31 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
  • Page 32 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
