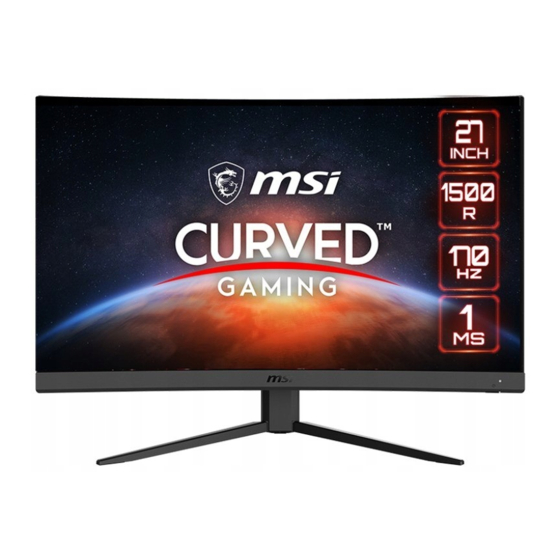

- Page 1 G Series LCD Monitor G27C4 E2 (3CA9) G27CQ4 E2 (3CB0) G27CQ4P E2 (3CB0) G32C4 E2 (3DA6) G32CQ4 E2 (3DB5) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 7 Monitor Overview ....................8 Connecting the Monitor to PC ................12 OSD Setup ........................14 Navi Key ........................ 14 Hot Key ........................14 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents G27C4 E2, G27CQ4 E2, G27CQ4P E2, Monitor G32C4 E2, G32CQ4 E2 Documentation... -
Page 4: Installing The Monitor Stand
4. Align and push the stand cover towards the monitor groove until it locks in place. 5. Make sure the stand assembly is properly installed before setting the monitor upright. G27C4 E2, G27CQ4 E2, G32C4 E2, G32CQ4 E2 Getting Started... - Page 5 G27CQ4P E2 ⚠ Important ∙ Place the monitor on a soft, protected surface to avoid scratching the display panel. Do not use any sharp objects on the panel. ∙ Getting Started...
- Page 6 The groove for installing the stand bracket can also be used for wall mount. Please ∙ contact your dealer for proper wall mount kit. ∙ This product comes with NO protective film to be removed by the user! Any mechanical damages to the product including removal of the polarizing film may affect the warranty! Getting Started...
-
Page 7: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. G27C4 E2, G27CQ4 E2, G32C4 E2, G32CQ4 E2 G27CQ4P E2 130mm Getting Started... -
Page 8: Monitor Overview
Monitor Overview G27C4 E2, G32C4 E2 Getting Started... - Page 9 G27CQ4 E2, G32CQ4 E2 Getting Started...
- Page 10 G27CQ4P E2 Power Button Navi Key Kensington Lock Power Jack Getting Started...
- Page 11 HDMI Port DisplayPort Headphone Jack Cable Routing Hole Getting Started...
-
Page 12: Connecting The Monitor To Pc
5. Plug the power cord into the electrical outlet. (Figure C) 6. Turn on the monitor. (Figure D) 7. Power on the computer and the monitor will auto detect the signal source. G27C4 E2, G27CQ4 E2, G32C4 E2, G32CQ4 E2 Getting Started... - Page 13 G27CQ4P E2 Getting Started...
-
Page 14: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 15: Osd Menus
OSD Menus G27C4 E2, G32C4 E2 G27CQ4 E2, G27CQ4P E2, G32CQ4 E2 OSD Menus... -
Page 16: Gaming
⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision ∙ MPRT ∙ Low Blue Light ∙ HDCR ∙ Brightness ∙ Contrast ∙ Color Temperature ∙ Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙... - Page 17 Left power loss and reconnection. Bottom Right Bottom Customize (G27CQ4 E2, G27CQ4P E2, G32CQ4 E2) 15:00 00:01 ~ 99:59 30:00 45:00 60:00 Screen None ∙ Users can adjust Screen Assistance Assistance in any mode. (G27C4 E2, G32C4 E2) OSD Menus...
-
Page 18: Professional
1st Level Menu 2nd/3rd Level Menu Description Smart Icon None ∙ Through AI algorithm, this function Crosshair enhances the visibility of in-game crosshair. (G27CQ4 E2, G27CQ4P E2, ∙ Users can select the color and G32CQ4 E2) position of the crosshair. Color White Auto... -
Page 19: Image
1st Level Menu 2nd Level Menu Description HDCR ∙ HDCR enhances image quality by increasing the contrast of images. ∙ When HDCR is set to ON, Brightness will be grayed out. ∙ HDCR and MPRT cannot be enabled simultaneously. MPRT ∙... -
Page 20: Input Source
1st Level Menu 2nd/3rd Level Menu Description Color Cool ∙ Use Up or Down Button to select Temperature and preview mode effects. Normal ∙ Press the Middle Button to confirm and apply your mode Warm type. Customization R (0-100) G (0-100) B (0-100) Screen Size Auto... -
Page 21: Navi Key
∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Screen Assistance (G27C4 E2, G32C4 E2) Smart Crosshair (G27CQ4 E2, G27CQ4P E2, G32CQ4 E2) Alarm Clock Input Source Refresh Rate Info. On Screen... - Page 22 1st Level Menu 2nd Level Menu Description OSD Time Out 5~30s ∙ Users can adjust OSD Time Out in any mode. Power Button ∙ When set to OFF, users can press the power button to turn off the monitor. Standby ∙...
-
Page 23: Specifications
Specifications G27C4 E2, G27CQ4 E2, G27CQ4P E2 Monitor G27C4 E2 G27CQ4 E2 G27CQ4P E2 Size 27 inch Curvature 1500R Panel Type Resolution 1920 x 1080 2560 x 1440 Aspect Ratio 16:9 Brightness (nits) 250 nits (Typ.) Contrast Ratio 3000:1 Refresh Rate... - Page 24 Monitor G27C4 E2 G27CQ4 E2 G27CQ4P E2 VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 611.5 x 457.9 x 225.4 mm...
- Page 25 G32C4 E2, G32CQ4 E2 Monitor G32C4 E2 G32CQ4 E2 Size 31.5 inch Curvature 1500R Panel Type Resolution 1920 x 1080 2560 x 1440 Aspect Ratio 16:9 Brightness (nits) 250 nits (Typ.) Contrast Ratio 3000:1 Refresh Rate 170Hz (Default: 165Hz) Response Time 4ms (GTG) MPRT ∙...
- Page 26 Monitor G32C4 E2 G32CQ4 E2 VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 709.4 x 509.4 x 248.7 mm Weight 6.2 Kg (Net)
-
Page 27: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. G27C4 E2, G32C4 E2 Standard Resolution HDMI 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz... - Page 28 G27CQ4 E2, G27CQ4P E2, G32CQ4 E2 Standard Resolution HDMI 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz 2560x1440 @60Hz @120Hz @144Hz @165Hz...
-
Page 29: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 30: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 31 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 32: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 33: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 34 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 35 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
