BZBGEAR BG-UM88-150L-KIT User Manual

8x8 4k 18gpbs uhd hdmi/hdbaset matrix switcher with 2-way ir/advance edid/downscaling/ip and rs-232 control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UM88-150L-KIT
8X8 4K 18Gpbs UHD HDMI/HDBaseT Matrix Switcher with 2-Way
IR/Advance EDID/Downscaling/IP and RS-232 Control
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UM88-150L-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for BZBGEAR BG-UM88-150L-KIT

Summary of Contents for BZBGEAR BG-UM88-150L-KIT

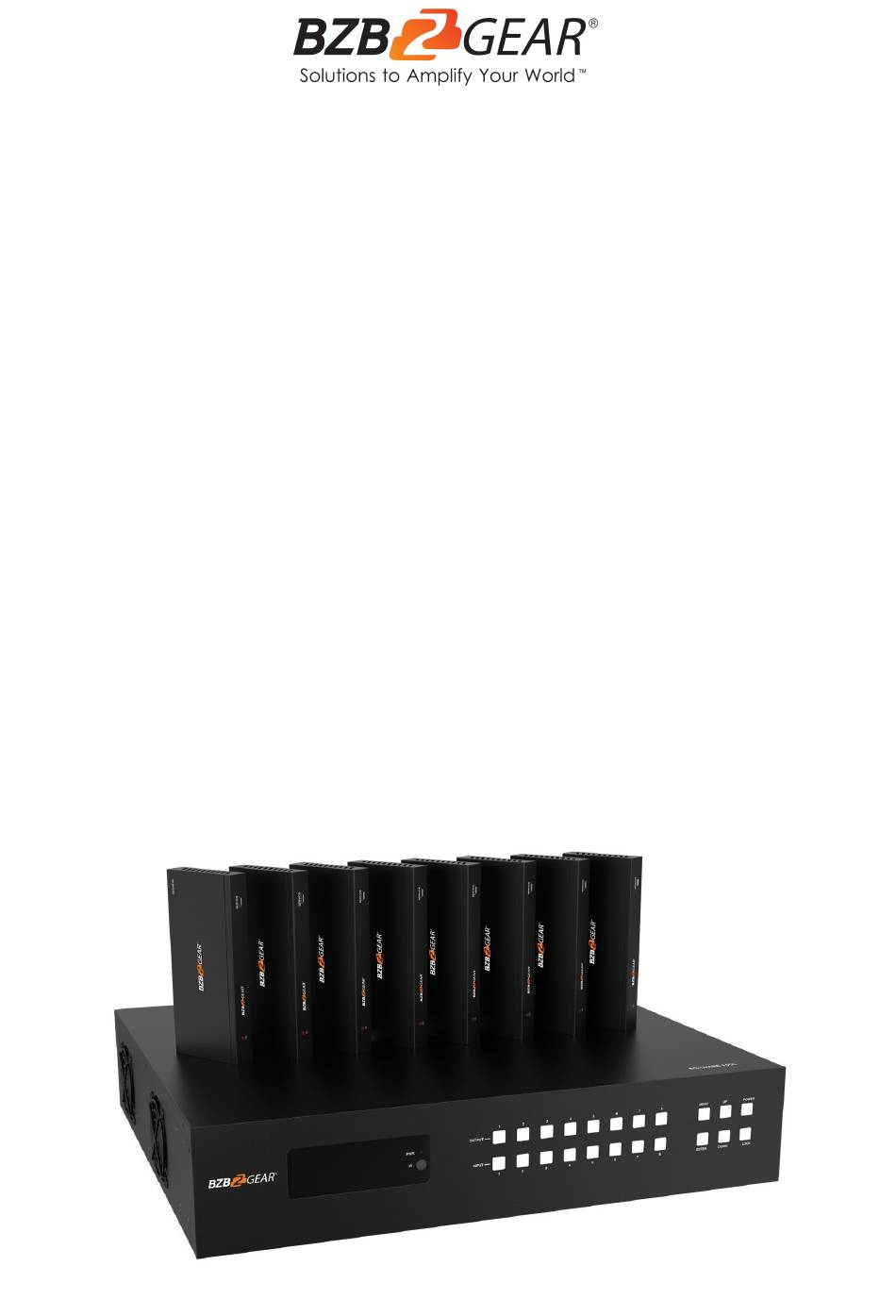

  • Page 1 BG-UM88-150L-KIT 8X8 4K 18Gpbs UHD HDMI/HDBaseT Matrix Switcher with 2-Way IR/Advance EDID/Downscaling/IP and RS-232 Control User Manual...
  • Page 2 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions HDBaseT Receiver Panel IR Remote IR Control System IR Cable Pin Assignment EDID Management Web GUI User Guide Video Page RS-232 Control Commands...

  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

    IR signal follows the HDMI video channel at the HDBaseT receiver end. The BG-UM88-150L-KIT can be controlled via an intuitive set of front panel buttons and built-in OLED screen. It also supports control via an included IR remote, RS-232, LAN, and Web GUI.

  • Page 6: Packing List

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Packing List ● 1 x 18Gbps 8x8 HDBaseT(150M) Matrix ● 8 x 3-pin Phoenix Connectors & 8 x 5-pin Phoenix Connectors ● 8 x HDBaseT Receiver ● 9 x IR Blaster cable (1.5 meters) ● 1 x Matrix IR Remote ●...

  • Page 7: Specifications

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.x Video Bandwidth 18Gbps Video Resolution Up to 4K@50/60Hz (4:4:4) Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）...

  • Page 8: Operation Controls And Functions

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Operation Controls and Functions Matrix Panel Front Panel Name Function Description OLED screen Display matrix switching status, input / output port, EDID, Baud rate, and IP Address. Power LED The LED will illuminate green when the product is working normally and red when the product is in standby.
  • Page 9 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Rear Panel Name Function Description IR OUT (1-8/ ALL) Connect to the IR blaster cable, the IR emit signal is from the “IR IN” port of the HDBaseT ports Receiver. Connected to the IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the IR IN (1-8/ALL) ports HDBaseT Receiver.

  • Page 10: Hdbaset Receiver Panel

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL HDBaseT Receiver Panel Name Function Description Power LED Red LED will be on when the receiver is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. DC 24V Note: The Matrix supports power over cable (PoC), which means that the receiving unit does not need a power supply.

  • Page 11: Ir Remote

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL IR Remote Power on or Standby: Power on the Matrix or set it to standby mode. Input: 1/2/3/4/5/6/7/8: Select input source button. ◀ ▶ : Select the last or next input source button. Output: 1/2/3/4/5/6/7/8 button: Select output source button.
  • Page 12 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL At the Matrix end (Local end): the IR signal is one-to-one transmission. For example, the IR IN 1 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 1, and the IR IN 3 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 3.
  • Page 13 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL At HDBaseT receiver (Remote end): IR signal follows the video switch and changes. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2, so the IR input signal of the HDBaseT Receiver 1 will emit to the IR OUT 2 port of the Matrix.

  • Page 14: Ir Cable Pin Assignment

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL IR Cable Pin Assignment · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 15: Edid Management

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through the on-panel buttons, RS-232 control, or Web GUI.
  • Page 16 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL EDID Settings: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...

  • Page 17: Web Gui User Guide

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Web GUI User Guide The Matrix can be controlled through a web interface and its operation is shown below. Step 1: Find the current IP Address. The default IP address is 192.168.1.100. 1. Find the IP address via the panel buttons. On the initial OLED display, press the “MENU”...
  • Page 18 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Step 4: Double click “Internet Protocol Version 4 (TCP/IPv4)” Step 5: Select “Use the following IP address” input a non-conflicting IP address that matches the scheme of your matrix (default 192.168.1.#). In the example below 192.168.1.200 is used as the IP address, 255.255.255.0 as the Subnet mask, and then click on “OK.”...
  • Page 19 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Note: The IP address of the computer and matrix should be in the same network segment. If the matrix's IP address is 192.168.10.100, the computer's IP should be 192.168.10.X where X is 1~255 except 100. Step 6: Input the current IP address of the Matrix into the PC's browser to access the Web interface.
  • Page 20 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Status Page The Status page provides basic information about the product such as model, installed firmware version, and the network information of the device. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906...

  • Page 21: Video Page

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Video Page You can do the following operations on the Video page: 1. Output: The current device’s OUTPUT port. You can select a signal source for it. 2. Input: You can click the drop-down menu to select signal source for the corresponding OUTPUT port.
  • Page 22 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Input Page You can do the following operations on the Input page: 1. Inputs: Input channel of the device. 2. Active: It indicates whether the channel is connected to a signal source. 3. Name: You can modify the input channel name by entering up to 12 characters..
  • Page 23 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Output Page You can do the following operations on the Output page: 1. Outputs: Output channel of the device. 2. Name: The current output channel’s name. You can modify it by entering up to 12 characters.
  • Page 24 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL CEC Page 1. Input Control: You can control the operation of each input source by pressing the icons on the page. You can control multiple inputs simultaneously.. 2. Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
  • Page 25 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Network Page Set the Default Network Click “Set Network Defaults” button and there will be a prompt, as shown in the following figure: Click “OK” and the matrix will automatically search for the default IP. After the search is completed, it will switch to the login page with the default network settings.
  • Page 26 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Modify User Password Click the “User” button, enter the correct Old Password, a New Password, Confirm the New Password, and then click “Save”. After successful modification, there will be a prompt, as shown in the following figure: Rules for changing passwords: 1.
  • Page 27 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL System Page 1. Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. 2. Beep: Click to turn on/off the settings change confirmation beep. 3. LCD: You can turn on/off the LCD, and set the active display time (15s/30s/60s).

  • Page 28: Rs-232 Control Commands

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL RS-232 Control Commands The product supports RS-232 control. You will need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 29 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Default Command Code Function Description Example Feedback Setting Initialization Finished! FW version x.xx.xx s beep z! Enable/Disable buzzer function, s beep 1! beep on beep on z=0~1(z=0 beep off, z=1 beep on) beep off r beep!
  • Page 30 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Default Command Code Function Description Example Feedback Setting r hdbt y scaler ! Get hdbt output y port output mode r hdbt 1 scaler ! hdbt output 1 set to bypass y=0~8(0=all) mode EDID Setting s edid in x from z! Set input x EDID from default EDID z,...
  • Page 31 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Default Command Code Function Description Example Feedback Setting s cec in x next! set input x next by CEC, x=0~8(0=all s cec in 1 next! input 1 next operation input) s cec hdmi out y set hdmi output y power on by CEC,...
  • Page 32 BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Default Command Code Function Description Example Feedback Setting s tcp/ip port x! Set network TCP/IP port (x=1~65535) s tcp/ip port 8000! Set TCP/IP port:8000 r tcp/ip port! Get network TCP/IP port r tcp/ip port! TCP/IP port:8000...

  • Page 33: Application Example

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 34: Tech Support

    Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 35: Warranty

    BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty.

  • Page 36: Copyright

    PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
