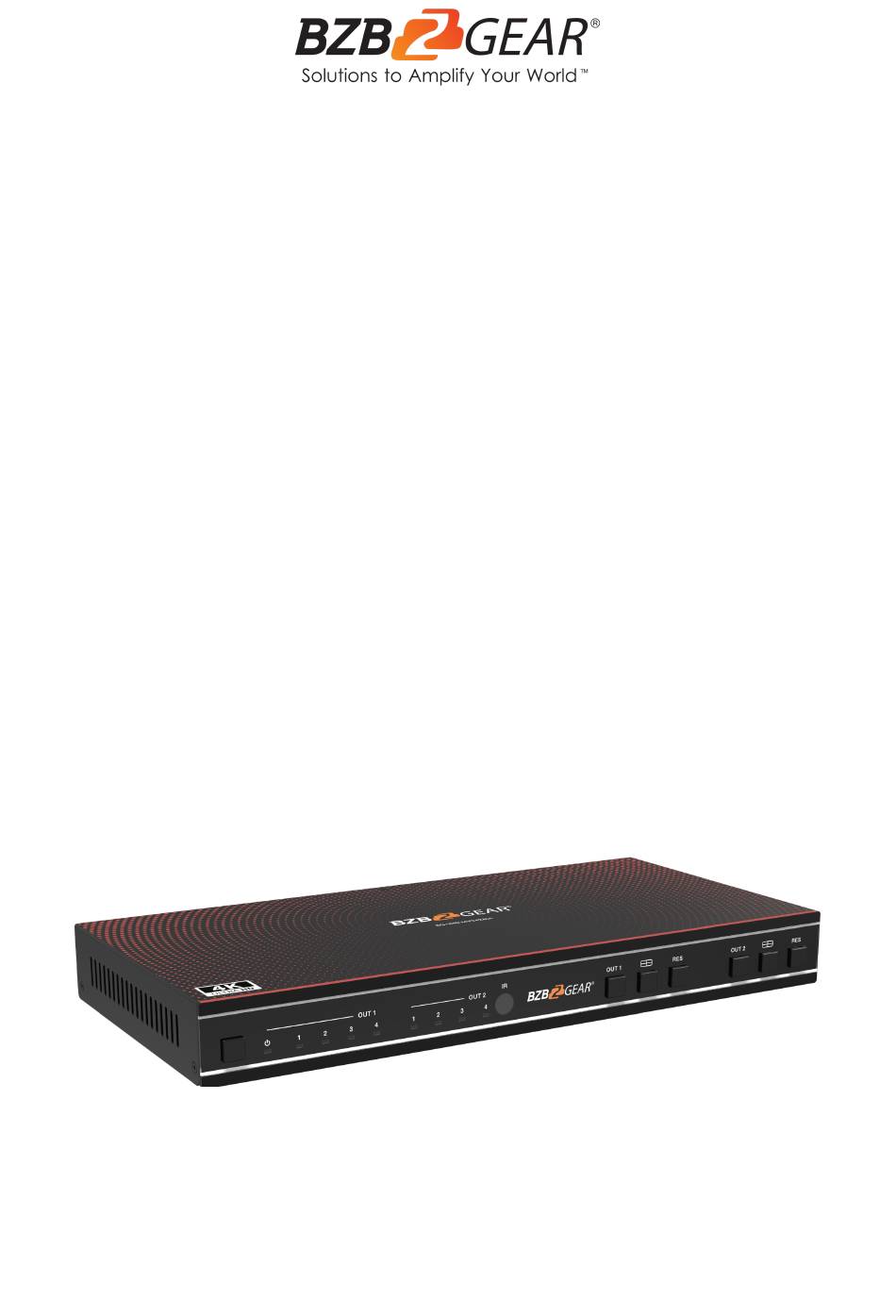

- Page 1 BG-UHD-MVS42MA 4K60 4x2 Multiviewer Seamless UHD Video Matrix Switcher User Manual...
- Page 2 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote EDID Settings Video & Audio Multiview OSD Menu Navigation RS-232 Command Application Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
Users can manage each input and create combinations of the four inputs on two displays as well as adjust the position of the inputs. The BG-UHD-MVS42MA supports 8 display modes and users can freely switch 4-channel HD input signals. This product supports a full range of input video resolutions up to 4K@60 as well as audio de-embedding via RCA or S/PDIF optical for external audio distribution systems. -
Page 6: Specifications
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60 4:4:4 IR Level 5Vp-p IR Frequency 38KHz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description ▪Short press this button to power on the device. Power button ▪Long press this button for 1 second to enter the standby mode. The Power LED will illuminate green when the product is powered on and red Power LED when the product is in standby. - Page 8 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Rear Panel Name Function Description L/R OUT 1 PCM 2.0 Analog audio output port. OPTICAL OUT 1 Optical fiber digital audio output port. Connect to an HDMI display device such as a TV or Monitor with HDMI HDMI OUT 1 cables.
-
Page 9: Ir Remote
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL IR Remote 1. Power button: Press this button to power on the switcher or set it to standby mode. 2. OUT 1/OUT 2 buttons: HD 1/2/3/4: Press these buttons to select an input source on single screen display mode, and the corresponding input LED on the front panel will illuminate green. -
Page 10: Edid Settings
USER1 1920x1200,Stereo Audio 2.0 Video & Audio The BG-UHD-MVS42MA supports multiple video input resolutions up to 3840x2160@60 and supports multiple audio formats (PCM2.0/5.1/7.1CH, Dolby Digital/Plus/ EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio) pass-through functionality via HDMI cables. -
Page 11: Multiview
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Multiview The switcher supports 8 multiview display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2) Users can select different operations for different Multiview modes as follows: SINGLE: Inputs selectionPIP: Inputs selection, Sub window size and position selection... - Page 12 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 3xWIN Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 MODE 1, 2 Aspect Full, 16:9 Multiview Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 4xWIN Win4 Select HDMI1,HDMI2,HDMI3,HDMI4 MODE 1, 2 Aspect Full,16:9 Audio Select...
-
Page 13: Rs-232 Command
PRODUCT MANUAL RS-232 Command The BG-UHD-MVS42MA supports RS-232control commands. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then open a Serial Command tool on PC to send ASCII commands to control the product. - Page 14 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback Output Setting Set Output y Resolution (y=1~2, x=1~14) y=1. output 1 y=2. output 2 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, 5. 3840x2160p30, s output y res x! s output 1 res 3! output 1 resolution: 3840x2160p60 6.
- Page 15 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=1~19) 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444,HD Audio 7.1 4. 4K2K30_444,Stereo Audio 2.0 5. 4K2K30_444,Dolby/DTS 5.1 6. 4K2K30_444,HD Audio 7.1 7.
- Page 16 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback Get output y audio mute on/off (y=1~2) r output y audio mute! r output 1 audio mute! output 1 audio mute off 1. output 1 2. output 2 Single Screen Mode Setting...
- Page 17 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback Select output z one input for one display window for the current Multiview mode. (z=1~2) 1. output 1 2. output 2 (x=1~4) 1. window 1 s output z window x in y! s output 1 window 1 in 1! output 1: window 1 select HDMI 1 2.
- Page 18 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback Get output y PIP window size (y=1~2) r output y PIP size! r output 1 PIP size! 1. output 1 output 1 PIP size large 2. output 2 Set output y PBP windows...
- Page 19 BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Command Code Function Description Example Feedback Get output y triple windows display mode r output y triple mode! (y=1~2) r output 1 triple mode! output 1 triple mode 1 1. output 1 2. output 2 Set output y triple windows display aspect ratio (y=1~2) 1.
-
Page 20: Application Diagram
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Application Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 21: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 22: Warranty
BZBGEAR BG-UHD-MVS42MA PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 23: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 24: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
