Waydoo Flyer ONE Quick start guide
Flashing means waiting for communication; then the
flashing blue light turns to flashing green, indicating that it
enters the charging mode.
CN
1.
When the indictor light on the charger changes
from flashing green to green it means that the
smart battery is fully charged. The battery
usually takes 2 hours to charge. (Note: when the
A
red light flashes on the charger, it means the
device is malfunctioning, please stop charging.)
B
Hydrofoil
The hydrofoil board is the main body and core of the
efoil. The large area of soft cushion makes the
experience better. The streamlined board makes the
overall performance of the product more prominent.
The board reinforced by high quality composite
materials and aluminium alloy.
1. 2. 3.
1.
Side
handle
2. Buckle
lock
3. Battery
Powertrain
The powertrain has a built-in control system,
and the hydrofoil board is inserted to
complete the system connection; the ESC
and the motor are underwater, and the heat
dissipation effect is good, which effectively
improves the product performance; the
whole adopts a quick disassembly structure,
easy assembly, and quick use.
1
4
2
5
6
7
3
1. Integrated port. 2. Bolt
fixing hole 3. Front
wing 4. Quickly install
the mast head. 5.
Support rod. 6.
Propeller guard 7. Tail.
Travel bag and tool bag
Hydrofoil bag and
powertrain package x 1
Hydrofoi l x 1
Powertrai n x 1
Smart battery x 1
Remote control x 1
Remote control chargi n g cabl e x 1
Smart battery charger x 1
M6*24 Hydrofoi l fi x i n g bol t x 2
M6*15 hydrofoi l fi x i n g bol t x 2
3 . Install battery
Mast fi x i n g bol t x 2
4mm hexagon wrench x 1

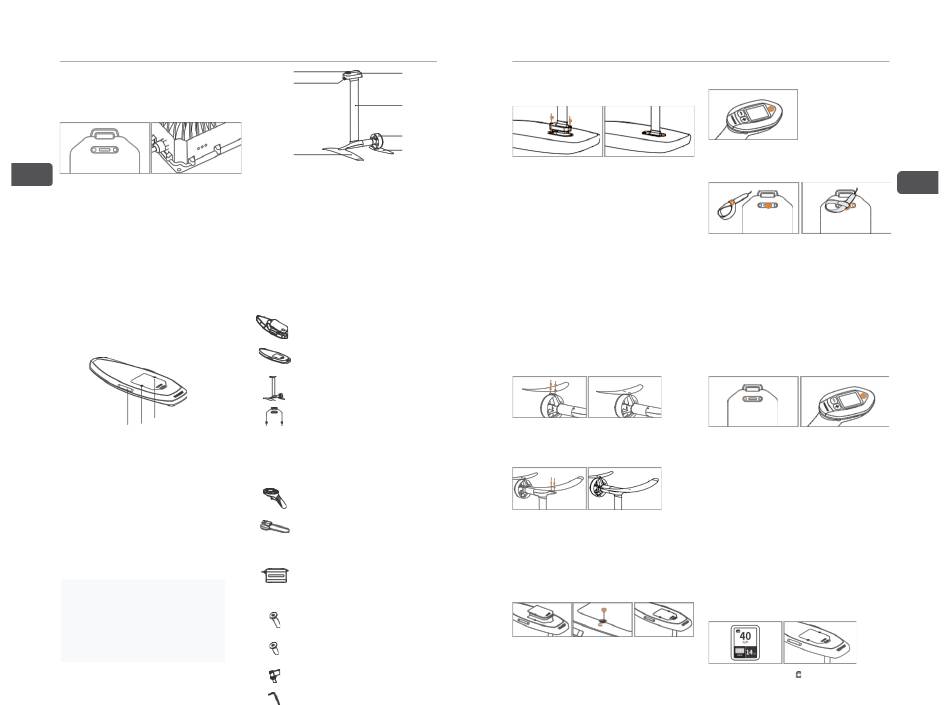

Assembly steps

1 . Mast assembly
1. First turn the hydrofoil over, the insert the
electric power assembly vertically into the
hydrofoil installation port.
2. After inserting the mast head into the base
to make sure it fits, then fix it with L-Shaped
bolts and tighten it.
2 . Hydrofoil assembly
1. Pull the tail wing on the mast and tighten
the two M6*15 bolts clockwise with an L-
shaped hexagonal wrench.
2. Then put the front wing on the mast and
tighten the two M6*24 bolts clockwise with
an L-Shaped hexagonal wrench.
3.
Flip over the hydrofoil and proceed to
the next step.
1.
First turn the lock button and put the battery into the
battery compartment vertically. 2. Use the tool to
rotate 180C to tighten the lock.
Waydoo Flyer ONE Quick start guide
4 . Connect and match
1. The first step, press the main power switch button on the
remote control (5S). Then turn on the remote control
。
2. In the second step, place the A point of
the wrist strap on the battery point B and
then press the battery's power button
(Short press + long press), and wait for the
indicator in the display area to light up
normally, indicating that the battery is
turned on.
3. Short press + long press (2s) the battery
Bluetooth connection
4. Short press + long press (2s) the battery
Bluetooth connection button to prepare for
connection. (Note: after the smart battery is
turned on, please restart the battery within one
minute. 4. The fourth step, simultaneously press
and hold the remote control main power switch
button and speed gear deceleration button for
Bluetooth pairing. When the Bluetooth icon
disappears, it means the pairing is successful.
Note: if it is the second pairing, the fourth step cn
be omitted, and Bluetooth will automatically
connect.
