9.0 Install Mode
To enter Install Mode, press LEARN button and hold for 5 secs until
LED does double flash.
If required, install mode can be used when installing wireless
devices. It reduces the sensitivity of the TR800 so that devices
which work in install mode will work even better in normal mode
(i.e., it provides a margin of safety).
To exit Install Mode, press the LEARN button.
10.0 Deleting Transmitters
To delete all transmitters push LEARN and hold for 20 secs. You
will see that:
(a) After 5 secs, LED does double flash (install mode).
(b) After 15 secs, LED does quick angry flash to warn that
deleting data is imminent.
(c) After 20 secs, LED is on solid and all transmitters have been
deleted.
(d) Release LEARN.

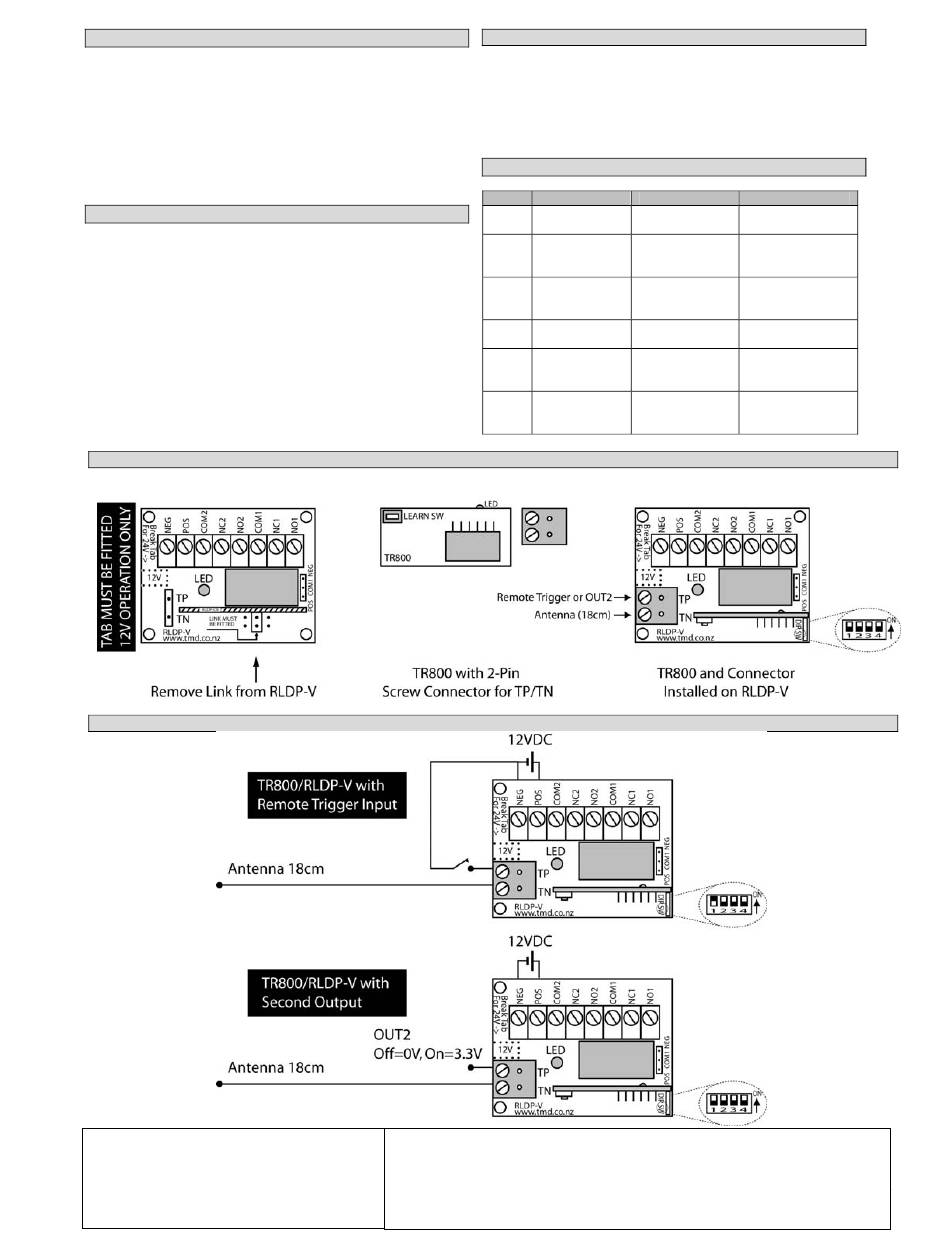

13.0 Installing the TR800-433BM on RLDP-V and RLSPHC-V Relay Boards
14.0 Using TP as Trigger Input or Second Output
Connect Security Products
62 Aitken Terrace
Kingsland
Auckland 1021
New Zealand
Ref: CSP-TR800-433BM-20111202.doc
Ph +64 9 526 1060 Fax +64 9 526 1069
www.csproducts.co.nz
PCB: Rev B.C, S/W: Ver 1.23
11.0 Installation Tips
IMPORTANT. To achieve good performance from the TR800-
433BM:
1. Connect antenna (18cm length) into TN
2. Antenna should be in horizontal plane. Don't curl up!
3. Install away from wires and metal objects.
12.0 LED Operation
State
1 Idle.
2 Receiving data
from learned
transmitter.
3 Receiving data
from unlearned
transmitter.
4 Install mode.
5 Error.
6 EE Corrupt
(transmitter).
Warranty and Disclaimer: All information provided in this document is carefully prepared and offered
in good faith as a guide for the installation, use and servicing of this product. We accept no
responsibility for the incorrect operation, installation or use of this product and reserve the right to
change specifications at any time and without notice. Liability of TMD Consultants, or any party
involved in the design and/or manufacture of this product is limited to the repair or replacement of
Bosch™ Compatible 433MHz Receiver for use with Livewire Relay Boards
faulty product returned to us within 12 months from purchase and specifically excludes consequential
loss or damage. Full terms and conditions are available on request.
LED Comments
Short flash every Normal state when
2 secs. not receiving data.
Single long
flash.
Single short
flash.
Double short Reduced
flash every sec. sensitivity
On with short Data in system
double blink off; area (transceiver
or Double. config) corrupted.
Double long One or more
flash every 2 transmitter record
secs. corrupted.
