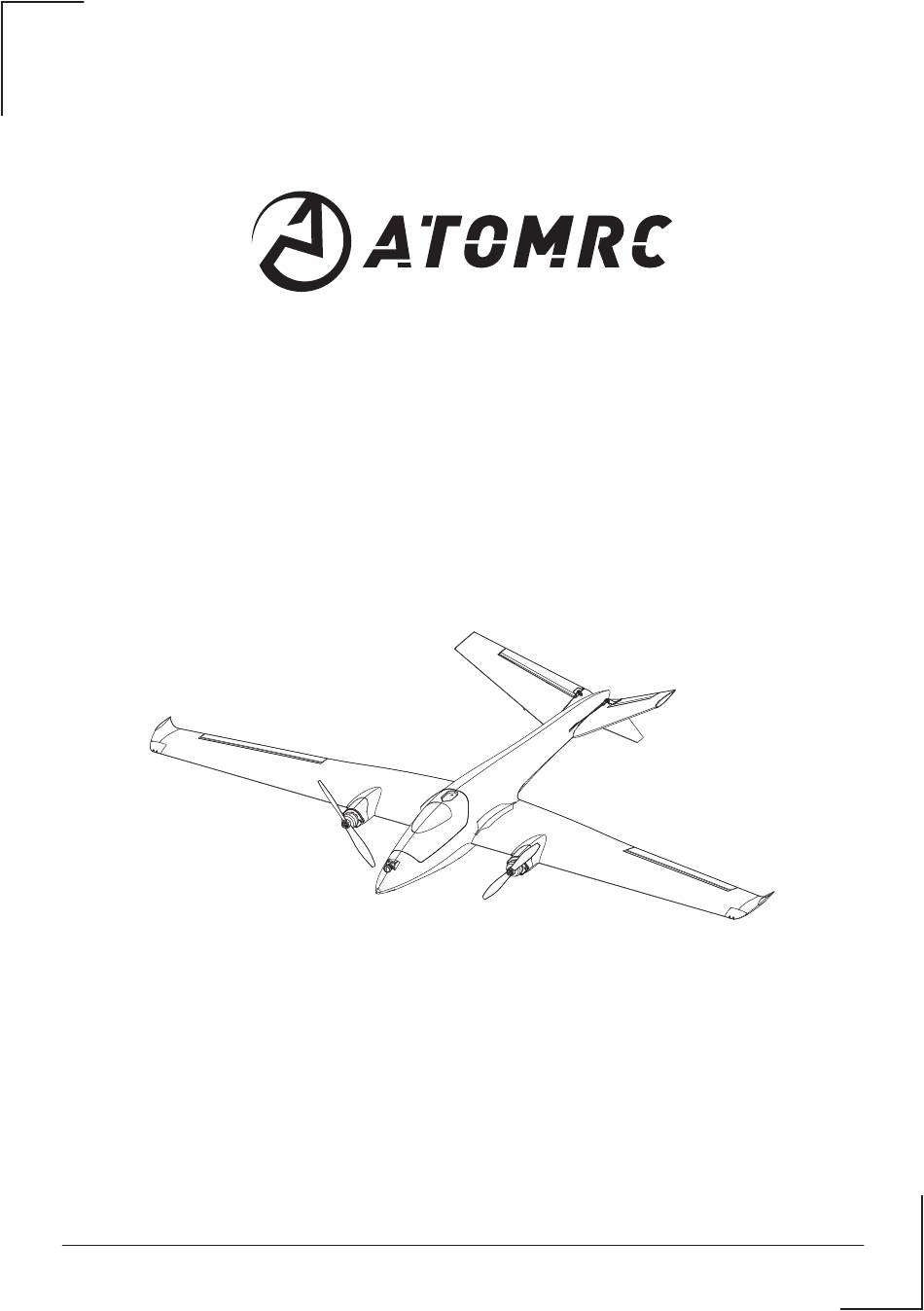

- Page 1 User Manual Swordfish 剑鱼 www.atomrc.com...

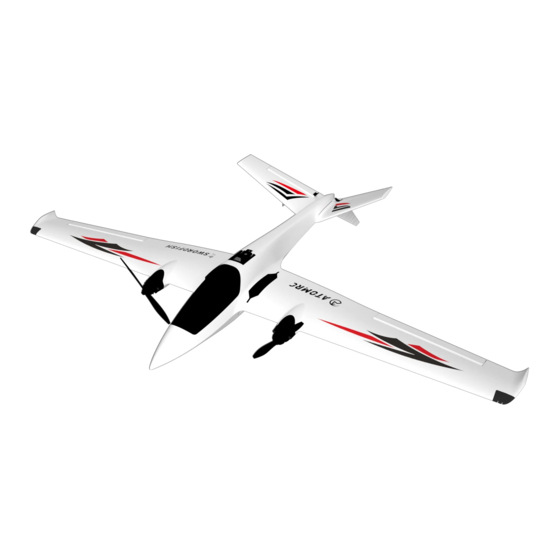

- Page 2 Introduction/简介 The swordfish is a 1200mm wing span middle speed twin motor glider, the large V-tail improves the cruising speed stability, the aerodynamic shape and low cross-sectional area reduce flight resistance and improve endurance. We use lots of plastic injection parts to reduce the wight, size and also improved the strength.
- Page 3 VersionDescription/版本说明 ATOMRC Swordfish Fixed Wing Version RTF+FPV PNP+Pre- RTH+VTX+C turned Pre-glued KIT+Motor PNP+VTX+C amera, all Description FC+GPS, all Fixed WING +ESC+Servo amera electronic electronics are installed are installed Pre-Build KIT √ √ √ √ √ Wood plate √ √ √...
-
Page 4: Kit Contents
KIT Contents FF： FG： GPS Hatch/GPS舱盖 VTX Hatch/图传舱盖 FA-L/FA-R: FD-L/FD-R： FH-L/FH-R： FB： Fuselage/机身 Wing/左右机翼 V Tail/V尾 Cam Hatch/摄像头舱盖 FE： FC-1： FC-2： Bottom Hatch/设备舱盖 Front Hatch1/平台舱盖 Front Hatch2/电池舱盖 PG： PB： PC： PE-L/PE-R/PF-L/PF-R: Motor mount/ VTX Hatch/ ESC hatch/ Wing quick release/ 图传舱盖... - Page 5 KIT、 PNP、 FPVInstallation/KIT、 PNP、 FPV版本安装指南 Install the V-tail on the fuselarge 将V尾与机身连接并⽤螺丝固定好 Install the V-tail servo 安装V尾舵机 Install the push rods. 将Z拉杆安装到舵机摆臂上，再回中舵机安装摆臂。 Install the aileron servo, push rods and servo arm cover. 安装左右机翼舵机、安装拉杆保护罩。...
- Page 6 RTH/RTHFPVInstallation/安装指南 Install the V-tail 将V尾与机身连接并⽤螺丝固定好 Installed the push rods. 先将Z拉杆安装到舵机摆臂上，再回中舵机安装摆臂 Install the INAV configurator then plug to PC 下载INAV地⾯站，安装接收机，连接地⾯站 Check INAV Configurator the receiver type, then assign the channel and mode 连接INAV地⾯站，检查接收机设置、模式开关分配设置 检查舵机输出是否正确...
- Page 7 Install the Motor,ESC and LED 将电机、电调、LED灯，安装到左右机翼上 Receiver or FC/接收机或⻜控 Wing/机翼 Servo Motor Connect the servo and ESC to the quick release board 参照接线图，将机翼电调、舵机的线接到快拆板上 摄像头打印件 图传仓盖 Install the FC and VTX system if needed 根据需求安装图传 图传安装⽊⽚ GPS舱 摄像头和其他外设 前置摄像头安装位 Install the wing 合并左右机翼，进⾏⻜⾏前调试，...
- Page 8 If using how power device, suggest solder the capacitor . F405 GND GND Xt60 VTX+ Rx1 Rx2 Rx3 CL Tx1 Tx2 Tx3 DA F405-NAVI Voltage 12V~30V ATOMRC F405 NAVI Boot Specifications IMU:BMI270 MCU:STM32F405RGT6 ATOMRC F405 NAVI Baro:SPL06-001 OSD:AT7456E Blackbox:SD Card...
- Page 9 Tx500 VTX User manual/TX500图传说明书 ATOMRC Tx500 VTX Wiring Diagram /TX500图传接线图 Cam Video VCC/2-6S VTX Setting/图传设置 1.Hold button 3 seconds into setting mode. 2.In setting mode. short press the button to change band. 3.Then hold button 3 seconds into CH setting mode, short press button to change CH.
- Page 10 ESC calibration is done. 1.电调具有安全启动保护功能，当电机、电池连接电调后，电调信号未处于最低位置，电调油⻔ 输出不会启动。 2.电调油⻔校准：请先拆卸螺旋桨，将油⻔摇杆移动到最⾼位置后通电，当哔哔声结束后，迅速将 油⻔摇杆移动到最低位置，哔哔声⾳结束，油⻔校准成功。 ATOMRC Exceed BLS 30A 5VBEC ESC Wiring Diagram VCC/电源正极 Throttle GND/油⻔信号地 Output 5V3A/5V3A输出 Throttle/油⻔信号 Voltage input/电压输⼊范围: 2~4S Lipo Max Current/最⼤电流: 35A...
