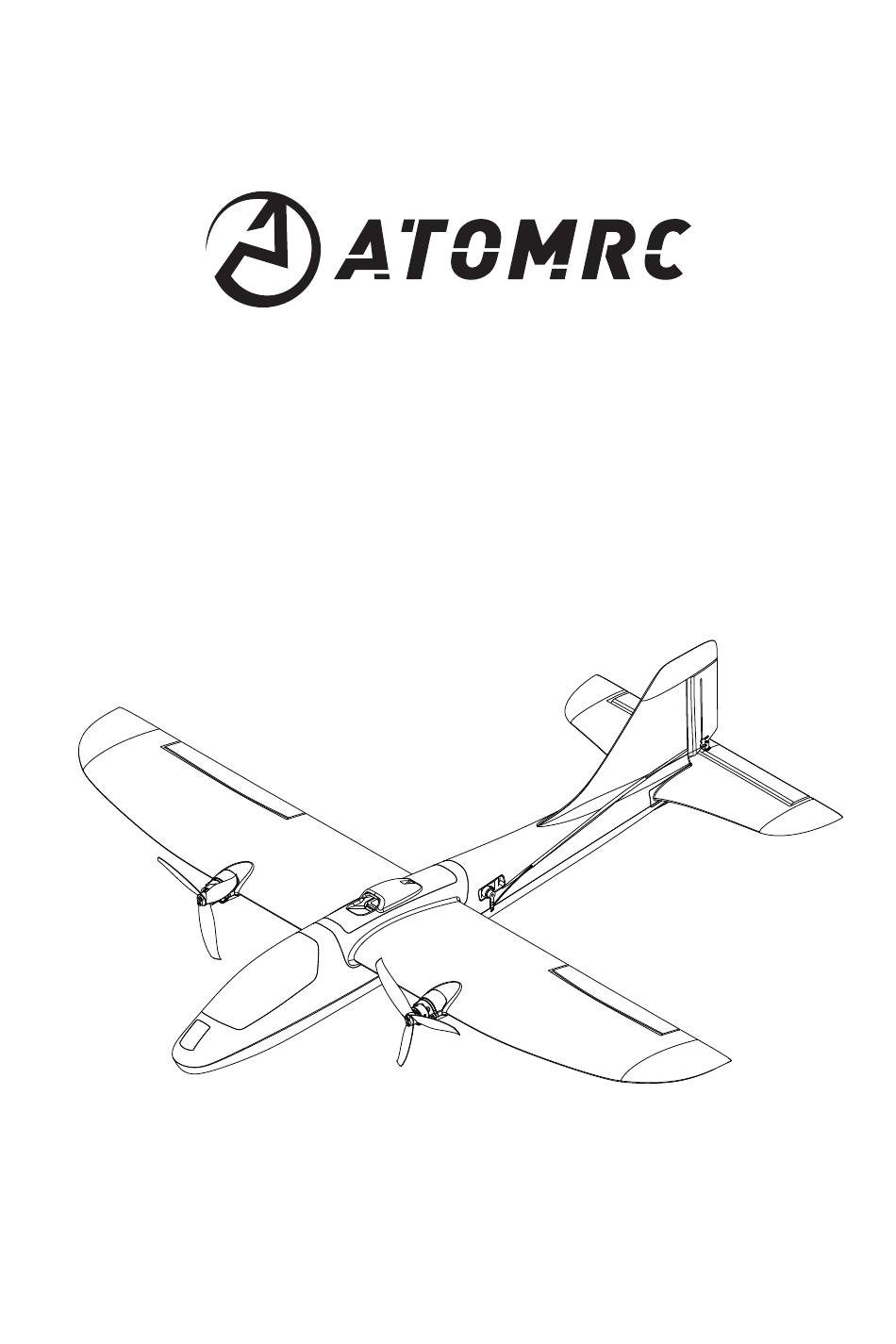

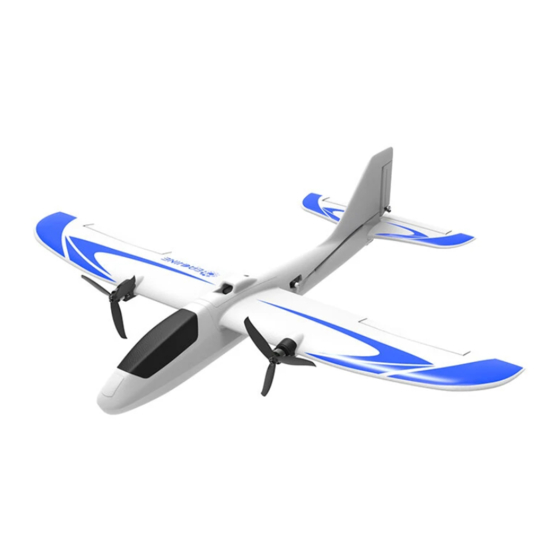

- Page 1 User Manual Flying Fish ⼩⻜⻥...
-
Page 2: Specifications
Introduction/产品简介 The Flying Fish is special design twin motor glider for close range FPV, the 650mm wingspan made th glider easy to fly in small room also easy to launch. With 2 in 1 ESC , the wiring is clean and simple, no modification. Twin motor design made the glider very efficient. - Page 3 Installation/安装指南 Install the tail, then install the elevator control surface. 安装平尾，并且安装控制舵面 Plug the ESC/Servo connector to the receiver. 将舵机及电调信号线插入接收机 Install the propeller, then install the wing to the fuselage. 安装螺旋桨，然后固定机翼螺丝。 Install the hatch. 安装舱盖。...
- Page 4 Tx500 VTX Uermanual/图传说明书 Band Channel Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Airwave/FS 5740 5760 5780 5800 5820 5840 5860...
- Page 5 2 in 1 ESC Wiring MOTOR Servo Aileron/副翼 Throttle right/右侧油门 Throttle left/左侧油门 MOTOR Servo The throttle input are bridged on the cable, if user want differential throttle, please solder the input on the soldering pads. 电调输入信号在线上已经并联，若想使用油门差速，请将信号输入线焊接在焊盘。 VTX Wiring/图传接线图 Cam Video Cam GND 5V OUT VCC/2-6S...
- Page 6 14 years old! 此产品并非玩具，14岁一下用户请在 成年人指导下飞行。 The CG is very important for Flying Fish CG is marked on the bottom of wing. Check the CG carefully before flight. 重心标在机翼下方，起飞前请确定飞机是否平衡。 Please download the latest user manual at ⽂件若有更新，恕不另⾏通知, 请于以下⽹站下载最新版本...
