- Page 1 User Manual Dolphin 海豚 www.atomrc.com/pages/download...

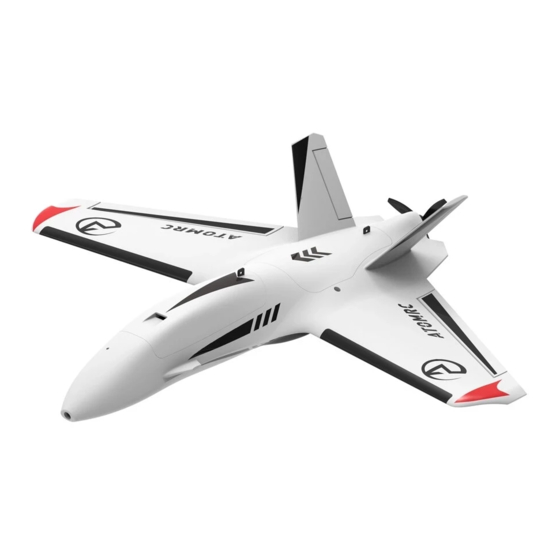

- Page 2 Introduction/简介 The Dolphin is sweep forward fly wing, with elegant design, the dolphin can fly stable both on high speed and low speed, the large fuselage can give use lots of space to install the electronics, the detachable wing made the wing easy for transport, V tail made the wing more stable for crusing.
- Page 3 VersionDescription/版本说明...
-
Page 4: Kit Contents
KIT Contents A：Fuselage B：Fuselage C：Wing 上机身 下机身 机翼 D：Tail E：Front Hatch F：Rear Hatch 垂尾 前舱盖 后舱盖 G：Nose H：Gopro Hatch 尖机头 Gopro机头... - Page 5 KITLiteInstallation/KITLite安装指南 Install the standoff and nuts, need glue the nylon screw under the board. 安装机舱螺⺟及螺丝，机舱⽊⽚底部螺丝需先⽤胶⽔固定。 Glue the gopro mount plate, then glue the fuselage. 粘接GOPRO安装⽊板，然后粘接上下机身。 Install the battery strap , glue the battery mount board to the fuselage. 安装电池固定⽊⽚，安装舱盖扣。 Install the Camera mount plate, and the V taill. 安装机头相机安装⽚，粘接V尾。...
- Page 6 Install side plate of the wing, then install the control horn . 安装机翼侧边⽊⽚，机翼舵⻆。 Glue the plastic protection parts on the wing and the bottom . 粘接机翼机腹塑料保护⽚。 Install the magnet on the hatch, glue the sharp nose. 安装各个舱盖磁铁，粘接尖机头。...
- Page 7 KIT/PNP/FPVInstallation/安装指南 Install the motor and ESC. 安装电机电调。 Install the servo and push rods, then install the rudder. 将舵机安装到垂尾、平尾，居中调试后，安装拉杆。粘合左右垂尾。 User can choose carbon plate to install the camera or just use foam to fill. ⻜机机头位置，可以选择安装摄像头固定碳⽚或者泡沫填充。 Install the wing to the fuselage. 将左右机翼安装到机身。...
- Page 8 When Gopro is installed, adjust battery slider to adjust balance. 安装Gopro时，需要将电池安装到后⾯，通过滑块调平。 To install Gopro, use rubber band to lock the gopro then install the hatch. 若安装GOPRO，需⽤橡⽪筋固定住GOPRO，然后盖上机头相机盖。 Install the Nose and Cam. 安装摄像头机头。 The CG is marked under the wing, you can move the CG 3-4mm to get better control.
- Page 9 ESCInformation/电调说明 Throttle calibration /电调油⻔校准 1.The ESC included with the model has a safe start.If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position,the motor will not start untill the throttle stick is moved to the low throttle or off...
- Page 10 4.Hold button 3 second to get into Power setting mode, there is short bar on LED, short press to switch power, 1 bar means 200mW, 2 bar means 800mW, 3 bar means 1500mW. 1.⻓按设置按键三秒，进⼊波段设置模式。 2.在设置模式下，短按按键切换波段。 3.再次⻓按按键三秒钟，进⼊频道切换模式，短按按键切换频道。 4.再次⻓按按键三秒钟，进⼊切换功率模式，短按按键切换功率，数码管⼀条为200mw，两条 为800mw, 三条为1500mw。 Please download the latest user manual at www.atomrc.com/pages/download...
