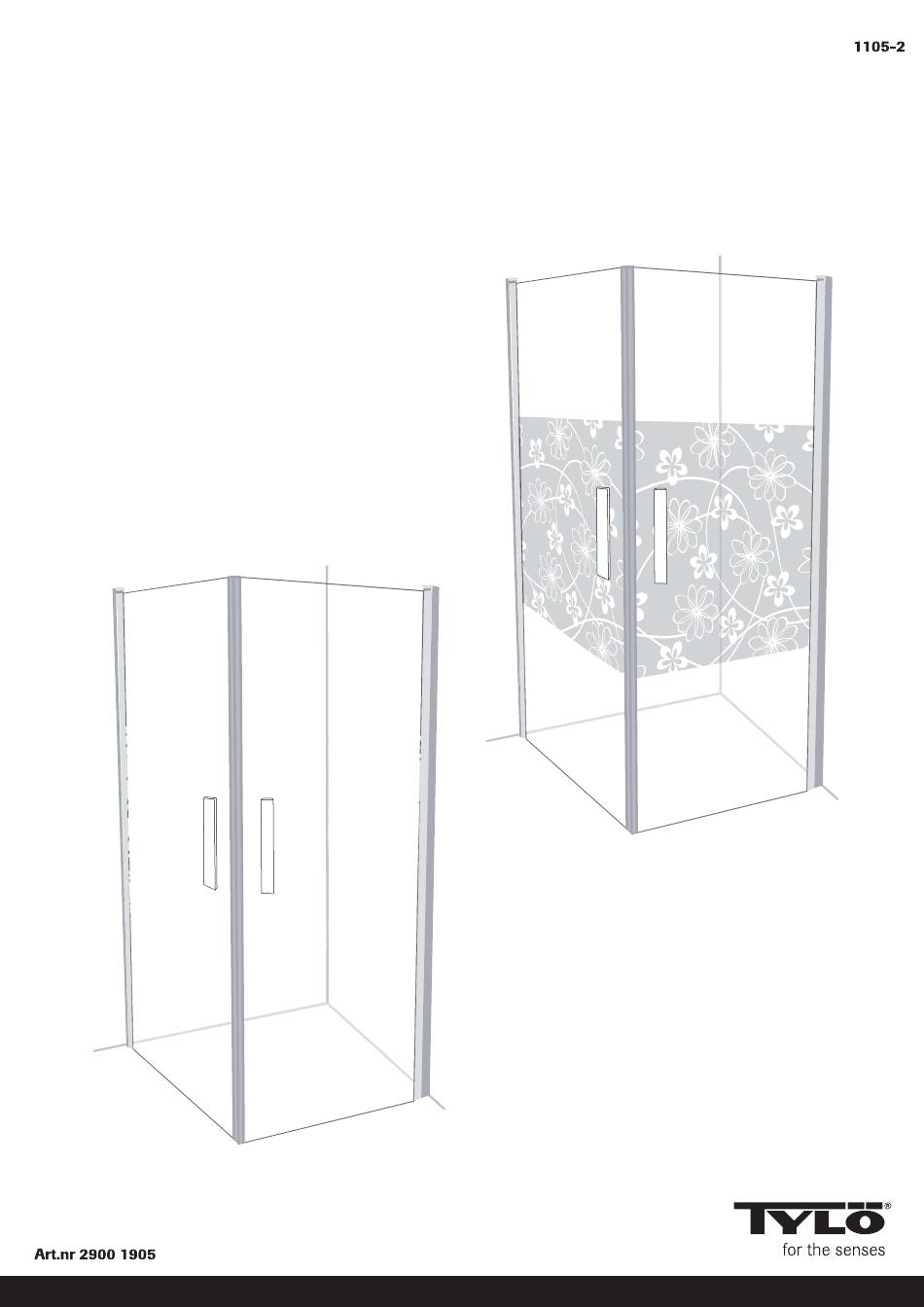

- Page 1 TYLÖ SHOWER i80/C, i90/C STRAIGHT TYLÖ DUSCH i80/C, i90/C...
- Page 2 Komma igång/ Getting Started: Denna produkt uppfyller EN14428 standarden Skyddsglasögon rekommenderas This product fulfils the EN14428 standard Googles are recommended to protect the eyes Varning: Hantera alltid glas varsamt! Skydda alltid kanter och hörn på glaset under montering. Alla glas som används är härdat säkerhetsglas Caution: Always Handle Glass With Care! All glass used are tempered security glass Always protect the edges and corners of the glass...
- Page 3 Mått/ Measurements: 200cm Modell Model...
- Page 4 Sprängskiss/ Exploded View: Ritningsnr. Benämning Enhet Drawing Nr. Description Unit ST4x35mm skruv ST4x35mm screw ST4x10mm skruv ST4x10mm screw Täcklock Screw cover Plastplugg Plastic plugs Borr 3.2mm 3.2mm drill bit Tätningslist Bottom gasket Handtagssats sats Handle set Vänster dörr med gångjärnsprofiler sats Left door with hinge profiles Väggprofil (2.0m)
- Page 5 885-905mm / 885-905mm / 785-805mm 785-805mm Ø6.0mm ST4x35mm ST4x10mm Ø3.2mm...
