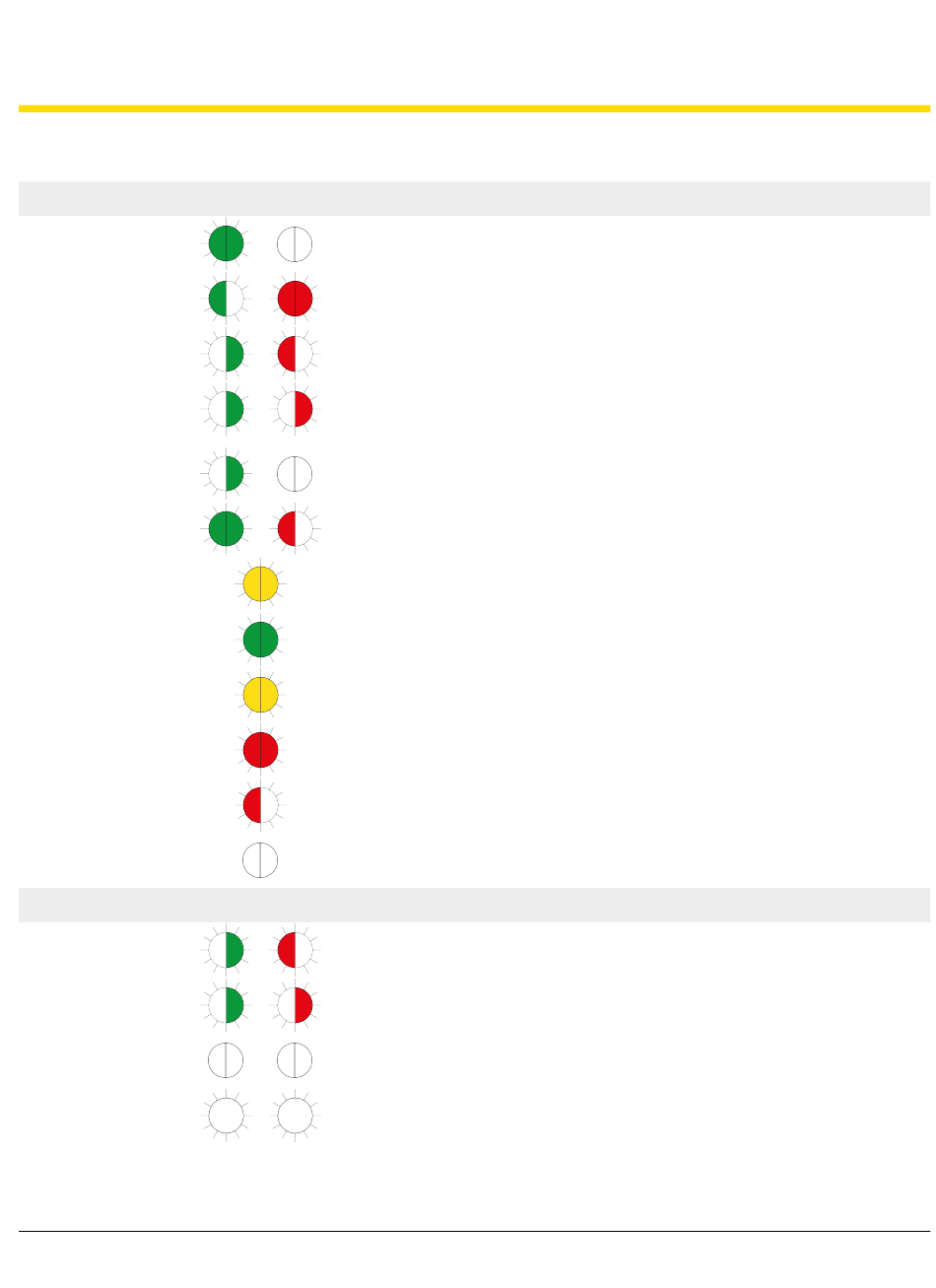

LED status indicator
LED
ASi / FLT
I1 ... Ix
AUX
M1 ... Mn
ERR1 ... ERRn
Explanation
Version 1.0 (10/2022) Online
Translation of the original operating manual
Interroll MultiControl ASi Bus 24V
Description
ASi voltage on
Address „000"
See Peripheral fault
Flashing pattern for identification of the device (e.g. can be activated
from ASIMON360)
Warning message, see diagnostics software for further details
Firmware update is running
Status of inputs
External supply voltage on
State of motor outputs
Motor fuse is blown out
Error message motor or motor not connected to module
ERR LED is not controlled when the motor ports are deactivated
Alternate flashing
Simultaneous flashing
LED Off
LED On
