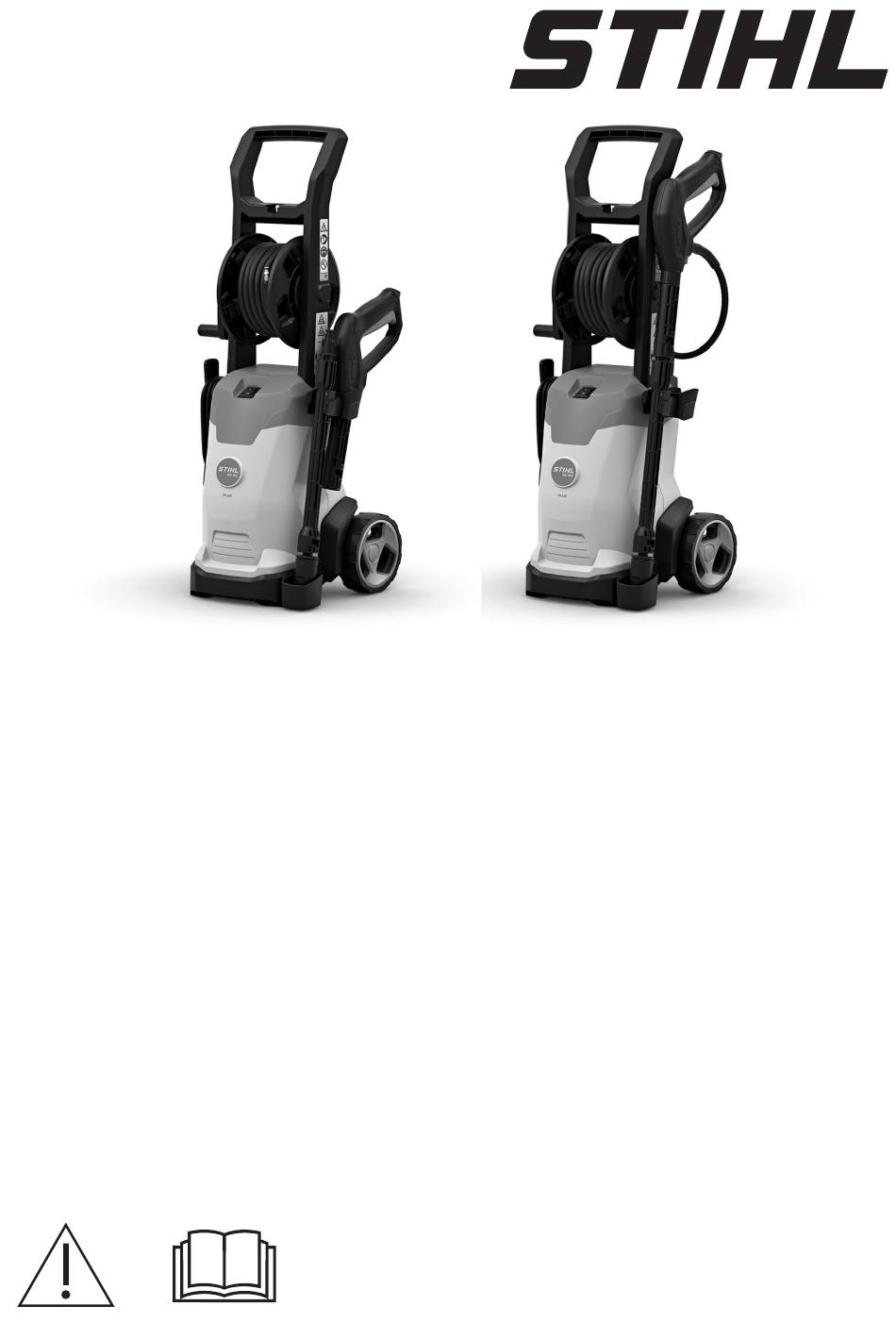

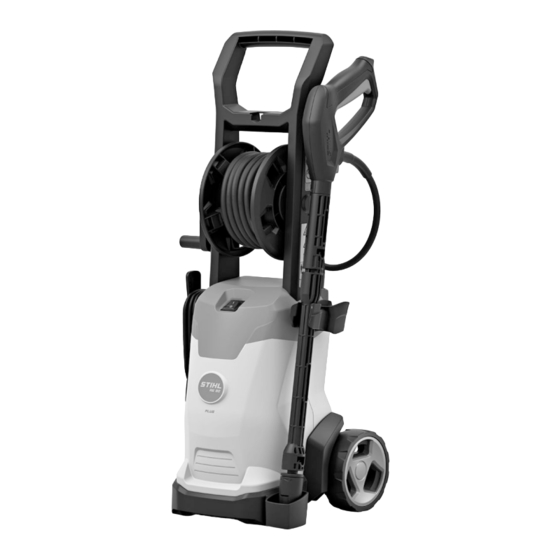

  • Page 1 RE 90.0 PLUS 2 - 22 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    3 Overview English Overview 9 Connecting cable The connecting cable connects the high-pres‐ High-pressure washer sure washer to the mains plug. 10 Connector The connector is used to connect the water hose. 11 Compartments The compartments are used to store the sup‐ plied nozzles.

  • Page 4: Safety Precautions

    Intended Use or secure it so that it cannot topple over and cannot move. The STIHL RE 90.0 PLUS high-pressure washer can be used to clean vehicles, trailers, patios, Do not dispose of product with the house‐ paths and facades, for example.
  • Page 5 ► If in any doubt: Contact a STIHL servicing ► Do not use in rain. dealer. ► Position the pressure washer so that it will not be wet by dripping water.
  • Page 6 ► If you start feeling fatigue: Take a break. – An original STIHL accessory for this high-pres‐ ■ If the high-pressure washer starts behaving sure washer is fitted. differently or in an unusual way while operat‐...
  • Page 7 4 Safety Precautions English ► Do not use the high-pressure washer at ■ If while in use the rotary nozzle is immersed in temperatures below 0° C. dirty water and then operated, the rotary noz‐ ■ Pulling on the high-pressure hose, water hose zle may be damaged.
  • Page 8 English 4 Safety Precautions ► Keep electrical appliances and the high- ► STIHL recommends the use of genuine pressure washer away from the surface to STIHL detergents. be cleaned. ► Observe the user manual for the detergent. ■ An incorrectly routed high-pressure hose may ►...
  • Page 9 4 Safety Precautions English ► Plug the mains plug of the connecting cord ► Route and mark the connecting cord and or extension cord into a properly installed, extension cord so that people will not trip fused socket with the correct fuse rating. over them.

  • Page 10: Preparing The Pressure Washer For Operation

    8.1. ► Switch off the high-pressure washer. ► If it is not possible to carry out these steps: Do not use the pressure washer. Consult a STIHL servicing dealer. ► Unplug the mains plug of the high-pressure Assembling the pressure washer from the socket.
  • Page 11 6 Assembling the pressure washer English Attaching and removing the ► Insert screws (3) and tighten. spray gun Connecting the hose reel 6.2.1 Attaching the spray gun ► Fit the connecting piece (1) into the coupling (2). ► Slide the connector (2) into the spray gun (1). The connector (1) engages with an audible The connector (2) engages with an audible click.

  • Page 12: Connecting To A Water Source

    English 7 Connecting to a water source Connecting to a water 6.3.2 Removing the spray lance source Connecting the high-pressure washer to the mains water sup‐ Connecting the water filter If the high-pressure washer is operated with sandy water or water from cisterns, a water filter ►...
  • Page 13 ► Switch on the high-pressure washer until an tion lift (a), even water jet flows out of the high-pressure hose. The appropriate STIHL suction set must be used. The suction set includes a water hose with a special coupling. Depending on the market, the appropriate STIHL suction set may be included with the high-pres‐...

  • Page 14: Connecting The Pressure Washer To The Power Supply

    English 8 Connecting the pressure washer to the power supply NOTICE ■ If the high-pressure washer does not suck in water, the pump may run dry and the high- pressure washer may be damaged. ► If no water escapes from the high-pressure hose after two minutes: Switch off the high- pressure washer and check the water sup‐...
  • Page 15 10 Operating the pressure washer English 10.2 Unrolling the high-pressure Locking the spray gun trigger hose ► Release the trigger (2). The high-pressure pump switches off automat‐ WARNING ically and water stops flowing out of the noz‐ zle. The high-pressure washer is still switched ■...

  • Page 16: After Finishing Work

    Detergents can increase the cleaning effect of ► Remove the water hose. the water. The use of the STIHL spraying set is ► Remove and clean the nozzle and spray required for working with cleaning agents. The lance.

  • Page 17: Transporting

    12 Transporting English 11.2 Protecting the pressure washer ► Carry the pressure washer by the handle (1) with antifreeze and the carrying handle (2). If the pressure washer cannot be protected from Transporting the high-pressure washer in a vehi‐ frost during transport or storage, the pressure washer should be protected by a glycol-based ►...

  • Page 18: Maintenance

    ► Reassemble the water filter. screen 15 Maintenance 15.1 Maintenance intervals Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance inter‐ vals: Monthly ► Clean water intake screen. 16 Repairing ► Unscrew the connector (1) of the water con‐...
  • Page 19 ► Allow the pressure washer to cool for 5 minutes. ► Clean the nozzle. The high-pressure There is a leak in the high-pressure ► Ask a STIHL servicing dealer to pump repeatedly pump, high-pressure hose or spray inspect the pressure washer. switches on and off attachment.

  • Page 20: Specifications

    (t in max): 40 °C 18 Specifications – Max. water temperature in suction mode: 20 °C 18.1 STIHL RE 90.0 PLUS high- – sample inspection pressure washer – Length: 340 mm – Width: 320 mm Version 100 V / 50-60 Hz –...

  • Page 21: Spare Parts And Accessories

    – Cord length up to 10 m: AWG 14 / 2.0 mm² ► Take STIHL products including packaging to a – Cord length 10 m up to 30 m: AWG 12 / suitable collection point for recycling in accord‐...
  • Page 22 English 21 EC Declaration of Conformity The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulas‐ sung. The year of construction, country of manufacture and the serial number are shown on the high- pressure washer. Done at Waiblingen, 08.02.2021 ANDREAS STIHL AG &...
