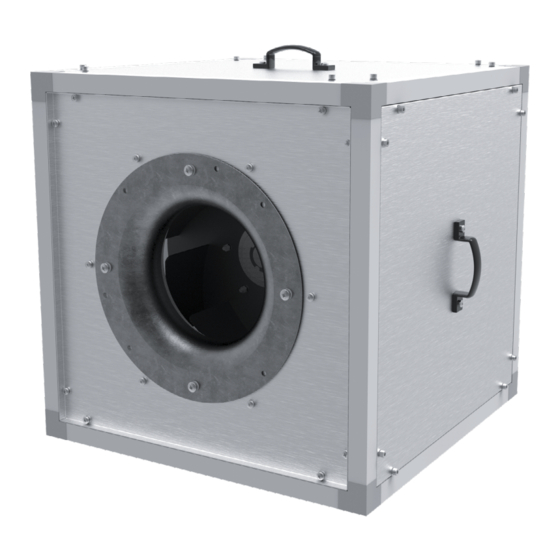

BLAUBERG Ventilatoren Iso-VK User Manual

Sound-insulated kitchen fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sound-inSulated kitchen fan
Iso-VK
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iso-VK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Ventilatoren Iso-VK

Summary of Contents for BLAUBERG Ventilatoren Iso-VK

  • Page 1 Sound-inSulated kitchen fan Iso-VK USER’S MANUAL...

  • Page 2: Table Of Contents

    Warranty card ....................................15 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Iso-VK unit and all its modifications.
  • Page 3 All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.

  • Page 4: Purpose

    DELIVERY SET NAME NUMBER 1 pc User’s manual 1 pc Packing box 1 pc DESIGNATION KEY Iso-VK 315 4E Name Iso-VK - sound-insulated kitchen fan (120 ˚С) Diameter Turbine size [mm] Poles Number of poles Phases E: single-phase D: three-phase...

  • Page 5: Technical Data

    TECHNICAL DATA The fan is designed for exhaust ventilation of rooms with air temperature from -25 °C to +120 °C. The unit is rated as a Class I electrical appliance. The unit design is constantly being improved. thus some models may be different from those described in this manual.
  • Page 6 Dimensions [mm] Weight Model [kg] Iso-VK 315 2D Iso-VK 315 2E 40.2 Iso-VK 315 4D 37.2 Iso-VK 315 4E 37.2 Iso-VK 355 4D 48.1 Iso-VK 355 4E 47.4 Iso-VK 400 4D 58.1 Iso-VK 400 4E 60.3 Iso-VK 450 4D 73.3...
  • Page 7 FAN OPTIONS EVA ISO-VK Dimensions [mm] Weight Model [kg] EVA Iso-VK 315 4.76 EVA Iso-VK 355 4.08 EVA Iso-VK 400 4.76 EVA Iso-VK 450 5.34 EVA Iso-VK 500 6.12 EVA Iso-VK 560 6.83 EVA Iso-VK 630 7.66 EVA Iso-VK 710 22.5...
  • Page 8 RSD ISO-VK Dimensions [mm] Weight Model [kg] RSD Iso-VK 315 2.42 RSD Iso-VK 355 3.25 RSD Iso-VK 400 3.91 RSD Iso-VK 450 4.21 RSD Iso-VK 500 6.57 RSD Iso-VK 560 7.71 RSD Iso-VK 630 1003 1022 9.27 RSD Iso-VK 710...

  • Page 9: Design And Operating Principle

    Thanks to its corrosion-resistant aluzinc casing and heat-insulation material, the fan is suitable for outdoor installation. The Iso-VK fan is equipped with an asynchronous motor with an external rotor and a centrifugal impeller with backward curved blades. The fan has a special design that allows you to change the position of the side panels for air supply in directions at an angle of 90°.

  • Page 10: Mounting And Set-Up

    Installation of the brackets horizontal plane fan can be equipped with a drain fitting protective hood - RSD Iso-VK The MH Iso-VK brackets and the RSD Iso-VK protective hood are not included in the delivery set and must be ordered separately.

  • Page 11: Connection To Power Mains

    CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.

  • Page 12: Commissioning

    COMMISSIONING THE ORGANISATION RESPONSIBLE FOR THE COMMISSIONING SHALL BE RESPONSIBLE FOR PROPER MOTOR PHASING AND STARTING PATTERN SELECTION. DURING STARTING THE IN-RUSH CURRENTS OF THE FAN MAY SEVERAL TIMES EXCEED THE RATED VALUES. SEE “ASYNCHRONOUS ELECTRIC MOTOR STARTING METHODS” IN THE “CONNECTION TO POWER MAINS”...

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected correctly, otherwise Fan does not run. No power supply. troubleshoot the connection error. The ventilation system is Low air flow. Make sure the air ducts are clean. Clean them if necessary.

  • Page 14: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.

  • Page 15: Certificate Of Acceptance

    CERTIFICATE OF ACCEPTANCE Unit Type Sound-insulated kitchen fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 16 www.blaubergventilatoren.de B262EN-01...

This manual is also suitable for:

Iso-vk 315 2dIso-vk 315 2eIso-vk 315 4dIso-vk 315 4eIso-vk 355 4dIso-vk 355 4e ... Show all
