- Page 1 OUTER VENTILATION HOOD AH-S INSTALLATION INSTRUCTION...

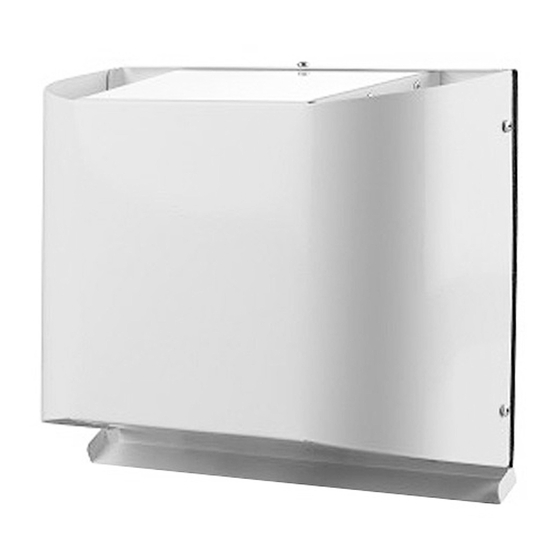

- Page 2 Outer ventilation hood AH-S www.blaubergventilatoren.de PURPOSE The outer ventilation hood is designed to prevent ingress of water and foreign objects into the ventilation equipment from outside. THE OUTER VENTILATION HOOD MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
- Page 3 Outer ventilation hood AH-S www.blaubergventilatoren.de 2. Mark the fastening holes for the outer ventilation hood and drill AH-S 125 | AH-S 160 | AH-S 150x150 | AH-S 164x164 AH-S 100 4 holes, 50 mm deep to suit the expansion anchors. Use the back 247 mm 217 mm Ø6 mm (¼")
- Page 4 www.blaubergventilatoren.de AH-S_v1(1)_EN...
