Summary of Contents for BLAUBERG Ventilatoren EH-13 100

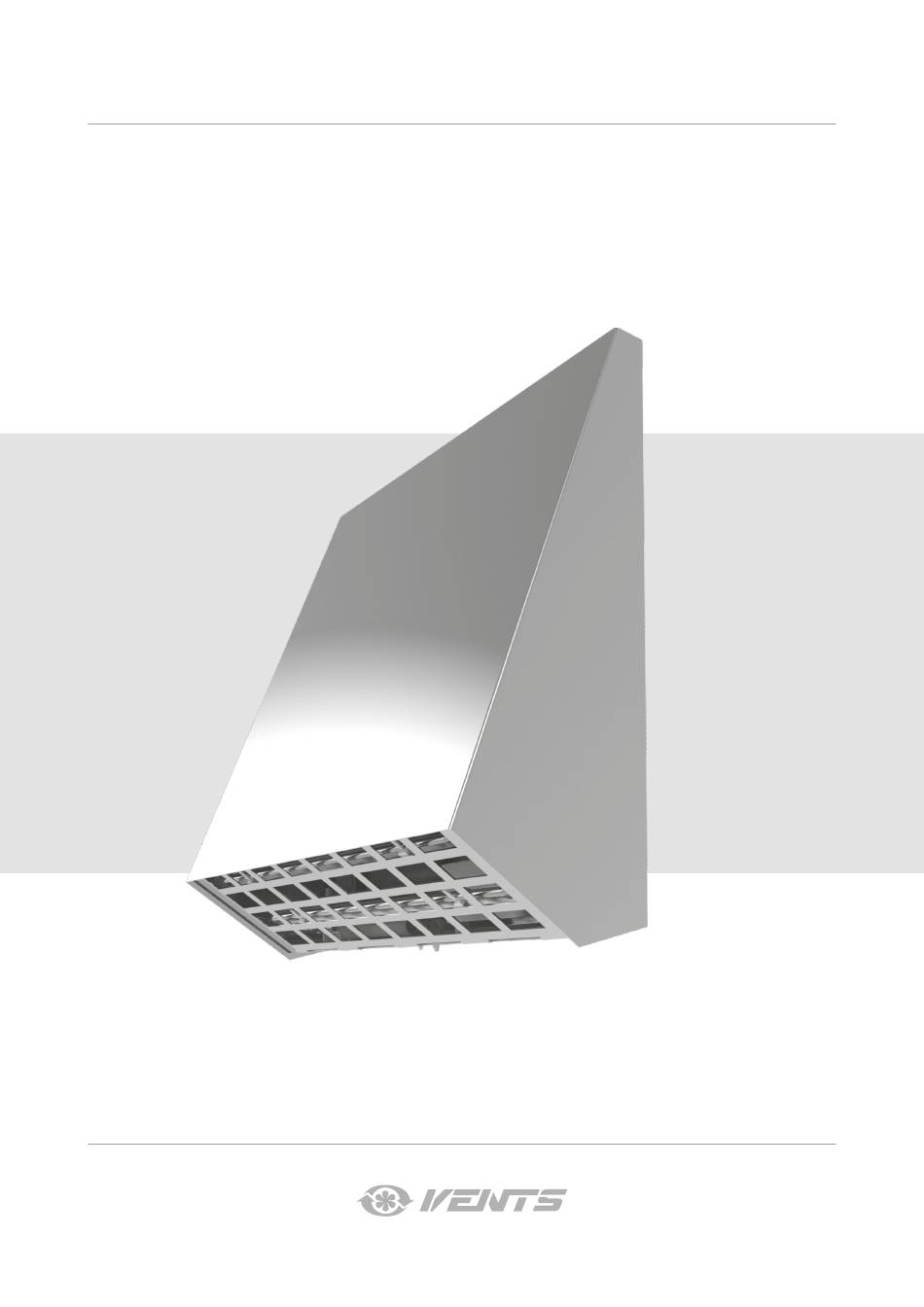

- Page 1 INSTALLATION INSTRUCTION EH-13 100 EH-13 125 EH-13 160 EH-13 150x150 EH-13 164x164 Outer ventilation hood with frost protection...
- Page 2 THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY UNATTENDED CHILDREN. OVERALL DIMENSIONS Model А (5 ⁄ ") 240 mm 260 mm 112 mm EH-13 100 (9 7/16”) (10 1/4”) (4 7/16”) 280 mm 300 mm 137 mm EH-13 125 (11”) (11 13/16”)
- Page 3 (3/8") 2. Mark the fastening holes for the outer ventilation hood and EH-13 125 | 160 | 150х150 | 164x164 EH-13 100 drill 4 holes, 50 mm (2”) deep to suit the expansion anchors (6x40) 6 mm (3/16”)x40 mm (19/16”).
- Page 4 EH-13 5. Cover the ventilation hood with the front part. CONNECTION TO POWER MAINS Outer ventilation hood is equipped with frost protection. The power consumption of the hood depends on the temperature conditions and is no more than 60 W (230 V/50 Hz). Sustaining current is 0.26 A. TERMINAL DESIGNATIONS ON THE WIRING DIAGRAM: - phase QF- automatic circuit breaker...
- Page 5 www.ventilation-system.com...
- Page 6 EH-13 www.ventilation-system.com...
- Page 7 www.ventilation-system.com...
- Page 8 V113-10EN-01...
