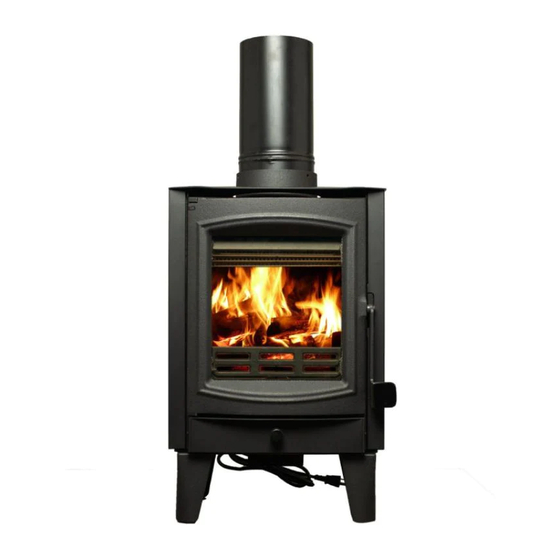

Owner's Instruction and Operation Manual

Model Number:

AW520E

Report Number: F22-781

Tested Per EPA Methods 28R and ASTME2515

and ASTME2780 and CSAB415.1

Certified to UL 1482-2022 and

ULC-S627:2021

Mobile home/transportable building approved

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

Save These Instructions In A Safe Place For Future Reference.

SAFETY NOTICE: If this heater is not properly installed, a house fire may result.

For your safety, follow the installation instructions. Never use make-shift

compromises during the installation of this heater. Contact local building or

fire officials about permits, restrictions and installation requirements in your

area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury,

or even death. Improper Installation Will Void Your Warranty!

U.S. Environmental Protection Agency

Certified to comply with 2020 particulate

emissions standards.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to

853950-4305L

www.P65warnings.ca.gov

Ph. 800-750-2723

Table of Contents

Need help?

Do you have a question about the AW520E and is the answer not in the manual?

Questions and answers

Summary of Contents for Ashley AW520E

Page 1 Owner’s Instruction and Operation Manual Model Number: AW520E Report Number: F22-781 Tested Per EPA Methods 28R and ASTME2515 and ASTME2780 and CSAB415.1 Certified to UL 1482-2022 and ULC-S627:2021 Mobile home/transportable building approved * All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Page 2 INTRODUCTION This manual describes the installation and operation of the AW520E wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 10,652 to 26,028 Btu/hr with 1.7 g/hr and 75% efficiency.
Page 3: Installation Checklist
INSTALLATION CHECKLIST Your Wood Stove should be installed by a qualified installer only. An NFI qualified Installer can be found at www.nficertified.org/public/find-an-nfi-pro/ CUSTOMER SERVICE 1-800-750-2723 ext 5050 Text to 423-301-5624 Email to: Customerservice@usstove.com COMMISSIONING CHECKLIST This Checklist is to be completed in full by the qualified person who installs this unit. Keep this page for future reference.
Page 4: Tools And Materials
ASSEMBLY INSTRUCTIONS FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050 TOOLS AND MATERIALS You will need the following items for installation: • A drill phillips head screwdriver. • A ratchet wrench with a 7/16” and 1/2” sockets or wrenches to install flue collar and leg assembly to the unit.
Page 5: Flue Collar Assembly
ASSEMBLY INSTRUCTIONS FLUE COLLAR ASSEMBLY Remove the blank from the back panel of the heater. Mount the flue collar to the top of the unit as shown using the (3) 5/16-18 x 1-1/2 bolts, (3) washers, and (3) 2. Attach the blower mounting bracket supplied weld tabs provided in the parts box.
Page 6: Installation
INSTALLATION SAFETY NOTICE • DO NOT INSTALL IN AN ALCOVE • THIS ROOM HEATER SHALL INSTALLED IN A FACTORY-BUILT FIREPLACE. • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.
Page 7: Floor Protector
INSTALLATION FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050 FLOOR PROTECTOR This heater must have a non-combustible floor protector, UL 1618 listed or equal, with an R-Value of at least 2.8 installed beneath it if the floor is constructed of combustible material. The floor protector should be large enough to extend under the stove and beyond each side as indicated below.
Page 8 INSTALLATION SECURING APPLIANCE’S WITH LEGS TO 6. A ventilation system is installed in the house. THE FLOOR The bracket engages around the square extrusion of the leveling bolt inserted into the leg. 2. Once appliance is leveled, position the bracket and attach to the floor using the appropriate hardware needed for your specific flooring.
Page 9: Chimney Connector (Stove Pipe)
INSTALLATION CHIMNEY CONNECTOR (STOVE PIPE) other factors. Too much draft may cause excessive temperatures in the appliance. An inadequate The chimney connector and chimney must have draft may cause back-puffing into the room and the same diameter as the stove outlet (6”). If this “plugging”...
Page 10: Factory Built Chimney
INSTALLATION (3.04m) distance by a height of 2’ (0.6m). 3. The installation of an interior chimney is always Listed Attic Chimney preferable to an exterior chimney. Indeed, the Insulation Sheild interior chimney will, by definition, be hotter Combustible than an exterior chimney, being heated up by Specified Ceiling Joists the ambient air in the house.
Page 11 INSTALLATION professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Be sure to the chimney cleaned before the stove is installed and operated. When connecting the stove through a combustible wall to a masonry chimney, special methods are needed.
Page 12 INSTALLATION wall thimble, and cover its opening with a 24-gage chimney connector by way of sheet metal support minimum sheet metal support. Maintain the 6” plates at both ends of chimney section. Cover (152.4 mm) space. There should also be a support opening with and support chimney section on both sized to fit and hold the metal chimney connector.
Page 13 OPERATION INSTRUCTIONS NEVER OPERATE THIS PRODUCT WHILE UNATTENDED CAUTIONS: HOUSE FIRE HAZARDS OPERATING SAFETY PRECAUTIONS • DO STORE WOOD FLOOR • NEVER OVERFIRE THIS APPLIANCE BY PROTECTOR, UNDERNEATH STOVEPIPE(S) BUILDING EXCESSIVELY HOT FIRES AS A OR ANYWHERE WITHIN CLEARANCES TO HOUSE/BUILDING FIRE MAY RESULT.
Page 14: Testing Your Wood
OPERATION INSTRUCTIONS these materials does not prohibit the use of fire but make sure the temperature never rises higher starters made from paper, cardboard, sawdust, than 475 °F (246 °C) on a magnetic thermometer wax, and similar substances to start a fire in an for installation on single wall stove pipes.
Page 15: Fueling Instructions
OPERATION INSTRUCTIONS option for efficient heating. A lower burn rate slows This wood stove has been certified by the US EPA the flow of usable heat out of the home through to meet strict 2020 guidelines. To ensure this unit the chimney, and it also consumes less wood.
Page 16: Air Tubes
OPERATION INSTRUCTIONS AIR TUBES Primary Air Settings The air tubes assembled in this unit are designed to (Slide Damper is located in center of stove under provide an accurate mix of secondary air to ensure hearth plate) the highest efficiency. Any damage or deterioration (Damper Adjustment: Pulling out on damper of these tubes may reduce the efficiency of increases air)
Page 17: Chimney Maintenance
CHIMNEY MAINTENANCE NEVER OPERATE THIS PRODUCT WHILE UNATTENDED • Leave the air control fully open for about 5 min. CAUTION: every time you reload the stove to bring it back DO NOT OVERFIRE APPLIANCE. YOU ARE to proper operating temperatures. The secondary OVERFIRING IF ANY PART OF THE APPLIANCE combustion can only take place if the firebox is GLOWS RED.
Page 18: Glass Care
CHIMNEY MAINTENANCE SMOKE & CO MONITORS • Never wash the glass with a product that may scratch. Use a specialized product, available in Burning wood naturally produces smoke and the stores where wood stoves are sold. The glass carbon monoxide(CO) emissions. CO is a poisonous should be washed only when cold.
Page 19: How To Order Repair Parts
HOW TO ORDER REPAIR PARTS For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: parts@usstove.com The information in this owner’s manual is specific to your unit. When ordering replacement parts the information in this manual will help to ensure the correct items are ordered. Before contacting customer service write down the model number and the serial number of this unit.
Page 20 CB36 BLOWER WIRING DIAGRAM DANGER: SHOCK HAZARD DISCONNECT POWER SOURCE BEFORE INSTALLATION AND WHENEVER SERVICING BLOWER ASSEMBLY. CAUTION: MOVING PARTS CAN CAUSE INJURY. DO NOT OPERATE WITH COVER REMOVED. WHITE / BLACK / BLACK / BLANC NOIR NOIR BLACK / BLACK / BLACK / NOIR...
Page 21: Repair Parts
REPAIR PARTS Part # Description 83432 5/16-18 X 1-1/2 HX HD C/S PL Washer, 5/16”ID X 3/4” OD X 83045 1/16 THK 893719 Diffuser 40292A 6” Flue Collar 88042 1/4” Rope Gasket 83431 Weld Tab 50BK Blower Kit CB36 Blower Assembly 893162 Knob, Wooden 50FAK...
Page 22 REPAIR PARTS Part # Description Wooden Scale 893910 Handle 893730 Handle 40909 Door 88126 5/8” Rope Gasket 893718 Main Glass Gasket - Flat, Glass 88174 (3/16T x 3/8W) 893731 Glass Clamp To order parts: Call 1-800-750-2723 Ext 5051 or Email to: parts@usstove.com Part # Description 893716...
Page 23: Service Record
SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary.
