Xiamen Hanin Electronic Technology iDPRT iD2P Quick Start Manual

Quick Start Guide
iD2P
Cau�on:
This is a Class A product. In a domes�c environment this
product may cause radio interference in which the user
may be required to take adequate measures.
Xiamen Hanin Electronic Technology Co., Ltd.
ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China.
WEB： www.idprt.com
-1-

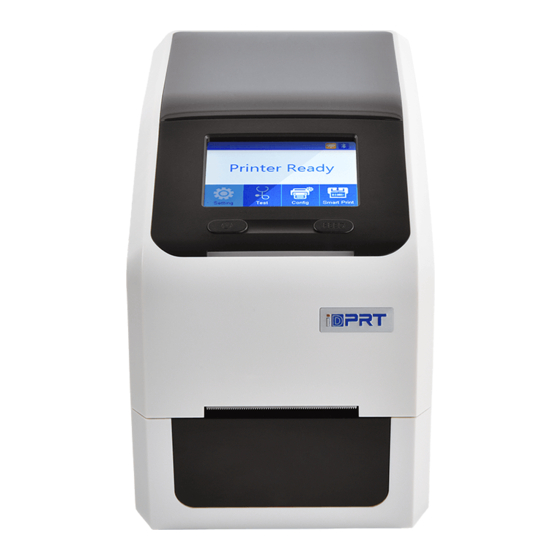

Printer(eg:iD2P)
iD2X
Label Roll
！
Note: The packing items are actually based on the order.
Front
①
②
⑤
Rear
①
②
！
Note: The interface shown in the figure above is for reference only.
Packing List
AC Adapter Power Cord
CD Quick Start Guide
Appearance and Components
Inside
⑤
① Display
② Func�on Bu�on
③ Status Indicator
④ Cover Open Levers
③
⑤ Front Paper Outlet
④
① USB Port (Type A)
② USB Port (Type B)
③ Ethernet Port
① Moveable Label Sensor
④ Back Paper Outlet
② Moveable Label Guides
⑤ Power Receptacle
③ Platen
⑥ Serial Port
⑤
④ Upper Sensor
⑥
⑤ Serrated Knife
③ ④
⑥ Print Head Module
-2-
FCC WARNING：
This device complies with part 15 of the FCC Rules.
Opera�on is subject to the following two condi�ons:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference
sired opera�on.
USB Cable
Any changes or modifica�ons not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protec�on against
harmful interference when the equipment isoperated
in a commercial environment. This equipment
generates, uses, and canradiate radio frequency
⑥ energy and, if not installed and used in accordance
with the instruc�on manual, may cause harmful
interference to radio communica�ons. Opera�onof
this equipment in a residen�al area is likely to cause
harmful interference in whichcase the user will be
④
required to correct the interference at his own
expense.
-- Reorient or relocate the receiving antenna.
①
②
-- Increase the separa�on between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit
③
different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV tech
nician for help.
To maintain compliance with FCC's RF Exposure
guidelines, This equipment should be installed and
operated with minimum distance between 20cm the
radiator your body: Use only the supplied antenna.
that may cause unde
