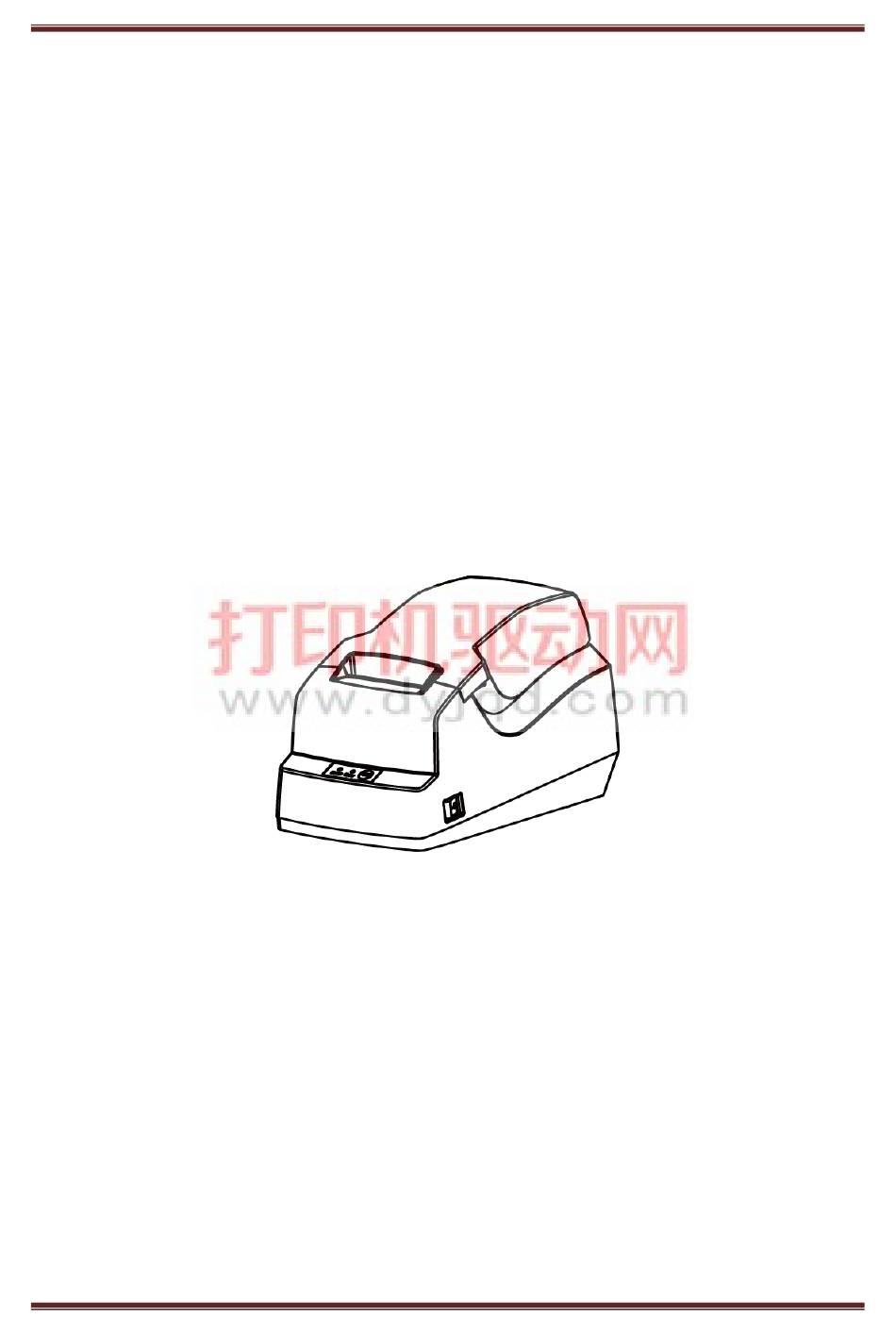

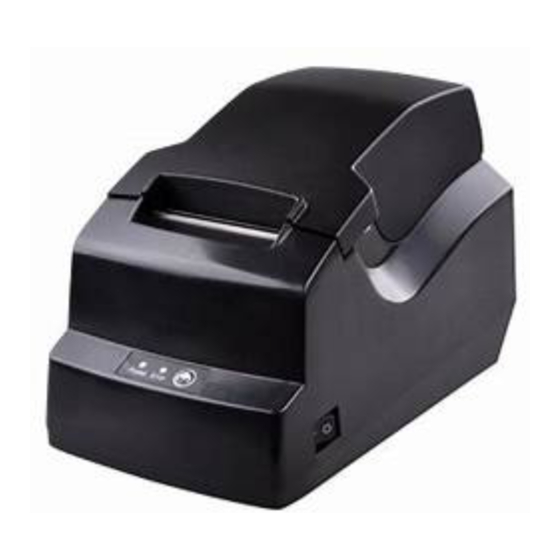

- Page 1 HTP58B User Manual Xiamen Hanin Electronic Technology Co.,Ltd. ADD: Room 305A,Angye Building, Pioneering Park, Torch High-tech Zone, Xiamen, China 361009 Tel: +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com...
- Page 2 REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2014.11.07 Preliminary Cui Xiao Yang Kaiqu Ren Xiaowei 1.Modify the Chinese and Alphanumeric of characters;(P6) 2015.10.23 Lin Yun Yang Kaiqu Ren Xiaowei 2.Add 4.6 Ethernet Interface;(P14) 3.Update Chapter 6 Printer Cleaning.(P16)
-
Page 3: Table Of Contents
CONTENTS Statement......................... 1 Important Safety Instructions...................2 1.Production Introduction ....................3 1.1 Packing List......................3 1.2 Appearance ......................4 1.3 Definition of the LED Indicator ................5 2.Specifications.........................6 2.1 General Specification ..................6 2.2 Overall Structure Dimensions................7 3. Operation Methods ...................... 9 3.1 Paper Roll Installation .................. -
Page 4: Statement
Electronic Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co., Ltd. Without any written permission from the company, any section of this manual is prohibited to be copied or transferred in any form. -
Page 5: Important Safety Instructions
HTP58B User Manual Important Safety Instructions 1. Safety Warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. Warnings: Do not touch the thermal head and connector in case static damage the printer head. -
Page 6: Production Introduction
HTP58B User Manual 1.Production Introduction 1.1 Packing List Standard Accessories Printer Power Cord Power Adapter Paper Roll Quick Start Guide Optional Accessories USB Cable Parallel Cable Serial Cable Rev.1.1 www.hprt.com... -
Page 7: Appearance
HTP58B User Manual 1.2 Appearance Rev.1.1 www.hprt.com... -
Page 8: Definition Of The Led Indicator
HTP58B User Manual Specification of some part elements 1) Power indicator(Green) Indicate the status of power. 2) Error indicator(Red) Indicate the error status of printer. 3) Feed Button ①Feed paper When printer is in normal, push this button to feed paper. Pushing it once, printer feed a fixed distance. -
Page 9: Specifications
HTP58B User Manual 2.Specifications 2.1 General Specification Table2-1 General Specification (1/2) Items Parameter Printing method Thermal line printing Resolution 203dpi Printing width 48mm Printing Printing speed 100mm/s RS232/USB/Cash drawer/Ethernet/Parallel Interface(Optional) (It depends on the different model) 20K Byte Memory Flash... - Page 10 HTP58B User Manual Table2-1 General Specification(Continued) (2/2) Items Parameter Power indicator Green indicator Error indicator Input 2A( External power adapter) Power supply Paper type Thermal paper Paper width Recommended paper FD210,PD150R,PD160R (OJI Paper CO.,LTD.) Paper Paper thickness 0.06~0.07mm...
-
Page 11: Overall Structure Dimensions
HTP58B User Manual 2.2 Overall Structure Dimensions Rev.1.1 www.hprt.com... -
Page 12: Operation Methods
HTP58B User Manual 3.Operation Methods 3.1 Paper Roll Installation 1.Push the cover open lever on any side of top cover and lift upwards. 2.Load the paper roll in the correct direction as shown below. And make sure the printable side of the paper(thermosensitive layer) is facing to the thermal print head. -
Page 13: Basic Operation
If there is a need of long distance printing, push the button continuously. 3.2.4 Tear Paper After printing, it need to tear the receipt off the paper roll. HTP58B has a convenient design of tear bar. Pay attention to the direction when tearing the paper. Rev.1.1... -
Page 14: Interfaces
HTP58B User Manual 4.Interfaces 4.1 USB Interface 4.1.1 Connecting USB Cable 1) Confirm the power switch is turned off. 2) As shown, insert the USB cable into the USB interface, and ensure they are matched. 3) The other end of USB interface cable should connect to the host. -
Page 15: Power Specification
HTP58B User Manual 4.2.2 Power Specification The power of HTP58B is 12V 4.3 Cash Drawer Interface 4.3.1 Connecting Cash Drawer 1) Confirm the printer power is turned off. 2) Insert the cash drawer cable into the cash drawer connector on the back of the printer. -
Page 16: Rs232 Interface
HTP58B User Manual 4.4 RS232 Interface 4.4.1 Connecting RS232 Cable 1) Connect the suitable interface cable with the 2) Correct connector to the connector of the interface board of the printer plug screws 3) Connect the other end of the interface cable to the host. -
Page 17: Parallel Specification
HTP58B User Manual 4.5.2 Parallel Specification Pin No. Signal name Direction Signal definition Gating pulse which host output to printer ST ROBE 8 data lines D0~D7 Acknowledge signal which indicates already A CK receive data Printer is busy that can’t receive new data... -
Page 18: Troubleshooting
HTP58B User Manual 5.Troubleshooting 1.Power indicator is off. Check the connection of power cable and power socket. 2.Error indicator is on when there is no printing. If there is a paper roll If there is out of paper ... -
Page 19: Printer Cleaning
HTP58B User Manual 6.Printer Cleaning Print quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※ CAUTION Make sure to turn off the printer prior to cleaning.
