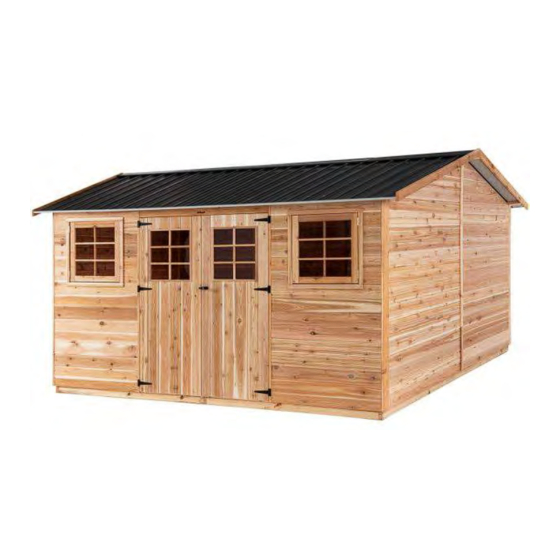

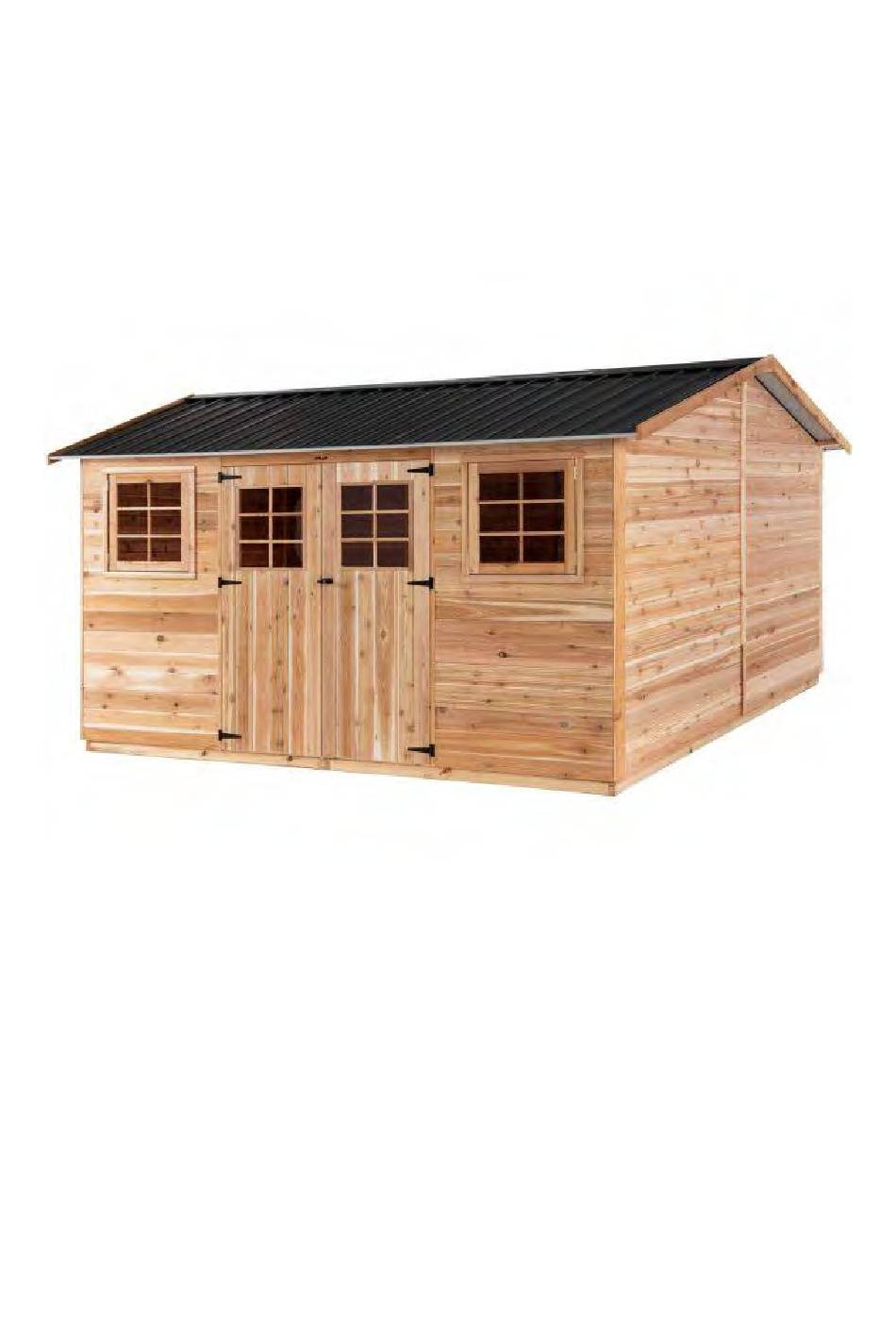

ASSEMBLY INSTRUCTIONS
'Jarrah' 12x10
S3071
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jarrah S3071 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA Jarrah S3071

Summary of Contents for STILLA Jarrah S3071

  • Page 1 STILLA ASSEMBLY INSTRUCTIONS ‘Jarrah’ 12x10 S3071 Every part needed to construct your shed is included inside the pack; cedar panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully unpack all the parts & check against the parts checklist before contacting...
  • Page 2 • If you are installing your shed on the Stilla heavy duty floor, this can be placed on unlevelled surfaces and levelled up by using the 100x100 stumps provided.
  • Page 3 JARRAH 12x10 PARTS CHECKLIST Part Code Checked Part Description Cedar Clad Ply Panel 1500x1895mm Cedar Clad Ply Panel 900x1895mm Cedar Clad Ply Window Panel 1080x1895mm Colonial Door 2x 714x1770mm 10ft Ply Gable Corner Post 1890x65x20mm Cover Strip 1890x40x7mm 10ft Fascia Pack Collar Tie Roof Rafter 1520x70x45mm Door Head 1440x130mm...
  • Page 4 Annex Kit – Option (add screws) 3920mm x 1450mm Part Code Checked Part Description Veranda Beam Joiner 700x70x45mm VOBJ Veranda Outer Beam Joiner 700x140x35mm Veranda Beam 1960x70x45mm Veranda Outer Beam 1960x140x35mm Veranda Rafter 1320x70x45mm Veranda fascia 1350x75x20 block cedar 1450mm Veranda Roof Sheet Veranda Posts 2400x90x90mm P a g e...
  • Page 5 If no floor option was purchased, go to step 2.0 (Wall Assembly) SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL STEP 1.0 FLOOR KIT 1.0 – FLOOR KIT (1 of 4 floor frames) PART CODE QTY DESCRIPTION Floor End Plate 1542mm Floor Single Joist 1730mm Double Joist 1730mm 100BS...
  • Page 6 STEP 1.1 FLOOR FRAME INSTALLATION The 12x10 floor frame comes in four parts. Install first floor frame in desired position at desired height and fasten to logs once level and square, then join and fasten next frame until all four are joined and secured to logs. 1.1 –...
  • Page 7 STEP 1.2 FLOOR NOG INSTALLATION 1.2 – FLOOR NOG INSTALLATION PART CODE QTY DESCRIPTION Floor Nog 333x42x35mm 65HHS 65mm Hex Head Screws 1.2 – FLOOR NOG INSTALLATION Mark out measurements shown below (centre of nog). Fasten Floor Nogs (FN) in positions shown in diagram below using 1x 65HHS per join.
  • Page 8 STEP 1.3 FLOOR INSTALLATION 1.3 – FLOORING INSTALLATION PART CODE QTY DESCRIPTION Floor Board 1798x800mm Floor Board 1198x800mm Floor Board 1798x306mm Floor Board 1198x306mm 50PS 50mm Philips Screw 1.3 – FLOORING INSTALLATION Fasten floor sheets to floor frame as shown in diagram below using 50PS. Bring Floor sheets in 47mm on two EP sides from the outside of the floor frame and 44mm from the two DJ sides as seen below.
  • Page 9 STEP 2.0 DOUBLE DOOR WALL PANEL LAYOUT The 12x10 Jarrah comes standard with a double door in the non-gable end of the shed with two window panels either side, as seen in the plan below. Follow the steps outlined in the following pages to assemble this plan in the correct order. Note: Any additional window panels purchased can be positioned and replace any of the 1500 panels (15P) seen on this plan.
  • Page 10 STEP 2.1 WALL ASSEMBLY 2.1 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE DESCRIPTION 1080mm Front Window Panel 1500mm Panel 65HHS 65mm Hex head screw 2.1 - ASSEMBLY – WALL ASSEMBLY Screw through FWP into 15P (top, centre & bottom) using 3 x 65HHS*. Cedar strip on FWP or FP should be on the door side.
  • Page 11 STEP 2.2 WALL ASSEMBLY 2.2 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Panel 65HHS 65mm Hex head screw 2.2 - ASSEMBLY – WALL ASSEMBLY Screw through 15P into 15P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 12 STEP 2.3 WALL ASSEMBLY 2.3 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.3 - ASSEMBLY – WALL ASSEMBLY Screw through 15P into 9P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 13 STEP 2.4 WALL ASSEMBLY 2.4 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.4 - ASSEMBLY – WALL ASSEMBLY Screw through 9P into 9P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 14 STEP 2.5 WALL ASSEMBLY 2.5 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.5 - ASSEMBLY – WALL ASSEMBLY Screw through 9P into 9P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 15 STEP 2.6 WALL ASSEMBLY 2.6 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.6 - ASSEMBLY – WALL ASSEMBLY Screw through 9P into 9P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 16 STEP 2.7 WALL ASSEMBLY 2.7 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Panel 65HHS 65mm Hex head screw 2.7 - ASSEMBLY – WALL ASSEMBLY Screw through 15P into 9P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 17 STEP 2.8 WALL ASSEMBLY 2.8 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Panel 65HHS 65mm Hex head screw 2.8 - ASSEMBLY – WALL ASSEMBLY Screw through 15P into 15P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 18 STEP 2.9 WALL ASSEMBLY 2.9 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1080mm Front Window Panel 65HHS 65mm Hex head screw 2.9 - ASSEMBLY – WALL ASSEMBLY Screw through FWP into P (top, centre & bottom) using 3 x 65HHS*. Cedar strip on FWP or FP should be on the door side.
  • Page 19 STEP 3.0 DOOR HEAD INSTALL 3.0 - ASSEMBLY PARTS – DOOR HEAD INSTALL PART CODE QTY DESCRIPTION 1440x130mm Door Head 65HHS 65mm Hex Head screw 3.0 - ASSEMBLY – DOOR HEAD INSTALL Hold DH flush with top of panels and flush with exterior cedar cladding, screw through FWP into DH using 2x 65HHS per side.
  • Page 20 STEP 3.1 DOOR STEP INSTALL 3.1 - ASSEMBLY PARTS – DOOR STEP INSTALL PART CODE QTY DESCRIPTION 1440x42x19mm Door Step 40mm Nail 3.1 - ASSEMBLY – DOOR STEP INSTALL Nail Door Step in position using 4x 40N* as seen below. Ensure wall panels are tight against DS. * This is if floor option was chosen.
  • Page 21 STEP 3.2 GABLE ASSEMBLY 3.2 - ASSEMBLY PARTS – GABLE ASSEMBLY (1 OF 2 gables) PART CODE QTY DESCRIPTION 10ft Gable (left and right) 610mm Back Gable Cover Strip 65HHS 65mm Hex head screw 40mm Nail 3.2 - ASSEMBLY – GABLE ASSEMBLY (1 OF 2 gables) Lay left and right gables (G) on a flat surface with the frame facing upwards, as seen below.
  • Page 22 STEP 3.3 GABLE INSTALL 3.3 - ASSEMBLY PARTS –GABLE INSTALL (1 of 2 Gables) PART CODE QTY DESCRIPTION Assembled 10ft Gable 65HHS 65mm Hex head screw 3.3 - ASSEMBLY –GABLE INSTALL (1 of 2 Gables) Carefully place assembled gable on back wall, ensuring groove on gable slots into the tongue on the wall, as seen below.
  • Page 23 STEP 4.0 ROOF FRAME ASSEMBLY 4.0 - ASSEMBLY PARTS – ROOF ASSEMBLY (REPEAT TWICE) PART CODE QTY DESCRIPTION Roof End Plate 1755x70x45mm Roof Rafter 1520x70x45mm Joining Plate 1112x70x45mm 75BS 75mm Batten Screw 4.0 - ASSEMBLY – ROOF ASSEMBLY (1 of 2 frames) It helps to find a flat, level surface to complete this process on.
  • Page 24 STEP 4.1 ROOF ASSEMBLY 4.1 - ASSEMBLY PARTS – ROOF ASSEMBLY (ROOF SHEETS) PART CODE QTY DESCRIPTION 1800mm roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 4.1 - ASSEMBLY – ROOF ASSEMBLY (ROOF SHEETS) It helps to find a flat, level surface to complete this process on. Position roof sheets (RS) at either end of roof frame and fasten in place as indicated in diagrams.
  • Page 25 STEP 4.2 ROOF ASSEMBLY 4.2 - ASSEMBLY PARTS – ROOF ASSEMBLY (ROOF SHEETS) PART CODE QTY DESCRIPTION 1800mm roof sheet 1800mm Single Pan roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 4.2 - ASSEMBLY – ROOF ASSEMBLY (ROOF SHEETS) Complete laying roof sheeting out on frame.
  • Page 26 STEP 4.3 ROOF ASSEMBLY 4.3 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 4.3 - ASSEMBLY – ROOF ASSEMBLY Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top is complete screw bottom off using 1 x 40RS through every rib.
  • Page 27 STEP 4.4 CHANNEL ASSEMBLY If you purchased the Annex, leave the channel off the side you will be installing your Annex 4.4 - ASSEMBLY PARTS – CHANNEL ASSEMBLY PART CODE QTY DESCRIPTION 12mm self-tapping screw Roof Channel 4.4 - ASSEMBLY – CHANNEL ASSEMBLY Slide Roof channel onto end of roof sheeting overhang.
  • Page 28 STEP 4.5 ROOF END PIECE 4.5 - ASSEMBLY PARTS – RIDGE BEAM BRACKET PART CODE QTY DESCRIPTION Roof End Piece 203x70x30mm 65BS 65 Batten Screws 4.5 - ASSEMBLY – ROOF END PIECES TO GABLES Standing inside shed on ladder, screw roof end pieces to top of gable in required positions using 1x 65BS per piece.
  • Page 29 STEP 4.6 ROOF INSTALLATION 4.6 - ASSEMBLY PARTS – ROOF INSTALLATION PART CODE QTY DESCRIPTION Completed roof panels 75BS 75mm Batten Screw 4.6 - ASSEMBLY – ROOF INSTALLATION Slide roof frame into position. Ensure point of roof frame is flush with middle of gable as seen below.
  • Page 30 STEP 4.7 ROOF INSTALATION 4.7 - ASSEMBLY – ROOF INSTALLATION PART CODE QTY DESCRIPTION 40RS 40mm Roof Screws 25RS 25mm Roof Screws 4.7 – ASSEMBLY – ROOF INSTALLATION Fully fasten down the roof sheeting onto the Roof End Pieces (E) as seen below. Use 2x 25RS to screw into the top E of each side and 2x 40RS to screw into the bottom E of each side.
  • Page 31 STEP 4.8 COLLAR TIE INSTALLATION 4.8- ASSEMBLY PARTS – COLLAR TIE INSTALLATION PART CODE QTY DESCRIPTION Collar tie 40RS 40mm Roof Screw 75BS 75mm Batten Screw 4.8 - ASSEMBLY – COLLAR TIE INSTALLATION Holding Collar tie tight and level in position screw through CT into Roof Rafters in predrilled holes, using 6x 40RS per collar tie.
  • Page 32 STEP 5.0 DOUBLE DOOR HINGE ASSEMBLY 5.0 - ASSEMBLY PARTS – DOUBLE DOOR HINGE ASSEMBLY PART CODE DESCRIPTION Hinge Hinge Screw Doors 5.0 - ASSEMBLY – DOUBLE DOOR HINGE ASSEMBLY Place door on back and hold hinge (H) in position. Fasten hinges to door using 3 x hinge screws (HS) per hinge.
  • Page 33 STEP 5.1 DOUBLE DOOR INSTALLATION 5.1 - ASSEMBLY PARTS – DOUBLE DOOR INSTALLATION PART CODE DESCRIPTION Doors Hinge screw 5.1 - ASSEMBLY – DOUBLE DOOR INSTALLATION Hold door in position, 3mm down from top. Front of the door when closed will be flush with front of VJ cladding.
  • Page 34 STEP 5.2 PAD BOLT INSALLATION 5.2 - ASSEMBLY PARTS – PAD BOLT INSTALLATION PART CODE DESCRIPTION Pad bolt Hinge Screw 5.2 - ASSEMBLY – PAD BOLT INSTALLATION Hold PB in position and fasten to door. Mark centre of bolt and drill 12mm hole in marked closed position.
  • Page 35 STEP 5.3 DOOR HANDLE ASSEMBLY 5.3 - ASSEMBLY PARTS – DOOR HANDLE ASSEMBLY PART CODE QTY DESCRIPTION T Handle 5.3 - ASSEMBLY – DOOR HANDLE ASSEMBLY Mark and drill 12mm centre hole in position shown, 50mm in from door edge. T Handle must be installed centre of the centre door brace (on the back) Insert T handle in position and mark two outside holes.
  • Page 36 STEP 5.4 DOOR HANDLE ASSEMBLY 5.4 - ASSEMBLY PARTS – DOOR HANDLE ASSEMBLY PART CODE QTY DESCRIPTION T Handle Leaver Packer Hinge screw 5.4 - ASSEMBLY – DOOR HANDLE ASSEMBLY Holding P in position, fasten to door (door with pad bolts) Holding door in closed position, flush with other door - slide leaver onto T Handle and tighten once hitting packer on fixed door.
  • Page 37 STEP 6.0 CORNER POST ASSEMBLY 6.0 - ASSEMBLY PARTS – CORNER POST ASSEMBLY PART CODE QTY DESCRIPTION 1890mm Corner Post 40mm Nail 6.0 - ASSEMBLY – CORNER POST ASSEMBLY Hold corner post (CP) in position, nail through CP into wall stud using 6x 40N evenly spaced along CP.
  • Page 38 STEP 6.1 COVER STRIP ASSEMBLY 6.1 - ASSEMBLY PARTS – COVER STRIP ASSEMBLY PART CODE QTY DESCRIPTION 1890mm Cover Strip 40mm Nail 6.1 - ASSEMBLY – COVER STRIP ASSEMBLY Hold cover strips (CS) over joins in walls, nail through CS into wall panel using 6x 40N evenly spaced per CS.
  • Page 39 STEP 6.2 FASCIA ASSEMBLY 6.2 - ASSEMBLY PARTS – FASCIA ASSEMBLY PART CODE QTY DESCRIPTION Fascia 40mm Nail 6.2 - ASSEMBLY – FASCIA ASSEMBLY Hold fascia’s in position. Flush with bottom of battens and joining evenly at the top. STEP 6.3 RIDGE CAP INSTALLATION 6.3 - ASSEMBLY PARTS –...
  • Page 40 STEP 6.4 6.4 - ASSEMBLY PARTS – FIXING TO BASE PART CODE QTY DESCRIPTION 65HHS 65mm Hex Head Screw 6.4 - ASSEMBLY – FIXING TO BASE Once shed is in desired position and doors are sitting evenly you can now fix your shed to the base.
  • Page 41 STEP 7.0 ANNEX FRAME ASSEMBLY If you did not purchase this option please skip this step 7.0 - ASSEMBLY PARTS – ANNEX FRAME PART CODE QTY DESCRIPTION Veranda Beam 1960x70x45mm Veranda Beam Joiner 700x70x45mm Veranda Outer Beam 1960x140x35mm VOBJ Veranda Outer Beam Joiner 700x140x35mm Veranda Rafter 1320x70x45mm 65BS 65mm Batten Screw...
  • Page 42 STEP 7.1 ANNEX ROOF 7.1 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 1450mm Veranda Roof Sheet 40RS 40mm roof screw 25RS 25mm roof screw 7.1 - ASSEMBLY – ANNEX ROOF It helps to find a flat, level surface to complete this process on. Position veranda roof sheets (VRS) at either end of roof frame and fasten in place as indicated in diagrams.
  • Page 43 STEP 7.2 ANNEX ROOF 7.2 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 1450mm veranda roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 7.2 - ASSEMBLY – ANNEX ROOF Complete laying roof sheeting out on frame. Fasten roof sheets to beams in sequence shown.
  • Page 44 STEP 7.3 ANNEX ROOF 7.3 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 7.3 - ASSEMBLY – ANNEX ROOF Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top is complete screw bottom off using 1 x 40RS through every rib.
  • Page 45 44 | P a g e...
  • Page 46 STEP 7.5 ANNEX ROOF INSTALATION 7.5 - ASSEMBLY PARTS – ANNEX ROOF INSTALLATION PART CODE QTY DESCRIPTION Veranda Posts 2400x90x90mm 100BS 100mm batten screw 200PB 200mm M12 Post Bolt M12 Washer 7.5 - ASSEMBLY – ANNEX ROOF INSTALLATION 1. Using at least 3 people, butt the veranda roof hard up under shed roof as seen below. Support front of veranda roof while fastening through frame into shed wall studs, using 4x 100BS.
  • Page 47 STEP 7.6 ANNEX FASCIA 7.6 - ASSEMBLY PARTS – ANNEX FASCIA PART CODE QTY DESCRIPTION Veranda fascia 1350x75x20 block cedar 40mm nail 7.6 - ASSEMBLY – ANNEX FASCIA Once fascia’s are on shed, trim annex fascia to butt in and finish correctly. Nail through fascia using 4 x 40N per fascia.
  • Page 48 IMAGES TO HELP WITH INSTALLATION FLOOR 47 | P a g e...
  • Page 49 48 | P a g e...
  • Page 50 49 | P a g e...
  • Page 51 50 | P a g e...
  • Page 52 51 | P a g e...
  • Page 53 52 | P a g e...
  • Page 54 53 | P a g e...

  • Page 55: Product Maintenance

    TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.stilla.com.au/warranty and complete the online form. We recommend that you complete this step once you have finished installing your product.
  • Page 56 SHOW US YOUR SHED We would love to see a photo of your STILLA product installed in your backyard. Please upload this image when completing the warranty registration. Alternatively, you can send the photos by email to sales@stilla.com.au. If you require any assistance, please feel free to call or email.
