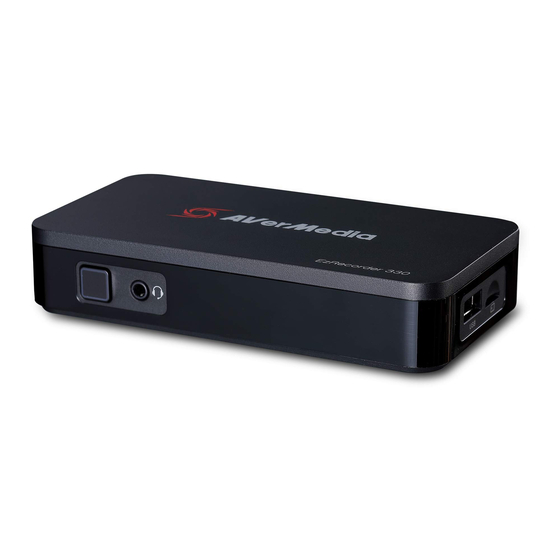

Avermedia ER330 Quick Installation Manual
  1. Manuals
  2. Brands
  3. Avermedia Manuals
  4. PCI Card
  5. ER330
  6. Quick installation manual

Avermedia ER330 Quick Installation Manual

Hide thumbs Also See for ER330:
1
2
3
4
5
6

Advertisement

Table of Contents

AVerMedia ER330 Quick Installation Guide

System Requirements

https://www.avermedia.com/uk/product-detail/ER330
•
Interface: Standalone
•
Storage: - microSD card
- External USB 2.0 HDD
- NAS
•
Video Input: HDMI/Composite
•
Video Output: HDMI
•
Audio Input:
- HDMI 2.0
- AV IN (connects with the supplied composite A/V cable)
- 3.5 mm (4-pole, CTIA standard)
•
Audio Output:
- HDMI 2.0
- 3.5 mm (4-pole, CTIA standard)
•
Max Pass-Through Resolutions: 4Kp60
•
Max Recording Resolutions: 1080p60
•
Supported Resolutions (Video Input): 2160p, 1080p, 1080i, 720p, 576p, 576i, 480p,
480i
•
Record Format: MPEG 4 (H.264 + AAC) or (H.265 + AAC)
•
Net Connection: Ethernet (10 Base-T/100 Base-T)
•
Dimensions (W x D x H): 135 * 71.2 * 28 mm (5.31 * 2.8 * 1.1 in)
•
Weight: 150 g (5.29 oz)
- ER330 does not support viewing/recording/streaming of HDCP protected signals
Date: 2022 Aug For Amazon
AVerMedia Customer Service Team
TechnicalSupport@avermedia.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avermedia ER330

Summary of Contents for Avermedia ER330

  • Page 1 Net Connection: Ethernet (10 Base-T/100 Base-T) • Dimensions (W x D x H): 135 * 71.2 * 28 mm (5.31 * 2.8 * 1.1 in) • Weight: 150 g (5.29 oz) - ER330 does not support viewing/recording/streaming of HDCP protected signals...
  • Page 2 Typical issue trouble shooting Question 1: Scheduled recordings can only be made on the USB stick and not on the NAS? Answer: Our product can support NAS, HDD, SD card How to set up the NAS , please see this FAQ: Export /Import the NAS file.
  • Page 3 How to share the folder, you could refer this link: https://kb.synology.com/en- sg/DSM/help/DSM/AdminCenter/file_share_create?version=6 Refer site: Create a Shared Folder | DSM - Synology Knowledge Center Step5 Press[F2] to import the NAS configuration file.
  • Page 4 Question 2: Doesn’t it work with my video to HD converter? Answer: 1) Confirm HDMI output resolution if it supports the ER330 Supported Resolutions (Video Input): 2160p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i 2) Log file download: 1.If the “No Video ”error on the screen occurs, please send the log file for our check 2.Press the [info] button, and the Recording Mode info will pop up on the screen.
  • Page 5 4 Take out the SD card or any storage driver from the device and then plug it into the PC computer/laptop. 5. Copy the file ER330_xxx_log.bak and send it to AVerMedia. * Please don't close the ER330 device, please copy the file for us directly.
  • Page 6 -software problems. Always stops. -Defective software problems! -My settings are always lost. Always have to hire new ones. Very bad software! -Always software error! Almost impossible to use! Download link: https://storage.avermedia.com/web_release_www/software/ER330_FW_1.1.9.2.zip Date：2021-11-30 Version：[Application & FW] FW 1.1.9.2 OS：N/A Issue closed: 1.Fixed the problem where Plasma TV interference with IR remote.
