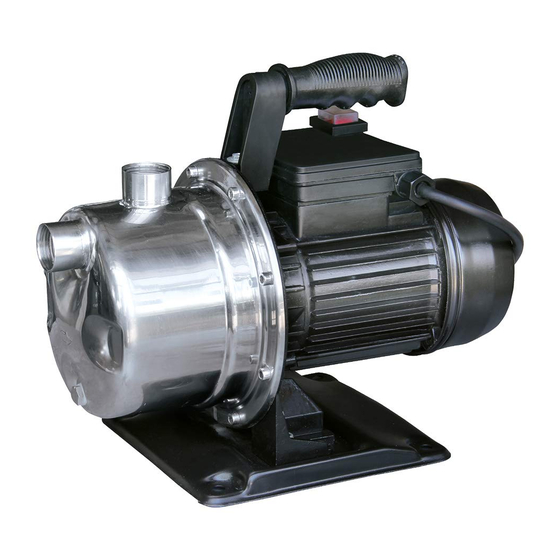

Pentair FLOTEC Quick Start Manual

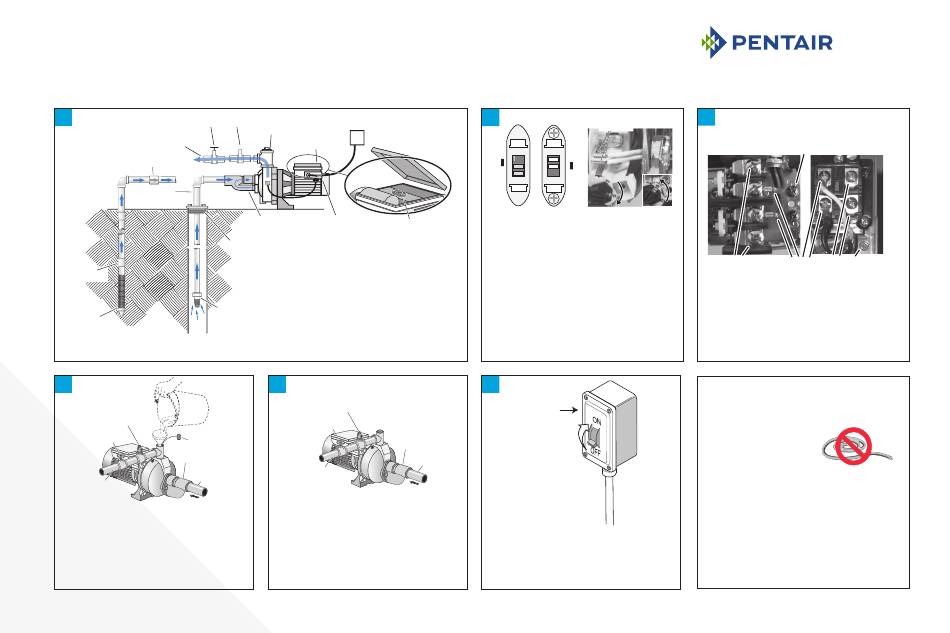

Quick Start Guide: Shallow Well
Jet Pumps, 115/230 Volt
1
Outlet Valve Rellef Valve
Flow to Pressure Tank and
Household Water System
Check Valve
Suction Pipe
Well Seal
Drive
Coupling
Foot
Valve
Drive
Point
Driven Point
Cased Well
Well
4
Relief Valve
Outlet Valve
Priming
Plug
Ejector
From
Well
Pump
Outlet Line
PUT WATER IN THE PUMP.
1. The pump must be filled with water (primed) before
operating. Once running, the pump is self-priming. It
should not need priming again unless air enters the
pump or the inlet line.
2. Install the priming plug.
3. Make sure all plumbing connections are tight.
Do Not Turn On Power Yet!
Priming Tee
and Plug
Motor
Fuse Box or
Capacitor
Circuit Breaker
Cover
Pressure Switch
Ejector (Jet kit
Quick-Set
contains nozzle
Voltage
and venturi)
Switch
INSTALL THE PUMP
1. Locate the pump near the water source.
2. Consult manual for booster applications.
5
Relief Valve
Outlet Valve
Ejector
From
Well
Pump
Outlet Line
OPEN VALVES
Check the air charge in the pressure tank. With no water
pressure, the tank air charge must be 2 psi LESS THAN
the pressure switch ON setting.
Open the outlet valve in the outlet line.
NOTE: No pressure regulator required for shallow well
installation.
Refer to the Installation and Operations Manual for further information.
2
Power Supply
Terminals
115
15 15
230 230
230
230 Volt 115 Volt
CHECK VOLTAGE SETTING
1. Turn off power to the pump!
2. Determine if the circuit for the pump is 115 or 230 volts.
3. Qualified person must install electrical wiring.
4. The voltage switch is factory set to 230 volts for 3/4, 1,
1-1/2, and some 1/2 HP motors. Some 1/2 HP motors are
preset at the factory for 115 volts.
5. To change the motor voltage (if necessary), a) remove
the motor capacitor cover and slide the switch to the
correct voltage, or b) remove the motor end cover and
turn the dial switch to the correct setting.
6. Reinstall the cover.
Do Not Turn On Power Yet!
6
Circuit Breaker
APPLY POWER
Turn on circuit breaker to apply power to pump.
APPLY POWER
Water should flow within 5 minutes. If it does not, turn
off power and re-prime per step 4.
FLOTEC
Accessories sold separately.
3
Typical Pressure Switches (Covers Removed)
Ground
Line To Motor Line Ground
CONNECT POWER SUPPLY WIRING TO PRESSURE SWITCH
1. Remove the pressure switch cover.
2. Attach power lines and ground wires to the pressure
switch as indicated.
3. Reinstall the cover.
4. Do Not Turn On Power Yet!
Do Not Turn On Power Yet!
NOTE:
Hazardous voltage. Disconnect power before
installation.
High pressure. Risk of high heat and possible
explosion if pump is run with outlet closed.
• DO NOT run the pump without
water, and never operate it with a
closed outlet line.
• DO NOT connect hoses
to the pump.
• DO NOT connect to pressurized
supply (city water or other
pump's output) unless safety
devices are properly installed.
• DO NOT reduce the pipe size for inlet or outlet
lines.
• DO have an air-tight inlet line.
• DO read and follow the instructions in the manual.
• DO have electrical and plumbing systems
installed by qualified professionals.
• Some pumps are not recommended for use as a booster.
Consult factory or refer to owners manual to determine
if the product can be applied as a booster.
For support, navigate to pentair.com/flotec.
U834 (05/20/20)
