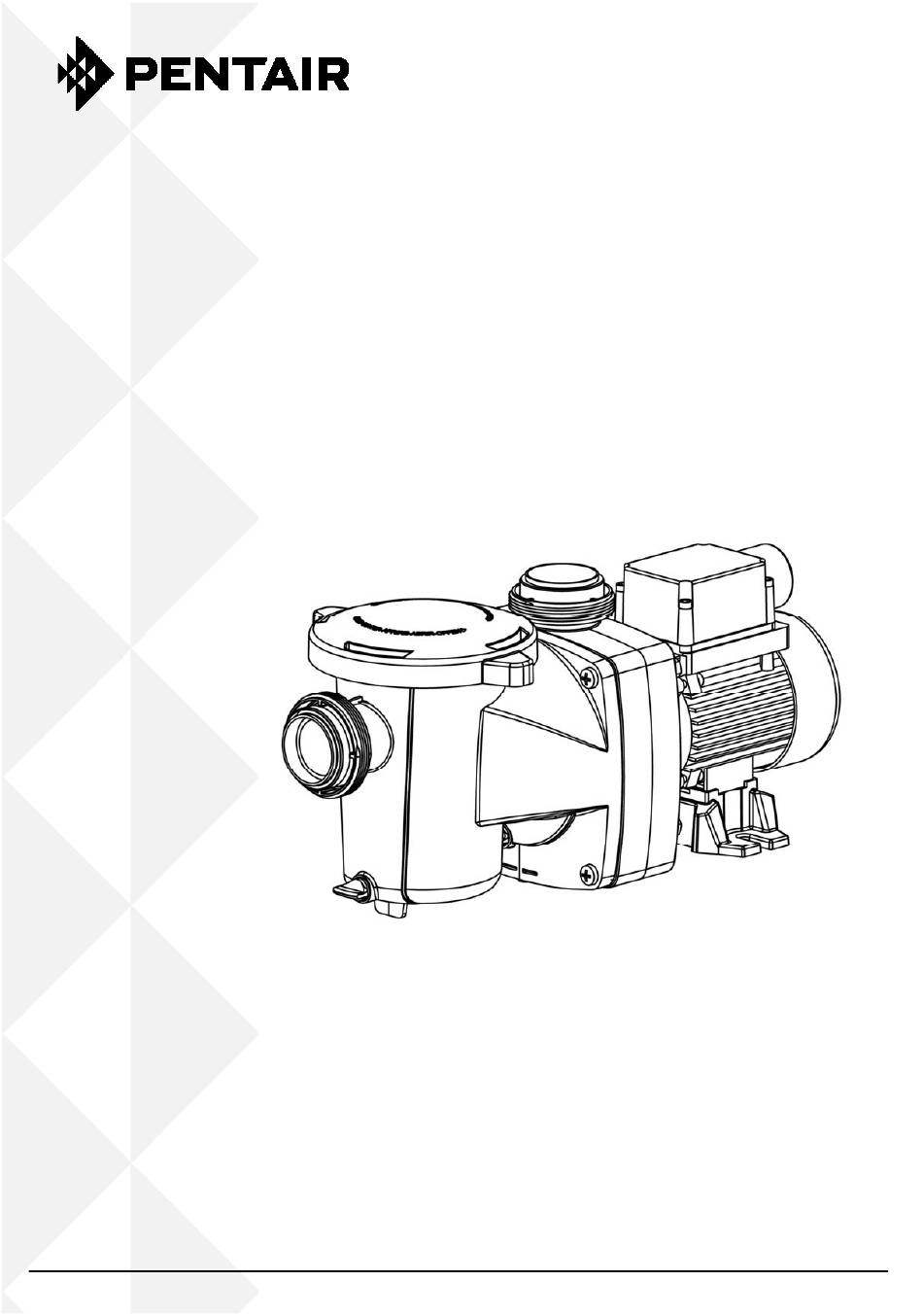

- Page 1 FREEFLO HIGH PERFORMANCE PUMP INSTALLATION GUIDE / INSTALLATIEHANDLEIDING BEDIENUNGSANTLEITUNG / GUIDE DE L’INSTALLATION GUIA DE INSTALACION / GUIDE ALL’INSTALLAZIONE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
- Page 2 Trademarks and disclaimers: All Pentair trademarks and logos are owned by Pentair, Inc. FreeFlo™ and Cam and Ramp™ are trademarks of Pentair Water Pool and Spa, Inc. and/or its affiliated companies in the United States and/ or other countries. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc.
- Page 3 The pump must be supplied through a residual current device (RCD) having a rated residual operating current • not exceeding 30mA. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified • persons in order to avoid a hazard. PUMPS FREEFLO™ High Performance Pump...

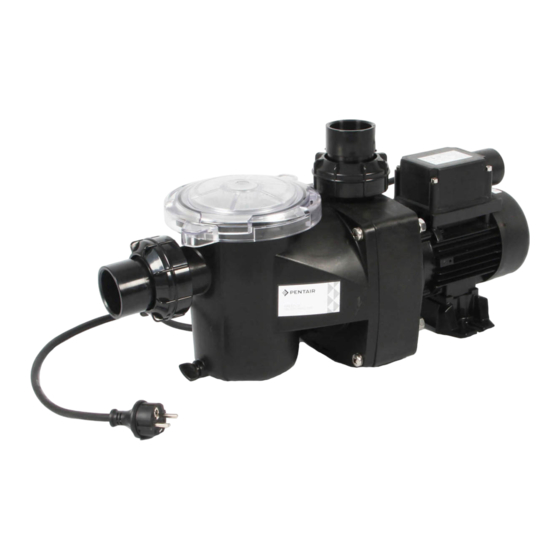

- Page 4 FreeFlo™ High Performance Pump Overview The perfect choice for all types of pools, the FreeFlo™ pump was specifically designed to be your best choice for a variety of aboveground and inground pools. Thick walled body parts, a heavy duty motor, and highly engineered hydraulics make this rugged and tested design perfect for any pool, spa, water feature, or fountain.
- Page 5 (AS/NZS 3000). Run a wire from the equipotential bonding terminal on the pump to the pool bonding structure. Please see diagram below for location of equipotential bonding terminal. Equipotential Bonding Terminal Equipotential Bonding Connection PUMPS FREEFLO™ High Performance Pump...
-
Page 6: Pump Installation
Opening the pump may cause serious personal injury. In order to avoid the possibility of personal injury, make sure the suction and discharge valves are open and strainer pot temperature is cool to touch, then open with extreme caution. PUMPS FREEFLO™ High Performance Pump... - Page 7 Store the plugs and the O rings in the pump basket. Cover the motor to protect it from severe rain, snow and ice. Do not wrap the motor in plastic. It will cause condensation and rust on the inside of the motor. PUMPS FREEFLO™ High Performance Pump...
-
Page 8: Troubleshooting
Pump strainer O - Ring defective Replace O – Ring. REDUCED CAPACITY AND/OR HEAD Check suction piping and valve glands on any suction gate valves. Air pockets or leaks in suction line Clogged impeller Clean debris from impeller. PUMPS FREEFLO™ High Performance Pump... -
Page 9: Technical Data
540 mm (21.3 in) IP Rating IP55 550W 562 mm (22.2 in) Electrical Rating 220-240V, 50Hz, Single Phase 750W 562 mm (22.2 in) Built in auto reset thermal Motor 1100W 600 mm (23.6 in) overload protection. PUMPS FREEFLO™ High Performance Pump... - Page 10 Pentair Water (Suzhou) Co., Ltd. 371 He Shan Rd Suzhou, JiangSu China +86 512 66617690 Direct FFL-031 www.pentair.com FFL-051 FFL-071 FFL-101 FFL-151 Jonah Shen PLANT MANAGER Suzhou (China), 17/07/2013 PUMPS FREEFLO™ High Performance Pump...
