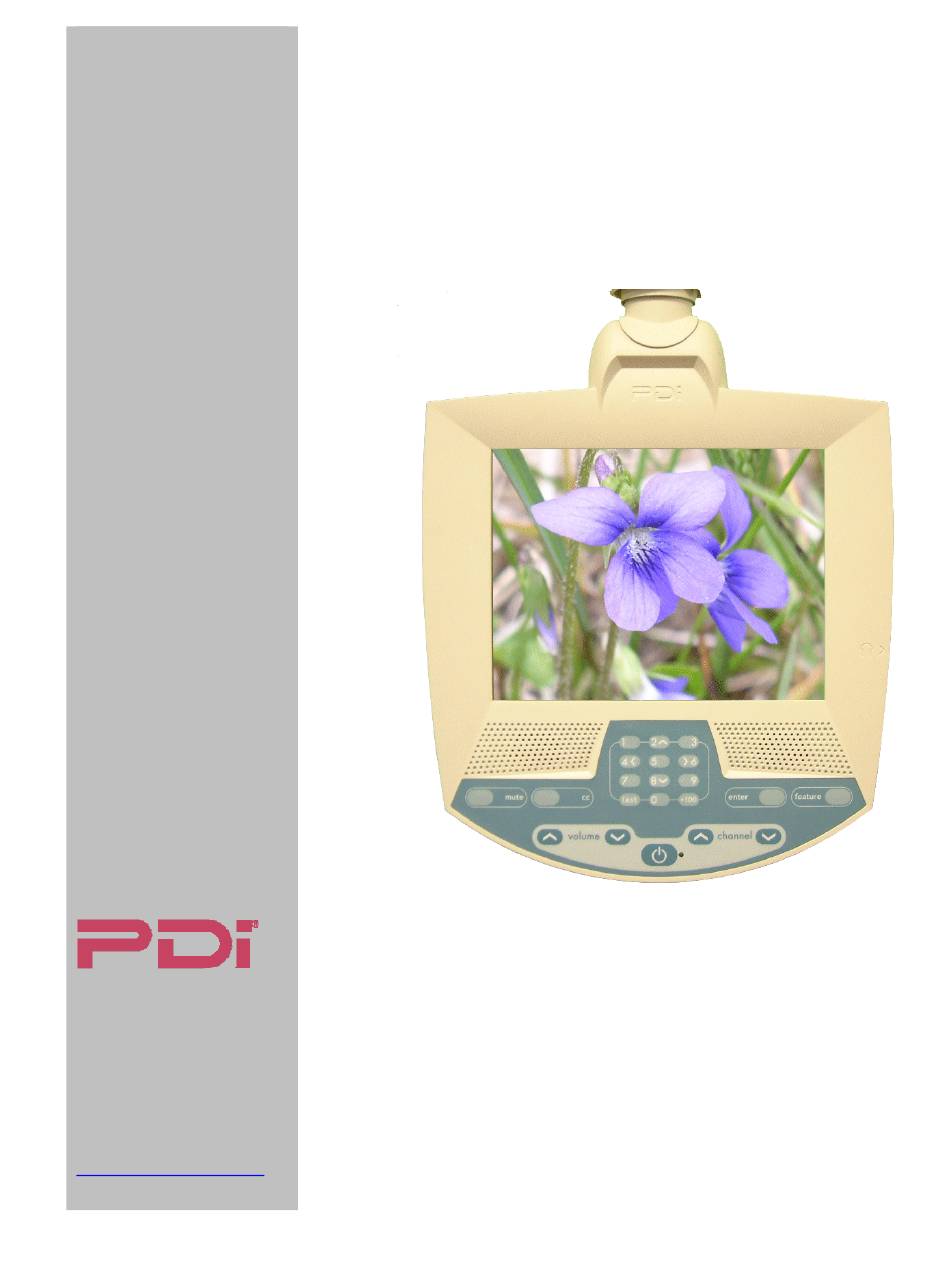

- Page 1 PERSONA Installation Hospital-Grade LCD Operating Television Receiver Instructions MODEL PDI-P10LCDD Communication Systems, Inc 40 Greenwood Lane Springboro, Ohio 45066 PH: 937-743-6010 FX: 937-743-5664 ® Better Solutions Are Within Reach http://www.pdiarm.com DOCUMENT NUMBER PD196-058R4...
-
Page 2: Graphical Symbol
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664... -
Page 3: Copyright, Disclaimer, And Trademarks
Dolby Laboratories. All brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their respective holder. PDI and Better Solutions Are Within Reach are registered trademarks of PDI Communication Systems, Inc., Springboro, Ohio. -
Page 4: Installation Precautions
9. WARNING OXYGEN ENVIRONMENT: Do not use in any oxygen tent or oxygen chamber. Such use may cause a fire hazard. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... -
Page 5: Table Of Contents
Sound ............................. 14 Channels ............................16 Features ............................22 CLONING ............................27 FAQ – Frequently Asked Questions ....................29 APPENDIX A – Installation on Other PDI-508C Arms ..............30 PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... -
Page 6: About The Persona 10
It is also the process of adding and removing channels from the three service levels this TV provides. Please read through this guide carefully, with a PERSONA 10 TV in front of you, as you begin the process of learning how to program these televisions. Also keep the guide handy, so you can refer to it, for future programming changes. -
Page 7: Installing Tv On Suspension Arm
Installing TV on Suspension Arm The PERSONA 10 is designed to attach to a wall mounted suspension arm capable of supporting a television weighing 7 pounds. The single coaxial cable on top of the unit is used to supply either low voltage AC or DC power (range 18 to 32 volts) and the RF signal to the television. - Page 8 PDI-P10LCDD USER MANUAL Document Number PD196-058R4 INSTALLING THE TV TO THE PDI-508C-7 SUSPENSION ARM 1. Remove and save the ¾” Socket Head Cap Screw from the plastic “H” clip. Remove the plastic “H” clip and discard. 2. Remove the two nose cover retainer screws. Raise the metal nose cover and slide the television completely into the arm’s clevis...
-
Page 9: Control Panel
Changes the viewed channel up or down. ENTER Displays channel program information. MUTE Mutes TV audio. Activates or deactivates closed captions. FEATURE Displays program screen mode. NUMBERS Direct channel entry. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... -
Page 10: Earphone Operation
The sound delivered to a connected earphone can be either mono or stereo and is set accordingly in the “Sound” menu. PDI offers two Mono styled earphones; PD108-005C single earphone or the PD108-112 dual ear headset. Additional second party stereo headphones can also be used. -
Page 11: On Screen Menu Tree
2. Press the CH▲ or CH▼ buttons to select a menu item. 3. Enter or Adjust the menu item using the VOL▲ or VOL▼ buttons. 4. Press the SETUP button on the IR remote control to return to the preceding menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066... -
Page 12: Service Levels (Tiers)
Color, Tint or Sharpness. 4. Adjust the picture item using the ▲ ▼ to the desired level. buttons Press the SETUP button to store the picture values. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... - Page 13 3. Press the CH▲ / CH▼ buttons to highlight the Noise Reduction. 4. Use the ▲ ▼ buttons alternate, Enable or Disable. Press the SETUP button to return to the previous menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
-
Page 14: Sound
2. Press the VOL▲ / VOL▼ button determine your preferred maximum volume allowed. 3. Press the SETUP button to return to the preceding menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... - Page 15 Mode menu item. 2. Press select Mono or VOL▲ / VOL▼ to Stereo. 3. Press the SETUP button to return to the preceding menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
-
Page 16: Channels
STD, Cable IRC or Cable HRC. NOTE: Most hospitals use the Cable STD signal style. 4. Now perform Auto Program or Add/Delete Channels to adjust the channels. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664... - Page 17 NOTE: Digital channel auto programming may take longer than 10 minutes to complete. 9. Press the SETUP button to return to normal TV viewing. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664...
- Page 18 10. Press the CH▲ / CH▼ button to select a Digital Channel. 11. Press to alternately Enable or Disable the current Digital Channel from the Service VOL▲ / VOL▼ Level. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664...
- Page 19 Service Level. Press the CH▼ button to exit without making any changes to the selected Service Level. 5. Press the SETUP button to return to the preceding menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664...
- Page 20 TV will power up to the lowest channel in current service level. 1. From the Channels menu, press the CH▲ / CH▼ buttons to select Power on Channel. Press VOL► button to activate. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066...
- Page 21 Channel Memory Override. Disabled = Service Level Channels Only Enabled = Every Channel Available 3. Press the SETUP button to exit. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
-
Page 22: Features
Power On Captions Mode. 4. Press the button to select VOL▲ / VOL▼ Last or Off. 5. Press the SETUP button to return to the preceding menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... - Page 23 Teletext can be displayed in addition to Captions. Teletext is not normally broadcast in the USA. Caption Text Modes should be set to Disabled for televisions operated in the USA. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066...
- Page 24 4. Press the SETUP button to return to the preceding menu. Digital Mode Time Setup The current time will be set automatically from a digital channel signal provided by a broadcasting TV station. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
- Page 25 Cumulative time TV is actually on. Field ON Hours: Cumulative time TV is powered. Field Powered Hours: Firmware Version. F/W VSN: Used for Factory Diagnostics. Factory Code: PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
- Page 26 OSD Language menu. 3. Press the ◄► button to select your desired language. English Francais Espanol 4. Press the SETUP button to exit the main menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
-
Page 27: Cloning
5. A confirmation screen will appear. Press the CH▲ to restore the selected setup file or press / VOL▼ to exit without restoring. A progress screen will appear as the settings are restored. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066... - Page 28 6. Once complete, the TV will turn Off and then back On automatically. 7. Remove the USB thumb drive. 8. Verify correct programming of the TV. 9. Close the Arm’s Nose Cover and fasten with provided screws. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
-
Page 29: Faq - Frequently Asked Questions
Q. Our hospital has a “Welcome Channel”. How do I program the TV to start on the “Welcome Channel” every time it is turned ON? A. The PERSONA 10 offers a “Power On Channel” setting for each service level. In the “Channels” menu, set the “Power On Channel”... -
Page 30: Appendix A - Installation On Other Pdi-508C Arms
The suspension arm must be adjusted to the proper weight of the television in order to operate correctly. PDI arm model “PDI-508C-7” is factory adjusted for the proper weight. If this television is installed on a previously existing suspension arm, adjustment of the internal springs may be required. - Page 31 SPRING REAR FRONT SPRINGS SPRINGS REAR BRAKE TENSION BRAKE SPRING SCREWS TENSION SCREWS DO NOT ADJUST ADJUST Brake Tension Screw Detail Arm Adjustment Illustration PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com...
- Page 32 PDI and found by PDI to be defective. As a condition to obtaining warranty service, written notification must be received by PDI within at least ten (10) days after defect is first observed. Repair of said product requires it to be shipped to the PDI factory in Springboro, Ohio.
- Page 33 The information and technical data in this manual is believed accurate, but is not warranted and is subject to change without notice or obligation. ”PDI” and “Better Solutions Are Within Reach” are registered trademarks of PDI Communication Systems, Inc. Copyright © 2004-2008 by PDI Communication Systems, Inc.
