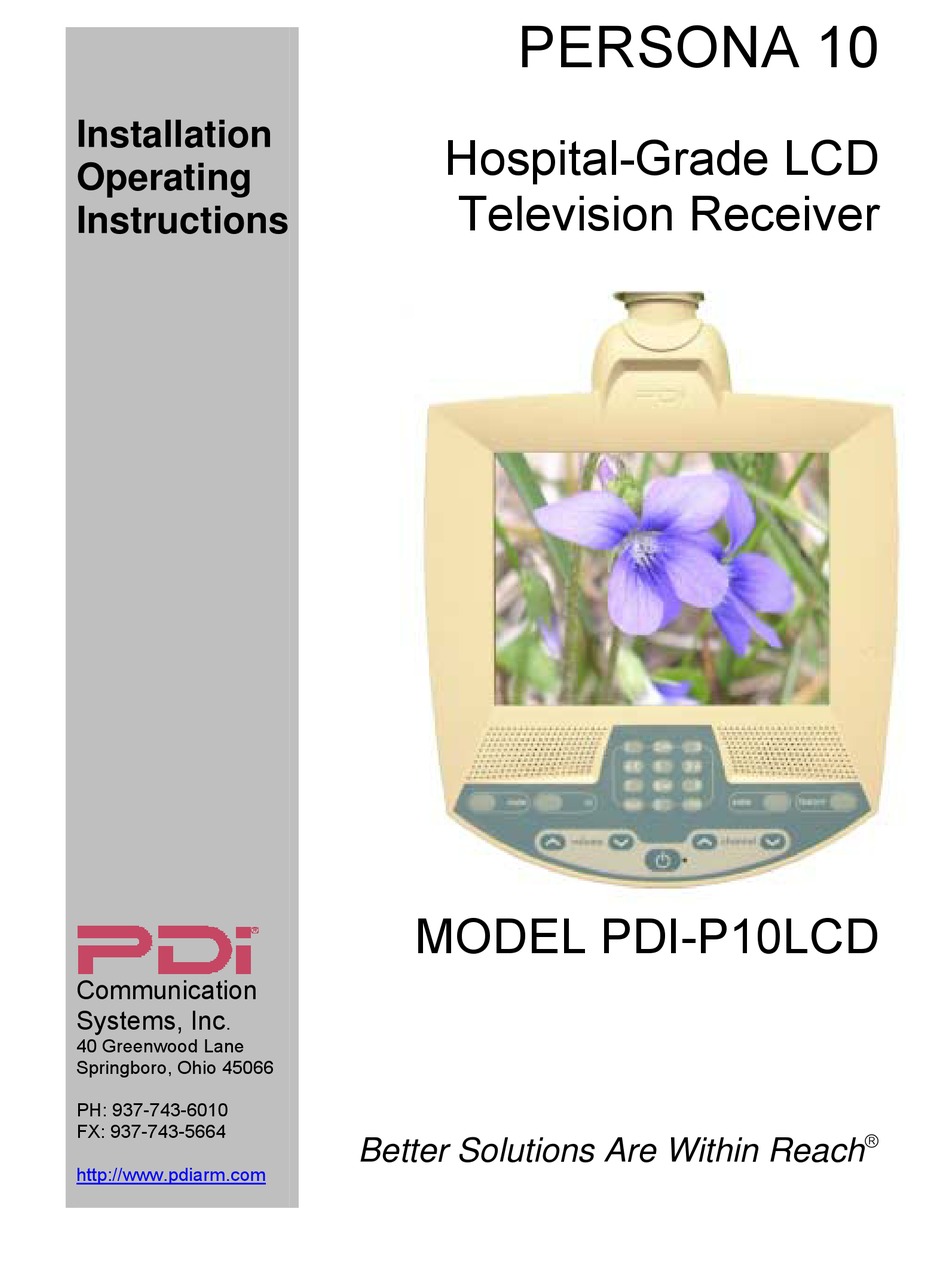

- Page 1 PERSONA 10 Installation Hospital-Grade LCD Operating Television Receiver Instructions MODEL PDI-P10LCD Communication Systems, Inc 40 Greenwood Lane Springboro, Ohio 45066 PH: 937-743-6010 FX: 937-743-5664 â Better Solutions Are Within Reach http://www.pdiarm.com...
-
Page 2: Graphical Symbols
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... - Page 3 To avoid damage to the surface of the television, test a small portion of the TV’s cabinet with any new disinfectant to verify that the disinfectant will not discolor or soften the enclosure. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066...
-
Page 4: Table Of Contents
Document Number PD196-058 R1 Contents Graphical Symbols…………………………………………………………2 Important Safety Instructions……………………………………………..2 Contents…………………………………………………………………….4 About the PERSONA 10 ……………………………………………….5 Installing TV on Suspension Arm………………………………………...6 Control Panel……………………………………………………………….7 Earphone Operation……………………………………………………….8 Remote Control…………………………………………………………….8 Service Levels (Tiers)…………………………………………………..…9 Channel Setup……………………………………………………………10 Add / Delete Channels…………………………………………………..10 Clear Service Level………………………………………………………11 Copy Service Level………………………………………………………11 Power-on Channel and Speaker………………………………………..11... -
Page 5: About The Persona 10
PERSONA 10 television. It is also the process of adding and removing channels from the three service levels this TV provides. Please read through this guide carefully, with a PERSONA 10 TV in front of you, as you begin the process of learning how to program these televisions. Also keep the guide handy, so you can refer to it, for future programming changes. -
Page 6: Installing Tv On Suspension Arm
Document Number PD196-058 R1 Installing TV on Suspension Arm The PERSONA 10 TV is designed to mount on a wall mounted suspension arm This TV can be operated from capable of supporting a TV weighing approximately 8 pounds. The coaxial cable... -
Page 7: Control Panel
On the top of the membrane control panel, 4 cursor arrow controls located in the numbered keypad that are available for computer control applications. They are disabled on the standard PERSONA 10. Pressing the cursor buttons will have NO control over the onscreen display or any TV function. -
Page 8: Earphone Operation
Contact PDI for either PD108-112 Headset earphone or mono style headsets. Remote Control The PERSONA 10 requires a remote control part number PD108-412 to program the set. You will NOT find a remote control packed with the television. The remote control is shipped separate from the television. -
Page 9: Service Levels (Tiers)
Document Number PD196-058 R1 Service Levels (Tiers) The PERSONA 10 contains four separate service levels (tiers) allowing the hospital to offer either basic or enhanced viewing. The current service level can be quickly determined by viewing the LED indicators lamps located on the lower part of the back cabinet of the set. The... -
Page 10: Channel Setup
Use the Volume ▲/▼ to Add or Delete on the remote’s a channel. Once the service level is programmed, press keypad. “SETUP” to exit the menu. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664... -
Page 11: Clear Service Level
Speaker – The internal television speaker may be turned OFF if 0-9 : Adjust Channel (0 for Last) headphone only service is required. Volume▲/▼ : Adjust Speaker PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664... -
Page 12: Volume Limiter
Language: English French languages. All on-screen User and Setup menus will change to the selected language. Channel ▲/▼ to select Volume ▲/▼ to change PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... -
Page 13: Picture
Using the “VOL▼” or “VOL▲” buttons to adjust the parameter for best picture. After adjustment , press the “SETUP” button to return and select another parameter. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066... -
Page 14: Rental Operation
1. Press the “SETUP” button on the remote. The “SETUP MODE” menu will appear. GREEN LED Lamp ON 2. Using the “CH▲” or “CH▼” buttons on the remote and select “PAID”. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664... -
Page 15: Self Rent
"Free" service level rather than automatically changing to the Basic" level. In order for the patient to gain access to "Basic" or "Premium" service levels, the attendant must manually activate the desired level. PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Phone 937-743-6010 Fax 937-743-5664 email: pdi@pdiarm.com... -
Page 16: Faq - Frequently Asked Questions
Q. Our hospital has a “Welcome Channel”. How do I program the TV to start on the “Welcome Channel” every time it is turned ON? A. The PERSONA 10 offers a “Power On Channel” setting for each service level. Use the “Power On Channel – Speaker” menu and set the Power On Channel to the hospital Welcome channel number. -
Page 17: Model Pdi-P10Lcd Limited Warranty
(10) days after defect is first observed. Repair of said product requires it to be shipped to the PDI factory in Springboro, Ohio. All shipments shall be F.O.B. Springboro, Ohio, and all shipping and freight charges to PDI’s factory shall be paid by the customer.
