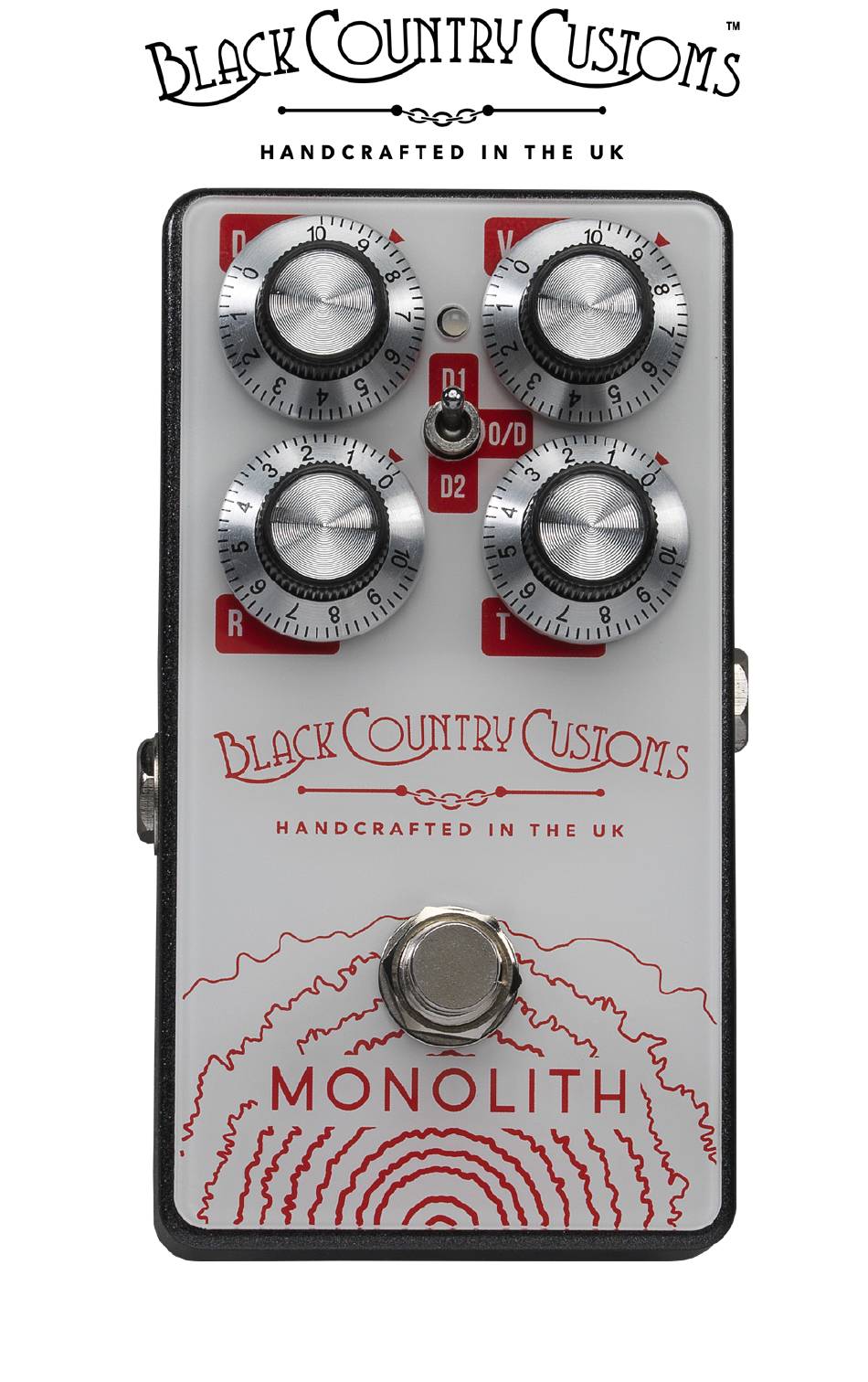

- Page 1 BCC- MONOLITH MANUAL...
- Page 2 INTRODUCTION The Black Country Customs range of guitar pedals are born out of the desire to achieve the best guitar tone possible. The result of hours of dedicated testing and listening, each Black Country Customs pedal is built using the highest quality components and engineered to last a lifetime on your board.
- Page 3 FEATURES Each of the BCC pedals have been designed to incorporate features that really matter :- • Transparent fully buffered operation at all times. • Super high output drive provides an excellent interface between bass guitar and effects pedals/amp. • Much reduced cable loss. •...
- Page 4 CONTROLS...
- Page 5 CONTROLS DISTORTION Sets the amount of Distortion and sustain avail- able. The MONOLITH is dynamic and expressive and responds to your pick attack. As you dial in more gain you get more compression and sustain. RANGE Adjusts the low-end content before distortion is added to the signal.
- Page 6 CONTROLS...
- Page 7 CONTROLS MODE The MONOLITH can be configured to run in 1 of 3 modes available Mode D1 - Orange LED Heavily compressed distortion, smooth sounding without loss of definition. For players who like a more compressed sound. Mode D2 - Blue LED A soft compressed distortion.
- Page 8 CONTROLS...
- Page 9 CONTROLS TONE Adjusts the overall tonal response of the pedal from smooth and warm all the way to bright and cutting lead tones. FOOTSWITCH Engages the MONOLITH.
-
Page 10: Operation
OPERATION Install a good quality 9V battery into the pedal by unscrewing the base of the pedal and fitting the battery securely to the battery connector and then replace the base of the pedal. Do not use excessive force to tighten up the 4 base plate screws as this could damage the screws. -
Page 11: Specifications
SPECIFICATIONS Model : Boost FX Type : Distortion Input Impedance : 1MΩ Output Impedance : 100Ω Recommended Minimum Load Impedance : 10KΩ Power Supply : Regulated 9V DC PSU (Not In- cluded), centre negative, 2.1x10mm connector type Internal 9V PP3 battery included (alkaline recommended) Current Consumption : 10mA Battery Life : 30 hours –... - Page 12 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user’s authority to use the equipment.
- Page 13 NOTES...
