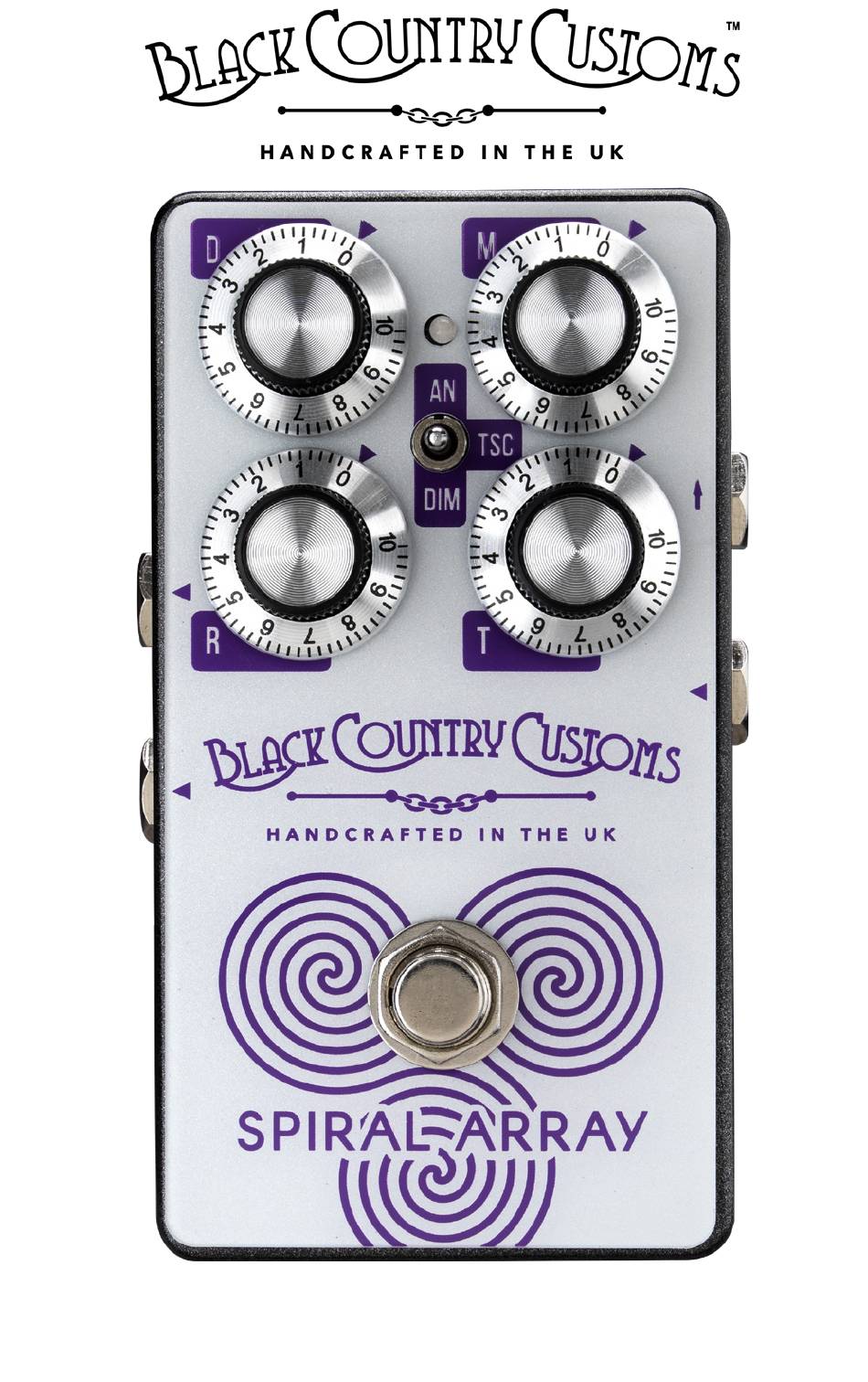

- Page 2 What is the SPIRAL ARRAY The Spiral Array – it’s a Chorus pedal with a difference it is actually three distinctly different chorus pedals in one box. THE SPIRAL ARRAY houses 3 classic chorus sounds, derived from the classic era of Chorus the mid 70’s to...
- Page 3 The following pages will give you an insight into how the controls on THE SPIRAL ARRAY work and interact with each other.
- Page 4 CONTROLS...
- Page 5 Adjusts the amount of the wet signal present when compared to the dry unaffected signal. MODE. The SPIRAL ARRAY can be configured to run in 1 of 3 modes available AN-Mode - Orange LED A thick, lush sounding analog chorus, based around the classic analog sounding chorus of the mid 70’s.
- Page 6 CONTROLS...
- Page 7 CONTROLS MODE cont. DIM-MODE - BLUE LED A “spatial” digital chorus designed to emulate the new breed of digital chorus pedals of the late 70’s and early 80’s. Two chorus modules are run 180 degrees out of phase giving a wide, spatially enhanced chorus.
- Page 8 CONTROLS...
-
Page 9: Expression Pedal Input
EXP input and set the expression pedal up accordingly. The expression pedal will now sweep the mix control from zero to whatever the value is set to on the SPIRAL ARRAY when the EXP pedal is pressed from heal to toe. - Page 10 CONTROLS...
-
Page 11: Right Out
CONTROLS RIGHT OUT When running in stereo mode connect this output to the right hand amplifier or right hand signal path. LEFT(MONO) OUT When using a mono set up - use this socket to connect to your amplifier. When using a stereo set-up, use this output to connect to the left hand amplifier or signal path. -
Page 12: Specifications
SPECIFICATIONS Model : Spiral Array FX Type : Chorus engine Input Impedance : 1MΩ Output Impedance : 100Ω Recommended Minimum Load Impedance : 10KΩ Expression Pedal : Recommended pedal impedance 10KΩ, wired tip wiper ring top Power Supply : Regulated 9V DC PSU (Not Included), centre negative, 2.1x10mm connector type Internal... - Page 13 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user’s authority to use the equipment.
